SPECjbb2013
Copyright © 2012-2014 Standard Performance Evaluation Corporation
NEC Corporation Express5800/A2040b CODE DEFECT (CD) RESULT
Tested by: NEC Corporation Test Sponsor: NEC Corporation Test location: Fuchu, Tokyo, Japan Test date: Feb 03, 2014
SPEC license #: 9006 Hardware Availability: Mar-2014 Software Availability: Jan-2014 Publication: Feb 19, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

SPECjbb2013-Composite: Single JVM/Single Host
(# of groups: 1)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorNEC Corporation
Vendor URLhttp://www.nec.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores60
Total Threads120
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameExpress5800/A2040b
VendorNEC Corporation
Vendor URLhttp://www.nec.com/
AvailableMar-2014
ModelExpress5800/A2040b
Form Factor4U
CPU NameIntel Xeon E7-4890 v2
CPU Characteristics15-Core, 2.80GHz, 37.5MB L3 Cache (Intel Turbo Boost Technology up to 3.40 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System60
Cores Per Chip15
Threads Per System120
Threads Per Core2
VersionNone
CPU Frequency (MHz)2800
Primary Cache32KB(I)+32KB(D) on chip per core
Secondary Cache256KB(I+D) on chip per core
Tertiary Cache37.5MB(I+D) on chip per chip
Other CacheNone
Disk1 x 450GB 10K RPM SAS
File Systemext4
Memory Amount (GB)1024
# and size of DIMM(s)32 x 32768MB
Memory Details4Rx4 PC3L-12800L ECC CL11; slots DIMM#1-DIMM#4 populated on each MR(Memory Riser)
# and type of Network Interface Cards (NICs)2 x 10 Gbit NICs
Power Supply Quantity and Rating (W)4 x 1200
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat, Inc.
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 6.4 (Santiago)
AvailableFeb-2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 7u51
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.7.0_51
AvailableJan-2014
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Memory RAS Mode was set to Independent in BIOS.
  • Patrol Scrub was disabled in BIOS.
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xmx960g -Xms960g -Xmn900g -XX:+UseParallelOldGC -XX:ParallelGCThreads=120 -XX:-UseBiasedLocking -jar specjbb2013.jar -m COMPOSITE
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 96542 97591 98641 99690 100740
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 40092 50969 55213 63711 74747 55724
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1049 - / 1049 - / 1049 - / 1049 - / 1049 - / 1049
1000us 49320 / 1049 - / 1049 - / 1049 - / 1049 - / 1049 - / 1049
5000us 91295 / 92345 79752 / 77653 39876 / 38827 30432 / 31481 18889 / 16790 2099 / 3148
10000us 91295 / 92345 84999 / 86048 60863 / 61913 54567 / 55617 46172 / 16790 18889 / 6296
20000us 92345 / 93394 89196 / 88147 79752 / 80801 72407 / 73456 62962 / 41975 49320 / 6296
50000us 92345 / 93394 89196 / 90246 81851 / 82900 79752 / 78703 62962 / 41975 62962 / 12592
100000us 93394 / 94443 91295 / 90246 84999 / 86048 80801 / 81851 62962 / 50370 62962 / 12592
200000us 93394 / 94443 91295 / 92345 86048 / 87098 82900 / 83950 68209 / 61913 62962 / 12592
500000us 93394 / 94443 92345 / 93394 88147 / 89196 86048 / 87098 77653 / 65061 69258 / 55617
1000000us 94443 / 95493 93394 / 94443 92345 / 93394 92345 / 93394 89196 / 87098 84999 / 78703

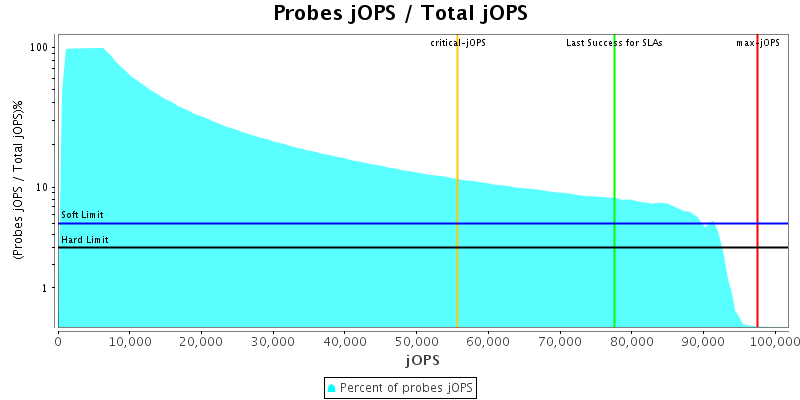

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
User did not set any property for this run
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 104937 IR
High-bound (settled) is 101640 IR
