NEC Corporation Express5800/A2040b CODE DEFECT (CD) RESULT
Tested by: NEC Corporation Test Sponsor: NEC Corporation Test location: Fuchu, Tokyo, Japan Test date: Feb 05, 2014
SPEC license #: 9006 Hardware Availability: Mar-2014 Software Availability: Jan-2014 Publication: Feb 19, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorNEC Corporation
Vendor URLhttp://www.nec.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores60
Total Threads120
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameExpress5800/A2040b
VendorNEC Corporation
Vendor URLhttp://www.nec.com/
AvailableMar-2014
ModelExpress5800/A2040b
Form Factor4U
CPU NameIntel Xeon E7-4890 v2
CPU Characteristics15-Core, 2.80GHz, 37.5MB L3 Cache (Intel Turbo Boost Technology up to 3.40 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System60
Cores Per Chip15
Threads Per System120
Threads Per Core2
VersionNone
CPU Frequency (MHz)2800
Primary Cache32KB(I)+32KB(D) on chip per core
Secondary Cache256KB(I+D) on chip per core
Tertiary Cache37.5MB(I+D) on chip per chip
Other CacheNone
Disk1 x 450GB 10K RPM SAS
File Systemext4
Memory Amount (GB)1024
# and size of DIMM(s)32 x 32768MB
Memory Details4Rx4 PC3L-12800L ECC CL11; slots DIMM#1-DIMM#4 populated on each MR(Memory Riser)
# and type of Network Interface Cards (NICs)2 x 10 Gbit NICs
Power Supply Quantity and Rating (W)4 x 1200
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat, Inc.
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 6.4 (Santiago)
AvailableFeb-2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 7u51
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.7.0_51
AvailableJan-2014
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Memory RAS Mode was set to Independent in BIOS.
  • Patrol Scrub was disabled in BIOS.
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -jar specjbb2013.jar -m MULTICONTROLLER
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xmx240G -Xms240G -Xmn220G -XX:+UseParallelOldGC -XX:ParallelGCThreads=28 -XX:-UseBiasedLocking -jar specjbb2013.jar -m BACKEND -G=$GROUPID -J=$JVMID
Tuning numactl --cpunodebind=[0,1,2,3] --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx6G -Xms6G -Xmn5G -XX:+UseParallelOldGC -XX:ParallelGCThreads=2 -jar specjbb2013.jar -m TXINJECTOR -G=$GROUPID -J=$JVMID
Tuning numactl --cpunodebind=[0,1,2,3] --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 119050 120303 121557 122810 124063
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 23601 64050 74526 85443 99626 62569
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1253 - / 1253 - / 1253 - / 1253 - / 1253 - / 1253
1000us - / 1253 - / 1253 - / 1253 - / 1253 - / 1253 - / 1253
5000us 97746 / 99000 53886 / 52633 10025 / 11278 8772 / 10025 5013 / 6266 - / 1253
10000us 100253 / 101506 92734 / 93987 56392 / 52633 48873 / 45114 28823 / 22557 - / 1253
20000us 101506 / 102759 97746 / 99000 87721 / 88974 83962 / 82709 57645 / 45114 2506 / 1253
50000us 101506 / 102759 99000 / 100253 92734 / 93987 90228 / 88974 66417 / 45114 35088 / 7519
100000us 102759 / 104012 99000 / 100253 95240 / 96493 92734 / 93987 83962 / 63911 38848 / 7519
200000us 106519 / 107772 101506 / 102759 99000 / 100253 96493 / 97746 90228 / 63911 38848 / 7519
500000us 110278 / 111531 106519 / 107772 102759 / 104012 101506 / 102759 99000 / 100253 95240 / 45114
1000000us 112784 / 114038 111531 / 112784 109025 / 110278 109025 / 110278 106519 / 107772 101506 / 102759
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

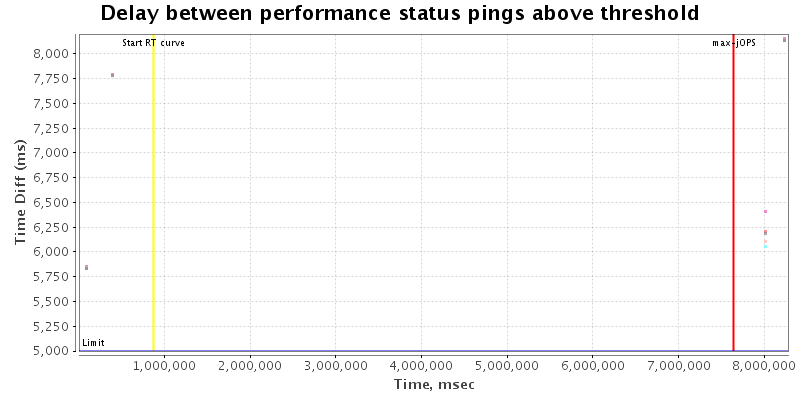

Delay between status pings

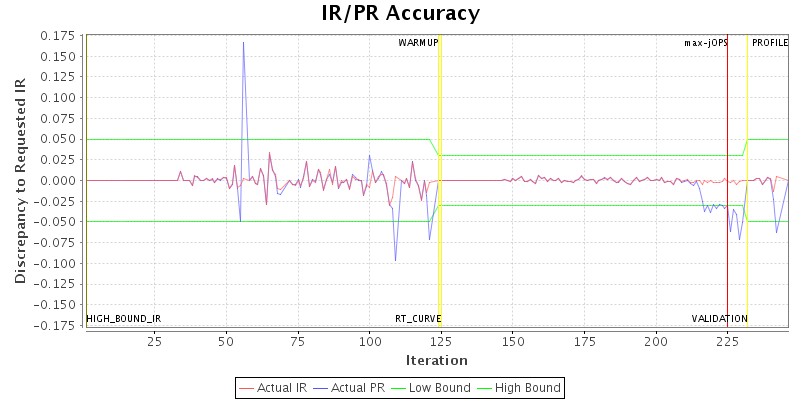

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 120 60
specjbb.group.count 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 125316 IR
High-bound (settled) is 117685 IR
