SPECjbb2013
Copyright © 2012-2014 Standard Performance Evaluation Corporation
Sugon I980-G10 CODE DEFECT (CD) RESULT
Tested by: Sugon Test Sponsor: Sugon Test location: Beijing,CHN Test date: Jan,18,2014
SPEC license #: 9046 Hardware Availability: Mar-2014 Software Availability: Jan-2014 Publication: Mar 19, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

SPECjbb2013-MultiJVM: Multiple JVMs/Single Host
(# of groups: 8)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorSugon
Vendor URLhttp://www.sugon.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips8
Total Cores120
Total Threads240
Total Memory Amount (GB)2048
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameSugon I980-G10
VendorSugon
Vendor URLhttp://www.sugon.com/
AvailableMar-2014
ModelSugon I980-G10
Form Factor8U
CPU NameIntel Xeon E7-8890 V2
CPU Characteristics15Core, 2.80GHz,(Turbo Boost Technology up to 3.20 GHz)
Number of Systems1
Nodes Per System1
Chips Per System8
Cores Per System120
Cores Per Chip15
Threads Per System240
Threads Per Core30
VersionNone
CPU Frequency (MHz)2800
Primary Cache64KB*15
Secondary Cache256KB*15
Tertiary Cache38400KB
Other CacheNone
Disk1x 300GB 10K RPM
File Systemext3
Memory Amount (GB)2T
# and size of DIMM(s)128 x 16GB
Memory Details1333 ECC DDR3
# and type of Network Interface Cards (NICs)4x 1Gbit NICs
Power Supply Quantity and Rating (W)4 x 256watts
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
Bitnessn/a
NotesNone
Operating System os_1
NameSUSE linux Enterprise 11 Server Pack 2
VendorSUSE
Vendor URLhttp://www.suse.com/
Version3.0.13-0.27-default
AvailableFeb-2012
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 7u51
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM)64-bit Server VM on Linux,version 1.7.0_51
AvailableJan-2014
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning tuning
Notes notes
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • ulimit -n 65536
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx8g -Xms8g -Xmn7g
Tuning taskset -cp 134,149,164,179,194,209,224,239 controller_pid
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xmx220G -Xms220G -Xmn200G -XX:+UseParallelOldGC -XX:ParallelGCThreads=28 -XX:-UseBiasedLocking
Tuning set each Backend JVM bind to one node.
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx8g -Xms8g -Xmn6g -XX:+UseParallelOldGC -XX:ParallelGCThreads=2
Tuning set each TI JVM bind to one node.
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 212674 214961 217248 219535 221822
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 8003 8003 14864 46716 146564 23058
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 2287 - / 2287 - / 2287 - / 2287 - / 2287 - / 2287
1000us - / 2287 - / 2287 - / 2287 - / 2287 - / 2287 - / 2287
5000us 9147 / 11434 9147 / 11434 6860 / 9147 6860 / 9147 4574 / 6860 - / 2287
10000us 160077 / 11434 9147 / 11434 6860 / 9147 6860 / 9147 6860 / 9147 - / 2287
20000us 164651 / 166938 9147 / 11434 6860 / 9147 6860 / 9147 6860 / 9147 - / 2287
50000us 171511 / 173798 150930 / 153217 32015 / 34302 16008 / 18295 6860 / 9147 4574 / 6860
100000us 176085 / 178372 162364 / 164651 64031 / 52597 45736 / 34302 13721 / 16008 6860 / 9147
200000us 194380 / 189806 171511 / 173798 155504 / 153217 141783 / 52597 66318 / 20581 6860 / 9147
500000us 201240 / 203527 192093 / 194380 176085 / 178372 171511 / 173798 157791 / 34302 57170 / 11434
1000000us 208101 / 205814 201240 / 203527 187519 / 189806 187519 / 189806 178372 / 180659 139496 / 20581

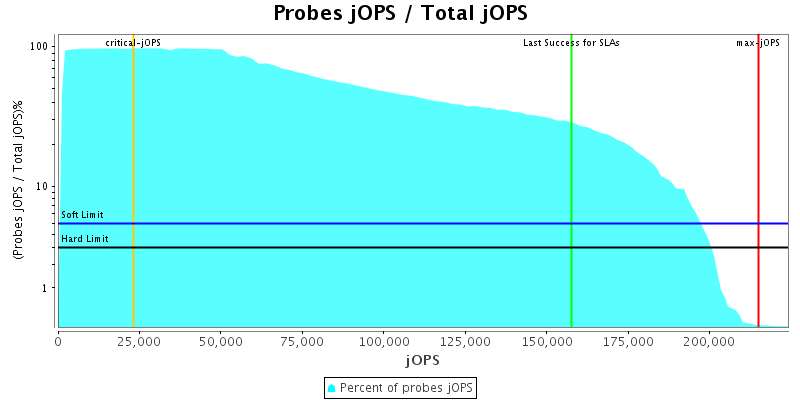

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

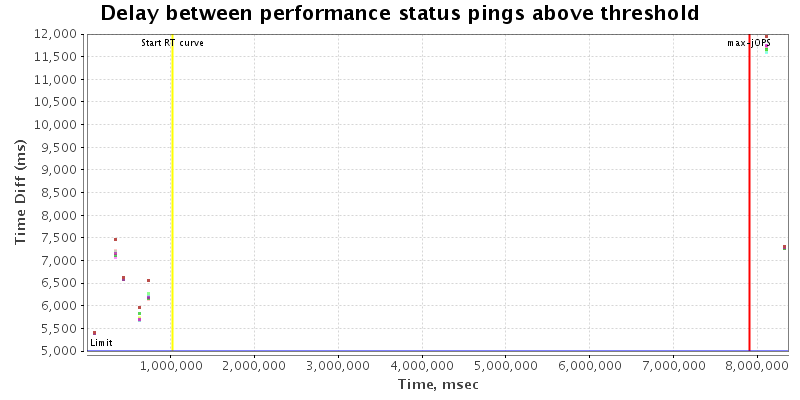

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

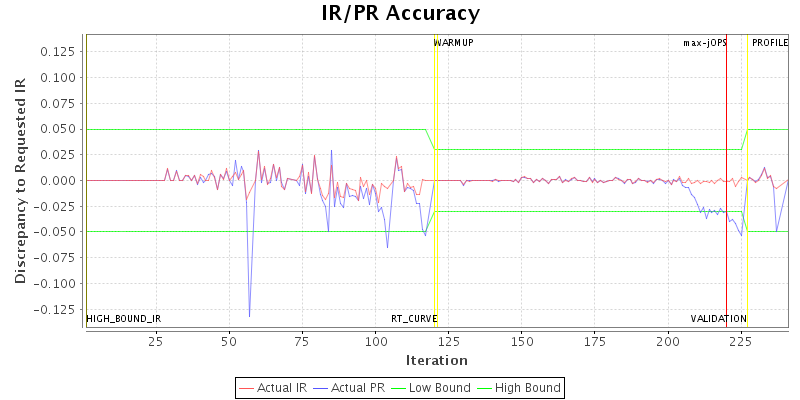

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.group.count 1 8
specjbb.mapreducer.pool.size 240 30
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 228682 IR
High-bound (settled) is 216259 IR
