SPECjbb2013
Copyright © 2012-2014 Standard Performance Evaluation Corporation
NEC Corporation Express5800/A2040b CODE DEFECT (CD) RESULT
Tested by: NEC Corporation Test Sponsor: NEC Corporation Test location: Fuchu, Tokyo, Japan Test date: Feb 12, 2014
SPEC license #: 9006 Hardware Availability: Mar-2014 Software Availability: Mar-2014 Publication: Mar 06, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

SPECjbb2013-MultiJVM: Multiple JVMs/Single Host
(# of groups: 4)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorNEC Corporation
Vendor URLhttp://www.nec.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores60
Total Threads120
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameExpress5800/A2040b
VendorNEC Corporation
Vendor URLhttp://www.nec.com/
AvailableMar-2014
ModelExpress5800/A2040b
Form Factor4U
CPU NameIntel Xeon E7-4890 v2
CPU Characteristics15-Core, 2.80GHz, 37.5MB L3 Cache (Intel Turbo Boost Technology up to 3.40 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System60
Cores Per Chip15
Threads Per System120
Threads Per Core2
VersionNone
CPU Frequency (MHz)2800
Primary Cache32KB(I)+32KB(D) on chip per core
Secondary Cache256KB(I+D) on chip per core
Tertiary Cache37.5MB(I+D) on chip per chip
Other CacheNone
Disk1 x 450GB 10K RPM SAS
File Systemext4
Memory Amount (GB)1024
# and size of DIMM(s)32 x 32768MB
Memory Details4Rx4 PC3L-12800L ECC CL11; slots DIMM#1-DIMM#4 populated on each MR(Memory Riser)
# and type of Network Interface Cards (NICs)2 x 10 Gbit NICs
Power Supply Quantity and Rating (W)4 x 1200
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat, Inc.
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 6.4 (Santiago)
AvailableFeb-2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0
AvailableMar-2014
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Memory RAS Mode was set to Independent in BIOS.
  • Patrol Scrub was disabled in BIOS.
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -jar specjbb2013.jar -m MULTICONTROLLER
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xmx240G -Xms240G -Xmn220G -XX:+UseParallelOldGC -XX:+UseLargePages -XX:ParallelGCThreads=30 -XX:-UseBiasedLocking -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -jar specjbb2013.jar -m BACKEND -G=$GROUPID -J=$JVMID
Tuning numactl --cpunodebind=[0,1,2,3] --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx6G -Xms6G -Xmn5G -XX:+UseParallelOldGC -jar specjbb2013.jar -m TXINJECTOR -G=$GROUPID -J=$JVMID
Tuning numactl --cpunodebind=[0,1,2,3] --localalloc
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 176061 177753 179446 181139 182832
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 25110 65099 75564 93955 104112 65529
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1693 - / 1693 - / 1693 - / 1693 - / 1693 - / 1693
1000us - / 1693 - / 1693 - / 1693 - / 1693 - / 1693 - / 1693
5000us 101573 / 103266 84644 / 60944 10157 / 11850 8464 / 10157 5079 / 6772 - / 1693
10000us 103266 / 104959 99881 / 101573 67716 / 69408 57558 / 59251 32165 / 23700 - / 1693
20000us 104959 / 106652 101573 / 103266 93109 / 94802 88030 / 89723 62637 / 55865 1693 / 3386
50000us 104959 / 106652 101573 / 103266 96495 / 98188 91416 / 93109 72794 / 55865 32165 / 10157
100000us 106652 / 108345 103266 / 104959 99881 / 101573 94802 / 96495 86337 / 69408 32165 / 10157
200000us 108345 / 110038 104959 / 106652 101573 / 103266 99881 / 101573 93109 / 94802 32165 / 16929
500000us 118502 / 120195 111731 / 113424 106652 / 108345 106652 / 108345 103266 / 104959 84644 / 45708
1000000us 147281 / 140510 126967 / 128660 116809 / 118502 113424 / 115117 110038 / 111731 94802 / 93109

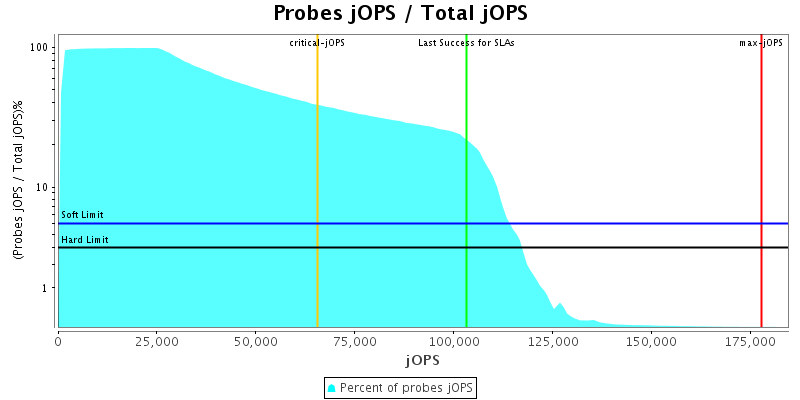

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 120 60
specjbb.group.count 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 169289 IR
High-bound (settled) is 160131 IR
Copyright © 2012-2014 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2013 Version: [SPECjbb2013 1.0, January 22, 2013]
