SPECjbb2013
Copyright © 2012-2014 Standard Performance Evaluation Corporation
Hewlett-Packard Company HP ProLiant DL560 Gen8 CODE DEFECT (CD) RESULT
Tested by: Hewlett-Packard Company Test Sponsor: Hewlett-Packard Company Test location: Houston, TX Test date: Mar 20, 2014
SPEC license #: 3 Hardware Availability: Mar-2014 Software Availability: Mar-2014 Publication: Apr 17, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

SPECjbb2013-MultiJVM: Multiple JVMs/Single Host
(# of groups: 4)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips4
Total Cores48
Total Threads96
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameHP ProLiant DL560 Gen8
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com
AvailableMar-2014
ModelHP ProLiant DL560 Gen8
Form Factor4U
CPU NameIntel Xeon E5-4657L v2
CPU Characteristics12 Core, 2.40 GHz, 30 MB L3 Cache
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System48
Cores Per Chip12
Threads Per System96
Threads Per Core2
VersionP77 02/04/2014
CPU Frequency (MHz)2400
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D per core
Tertiary Cache30 MB I+D on chip per chip
Other CacheNone
Disk3 x 200 GB SAS SSD RAID 0
File SystemEXT3
Memory Amount (GB)1024
# and size of DIMM(s)32 x 32768 MB
Memory Details4Rx4 PC3-14900R-13, ECC
# and type of Network Interface Cards (NICs)1 x HP 331FLR 4 Port 1 Gbit Adapter
Power Supply Quantity and Rating (W)2 x 1200
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server
VendorRed Hat
Vendor URLhttp://www.redhat.com
VersionRed Hat Enterprise Linux Server Release 6.5 (64-bit)
AvailableNov-2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM Version 1.8.0
AvailableMar-2014
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning BIOS Configuration:
  • HP Power Profile = Maximum Performance
  • Collaborative Power Control = Disabled
  • Thermal Configuration = Maximum Cooling
  • Memory Refresh Rate = 1x Refresh
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx2g -Xms2g -Xmn1536m
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xmx240g -Xms240g -Xmn220g -XX:+UseParallelOldGC -XX:+UseLargePages -XX:ParallelGCThreads=30 -XX:-UseBiasedLocking -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --membind=$gnum
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx6g -Xms6g -Xmn5g -XX:+UseParallelOldGC
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 138023 139432 140840 142248 143657
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 27464 38731 42721 48590 57040 41691
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1408 - / 1408 - / 1408 - / 1408 - / 1408 - / 1408
1000us 1408 / 2817 - / 1408 - / 1408 - / 1408 - / 1408 - / 1408
5000us 46477 / 47886 23943 / 25351 15492 / 16901 14084 / 15492 12676 / 11267 - / 1408
10000us 47886 / 49294 45069 / 46477 35210 / 36618 32393 / 33802 26760 / 28168 - / 1408
20000us 49294 / 50702 46477 / 47886 43660 / 45069 43660 / 45069 36618 / 38027 - / 1408
50000us 50702 / 52111 47886 / 49294 46477 / 47886 45069 / 46477 39435 / 38027 25351 / 2817
100000us 59153 / 60561 50702 / 52111 46477 / 47886 46477 / 47886 45069 / 38027 35210 / 2817
200000us 83096 / 81687 54928 / 56336 49294 / 50702 47886 / 49294 47886 / 49294 35210 / 2817
500000us 136615 / 132390 80279 / 81687 64786 / 66195 61970 / 63378 57744 / 56336 46477 / 38027
1000000us 139432 / - 139432 / - 107038 / 108447 102813 / 99996 81687 / 83096 57744 / 56336

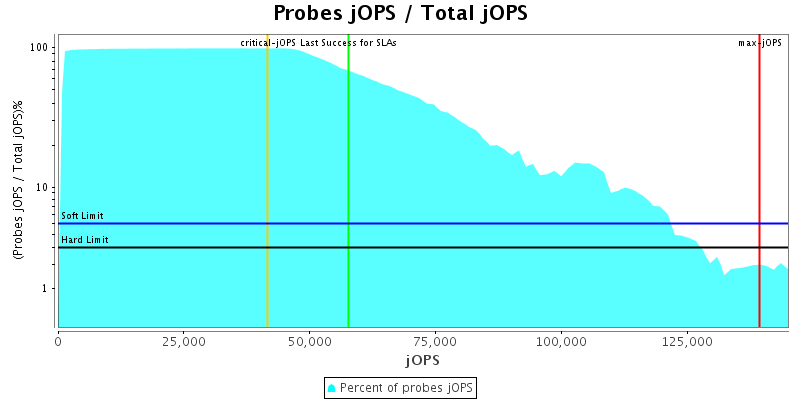

Number of probes
Probes jOPS / Total jOPS

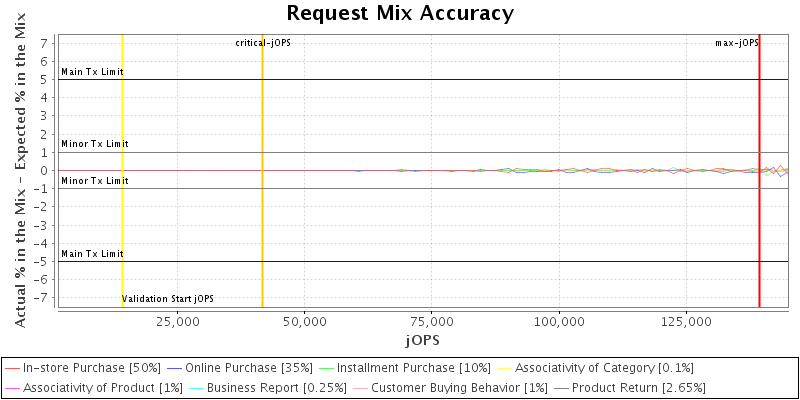

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

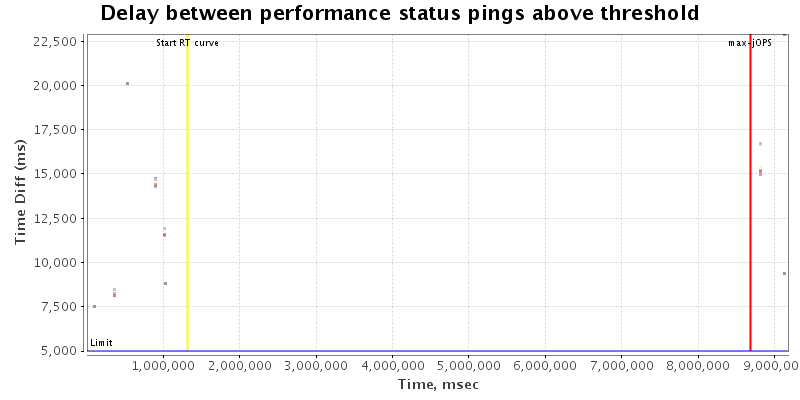

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.customerDriver.threads 64 192
specjbb.forkjoin.workers 96 72
specjbb.group.count 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 140840 IR
High-bound (settled) is 136423 IR
