SPECjbb2013
Copyright © 2012-2014 Standard Performance Evaluation Corporation
IBM Corporation x3750 M4 CODE DEFECT (CD) RESULT
Tested by: IBM Corporation Test Sponsor: IBM Corporation Test location: RTP, NC Test date: May 6, 2014
SPEC license #: 11 Hardware Availability: June-2014 Software Availability: Mar-2014 Publication: May 28, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

SPECjbb2013-MultiJVM: Multiple JVMs/Single Host
(# of groups: 4)

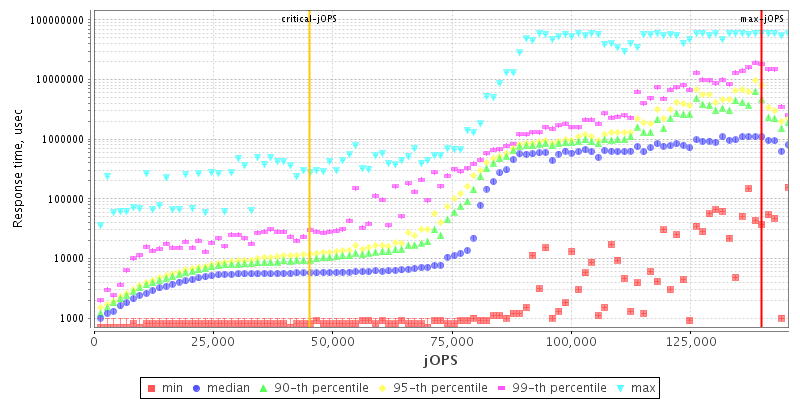

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorIBM Corportaion
Vendor URLhttp://www.ibm.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores48
Total Threads96
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameIBM System x3750 M4
VendorIBM Corporation
Vendor URLhttp://www.ibm.com
AvailableNone
ModelIBM System x3750 M4
Form Factor4U
CPU NameIntel Xeon E5-4657L v2
CPU Characteristics12 core, 2.40GHz, 30MB L3 Cache (Turbo Boost Technology up to 2.90 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System48
Cores Per Chip12
Threads Per System96
Threads Per Core2
VersionNone
CPU Frequency (MHz)2400
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D per core
Tertiary Cache30 MB I+D on chip per chip
Other CacheNone
Disk1 x 300GB SAS 10K RPM
File Systemext4
Memory Amount (GB)1024
# and size of DIMM(s)32 x 32768MB
Memory Details4Rx4 PC3-14900R-13 ECC
# and type of Network Interface Cards (NICs)1 x 2-port 1 Gbit Adapter
Power Supply Quantity and Rating (W)2 x 900
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server Release 6.5 (Santiago)
AvailableNov-2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0
AvailableMar-2014
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode = Max Performance
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning None
Notes
  • SELinux=disable
  • ulimit -n 10000
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line None
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xmx240G -Xms240G -Xmn220G -XX:+UseParallelOldGC -XX:+UseLargePages -XX:ParallelGCThreads=30 -XX:-UseBiasedLocking -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -jar specjbb2013.jar -m BACKEND -G=$GROUPID -J=$JVMID
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx6G -Xms6G -Xmn5G -XX:+UseParallelOldGC -jar specjbb2013.jar -m TXINJECTOR -G=$GROUPID -J=$JVMID
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 138500 139872 141243 142614 143985
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 8913 58280 62394 70621 81591 45108
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1371 - / 1371 - / 1371 - / 1371 - / 1371 - / 1371
1000us 2743 / 4114 1371 / 2743 - / 1371 - / 1371 - / 1371 - / 1371
5000us 79535 / 80906 23312 / 24683 16455 / 17827 13713 / 15084 5485 / 6856 - / 1371
10000us 80906 / 82277 72678 / 74050 46624 / 47995 32911 / 34282 8228 / 9599 - / 1371
20000us 80906 / 82277 78164 / 79535 69936 / 71307 64451 / 65822 42510 / 26055 - / 1371
50000us 82277 / 83649 79535 / 80906 74050 / 75421 72678 / 71307 61708 / 54852 1371 / 2743
100000us 95990 / 85020 80906 / 82277 78164 / 79535 75421 / 76792 69936 / 54852 32911 / 2743
200000us 105589 / 89134 83649 / 85020 79535 / 80906 78164 / 79535 72678 / 68564 32911 / 2743
500000us 134386 / 131644 105589 / 89134 85020 / 86391 83649 / 85020 80906 / 82277 69936 / 53480
1000000us 139872 / - 134386 / 131644 111074 / 112446 105589 / 101475 87763 / 89134 76792 / 78164
Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 96 120
specjbb.group.count 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 137129 IR
High-bound (settled) is 132743 IR
