Hewlett-Packard Company HP ConvergedSystem 900 for SAP HANA (8S/6TB) CODE DEFECT (CD) RESULT
Tested by: Hewlett-Packard Company Test Sponsor: Hewlett-Packard Company Test location: Ft. Collins, CO, USA Test date: May 29, 2014
SPEC license #: 3 Hardware Availability: Sep-2014 Software Availability: Jul-2014 Publication: Jun 25, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

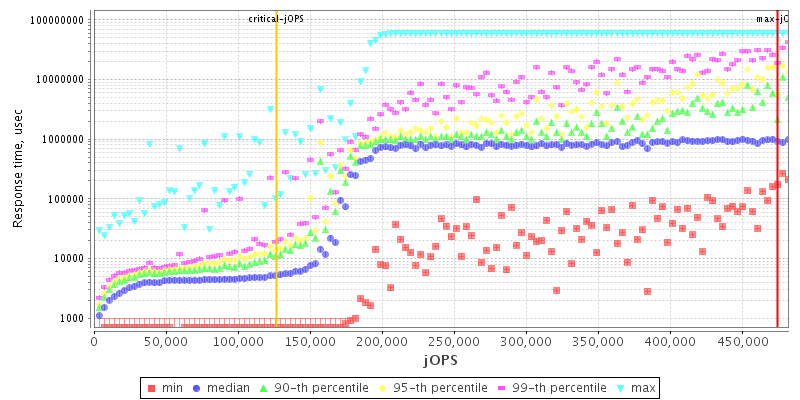

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips8
Total Cores120
Total Threads240
Total Memory Amount (GB)6144
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameHP ConvergedSystem 900
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com
AvailableSep-2014
ModelHP ConvergedSystem 900 for SAP HANA (8S/6TB)
Form Factor42U
CPU NameIntel Xeon E7-2890 v2
CPU Characteristics15 Core, 2.80 GHz, 37.5 MB L3 Cache, Turbo Boost Technology up to 3.40 GHz
Number of Systems1
Nodes Per System1
Chips Per System8
Cores Per System120
Cores Per Chip15
Threads Per System240
Threads Per Core2
VersionP79 02/21/2014
CPU Frequency (MHz)2800
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache37.5 MB I+D on chip per chip
Other CacheNone
Disk8 x C8S59A, 900 GB 10K RPM SAS
File SystemEXT3
Memory Amount (GB)6144
# and size of DIMM(s)192 x 32768 MB
Memory Details192 x 32 GB 4Rx4 PC3-14900L ECC CL13; all slots populated
# and type of Network Interface Cards (NICs)4 x HP 560FLB 2 Port 10 Gb Ethernet Adapter
Power Supply Quantity and Rating (W)12 x 2400
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 11 SP3
VendorSUSE
Vendor URLhttp://www.suse.com
VersionSUSE Linux Enterprise Server 11 SP3 (64-bit) kernel 3.0.101-0.30-bigsmp
AvailableJul-2014
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u5
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM Version 1.8.0_05
AvailableApr-2014
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • Kernel Boot options:
    • intel_idle.max_cstate=0
    • processor.max_cstate=0
  • OS Tuneables:
    • cpupower -c all frequency-set -g performance
    • ulimit -n 65536
    • sysctl -w kernel.sched_latency_ns=16000000
    • sysctl -w kernel.sched_min_granularity_ns=6000000
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx6g -Xms6g -Xmn4g -XX:+UseParallelOldGC -XX:ParallelGCThreads=4 -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl --cpunodebind=6
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -Xmx700g -Xms700g -Xmn640g -XX:LargePageSizeInBytes=2m -XX:ParallelGCThreads=30 -XX:SurvivorRatio=98 -XX:TargetSurvivorRatio=90 -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy -XX:-UseBiasedLocking -XX:+AggressiveOpts -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx6g -Xms6g -Xmn4g -XX:+UseParallelOldGC -XX:ParallelGCThreads=4 -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 467596 471085 474575 478064 481554
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 70488 130174 144524 148055 165752 126617
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 3490 - / 3490 - / 3490 - / 3490 - / 3490 - / 3490
1000us 3490 / 6979 - / 3490 - / 3490 - / 3490 - / 3490 - / 3490
5000us 167497 / 164007 118644 / 122133 27916 / 31406 20937 / 24427 10469 / 13958 - / 3490
10000us 167497 / 170986 153539 / 157028 118644 / 122133 104686 / 101196 73280 / 59322 - / 3490
20000us 174476 / 177966 167497 / 164007 146560 / 150049 143070 / 139581 125623 / 76769 - / 3490
50000us 174476 / 177966 167497 / 170986 160518 / 157028 160518 / 150049 153539 / 76769 80259 / 13958
100000us 177966 / 181455 174476 / 177966 167497 / 157028 167497 / 150049 160518 / 122133 125623 / 38385
200000us 191924 / 195413 174476 / 177966 174476 / 157028 167497 / 157028 167497 / 122133 129112 / 38385
500000us 460617 / 226819 191924 / 195413 181455 / 177966 181455 / 157028 174476 / 157028 167497 / 38385
1000000us 474575 / - 474575 / - 324525 / 212861 195413 / 198903 181455 / 157028 174476 / 90728

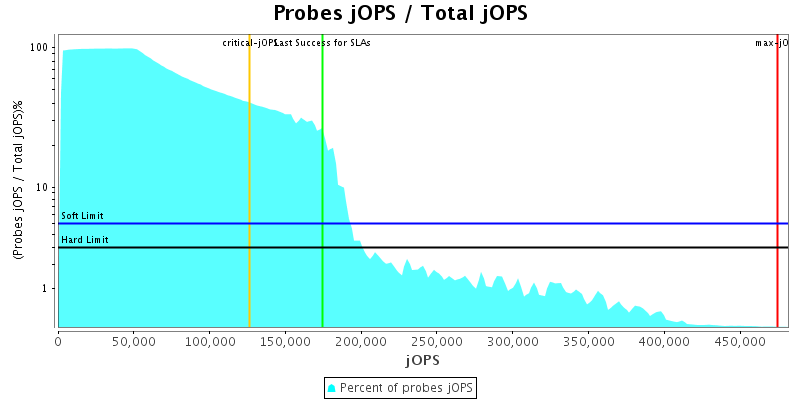

Probes jOPS / Total jOPS

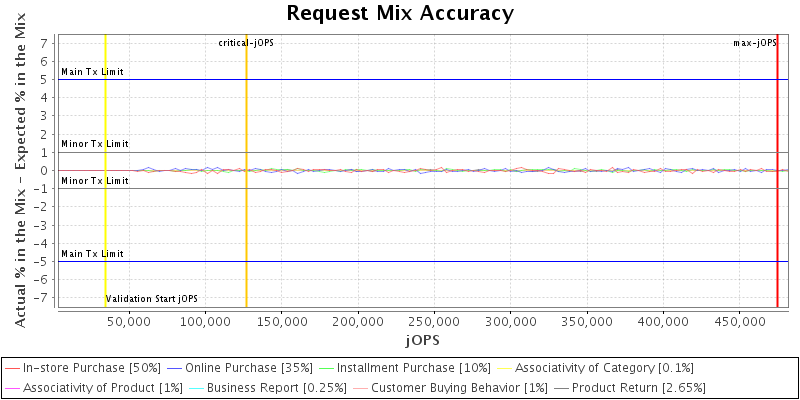

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

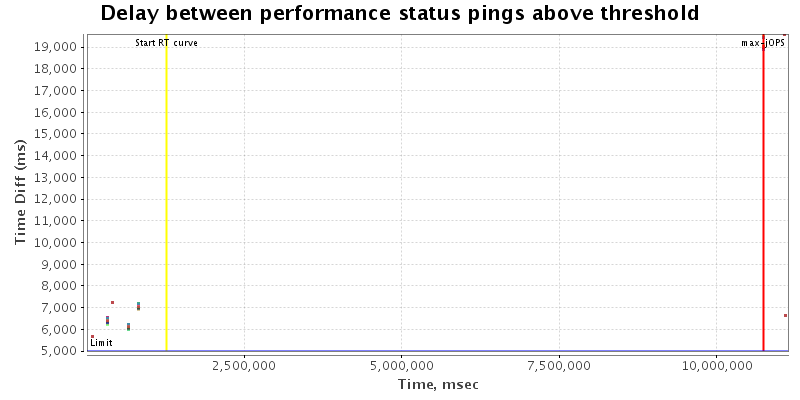

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.connpool.size 256 420
specjbb.comm.connect.pool.max 256 450
specjbb.comm.connect.pool.min 1 1
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.controller.handshake.period 5000 20000
specjbb.controller.handshake.timeout 600000 600000
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.controller.rtcurve.warmup.step 0.1 0.1
specjbb.customerDriver.threads 64 {=64, saturate=192}
specjbb.forkjoin.workers 240 180
specjbb.group.count 1 8
specjbb.heartbeat.period 10000 60000
specjbb.heartbeat.threshold 100000 600000
specjbb.mapreducer.pool.size 240 120
specjbb.run.datafile.dir . .
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 348952 IR
High-bound (settled) is 317302 IR
