Hewlett-Packard Company HP ProLiant DL580 Gen8 CODE DEFECT (CD) RESULT
Tested by: Hewlett-Packard Company Test Sponsor: Hewlett-Packard Company Test location: Houston, TX, USA Test date: Jun 3, 2014
SPEC license #: 3 Hardware Availability: Mar-2014 Software Availability: Sep-2014 Publication: Jun 25, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

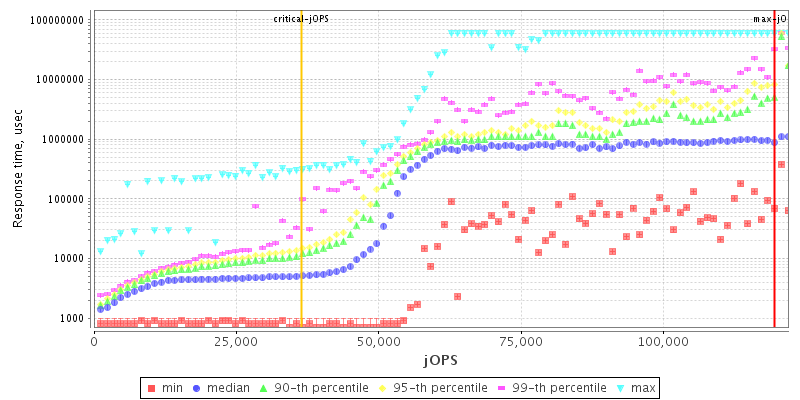

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips2
Total Cores30
Total Threads60
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameHP ProLiant DL580 Gen8
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com
AvailableMar-2014
ModelHP ProLiant DL580 Gen8
Form Factor4U
CPU NameIntel Xeon E7-4890 v2
CPU Characteristics15 Core, 2.80 GHz, 37.5 MB L3 Cache, Turbo Boost up to 3.40 GHz
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System30
Cores Per Chip15
Threads Per System60
Threads Per Core2
VersionP79 03/19/2014
CPU Frequency (MHz)2800
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache37.5 MB I+D on chip per chip
Other CacheNone
Disk1 x 400 GB 10K RPM SAS RAID 0
File SystemEXT4
Memory Amount (GB)512
# and size of DIMM(s)16 x 32768 MB
Memory Details32 GB 4Rx4 PC3L-14900R ECC CL13, slots 1,4,9,12 of each memory board populated
# and type of Network Interface Cards (NICs)1 x HP 331FLR 4 Port 1 Gbit Adapter
Power Supply Quantity and Rating (W)2 x 1200
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server Release 7.0
VendorRed Hat
Vendor URLhttp://www.redhat.com
VersionRed Hat Enterprise Linux Server Release 7.0 (Maipo)-3.10.0-123.el7.x86_64
AvailableJun-2014
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u5
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM Version 1.8.0_05
AvailableApr-2014
Bitness64
NotesOracle JDK 8 was not certified for use with RHEL 7 at the time of this publication.
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning BIOS Configuration:
  • HP Power Profile = Maximum Performance
  • Thermal Configuration = Maximum Cooling
  • Memory Double Refresh Rate = Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning
  • Kernel Boot options:
    • selinux=0
  • OS Tuneables:
    • tuned-adm profile throughput-performance
    • echo 0 > /proc/sys/kernel/numa_balancing
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx4G -Xms4G -Xmn3G -XX:+UseParallelOldGC -XX:ParallelGCThreads=4 -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -Xmx228g -Xms228g -Xmn200g -XX:LargePageSizeInBytes=2m -XX:ParallelGCThreads=30 -XX:SurvivorRatio=23 -XX:TargetSurvivorRatio=90 -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy -XX:-UseBiasedLocking -XX:+AggressiveOpts -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --membind=$gnum
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx4G -Xms4G -Xmn3G -XX:+UseParallelOldGC -XX:ParallelGCThreads=4 -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 117151 118334 119517 120701 121884
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 18341 35763 39642 46742 52658 36411
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1183 - / 1183 - / 1183 - / 1183 - / 1183 - / 1183
1000us - / 1183 - / 1183 - / 1183 - / 1183 - / 1183 - / 1183
5000us 49700 / 50884 35500 / 36684 9467 / 10650 9467 / 10650 8283 / 9467 - / 1183
10000us 50884 / 52067 46150 / 47334 33134 / 31950 24850 / 26033 17750 / 18933 - / 1183
20000us 52067 / 53250 49700 / 50884 43784 / 44967 40234 / 41417 31950 / 28400 21300 / 3550
50000us 53250 / 54434 50884 / 52067 48517 / 49700 44967 / 46150 37867 / 28400 21300 / 5917
100000us 54434 / 55617 52067 / 53250 49700 / 50884 48517 / 47334 40234 / 39050 21300 / 5917
200000us 56800 / 57984 53250 / 54434 52067 / 53250 49700 / 50884 46150 / 47334 21300 / 14200
500000us 118334 / 93484 57984 / 59167 54434 / 55617 53250 / 54434 52067 / 53250 48517 / 47334
1000000us 119517 / - 119517 / - 89934 / 69817 60350 / 61534 57984 / 59167 53250 / 54434
Probes jOPS / Total jOPS

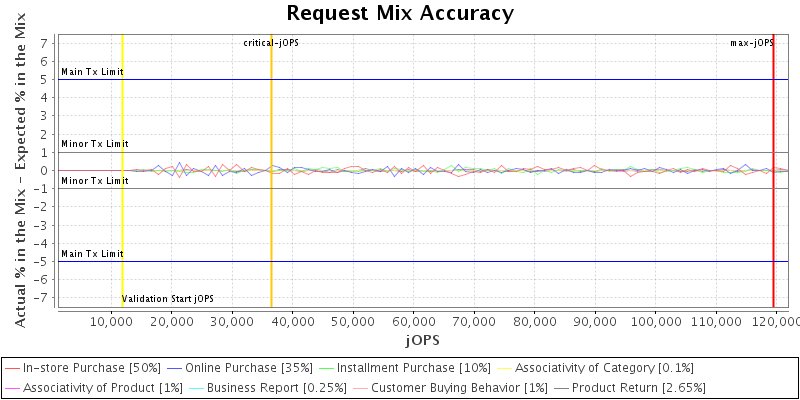

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

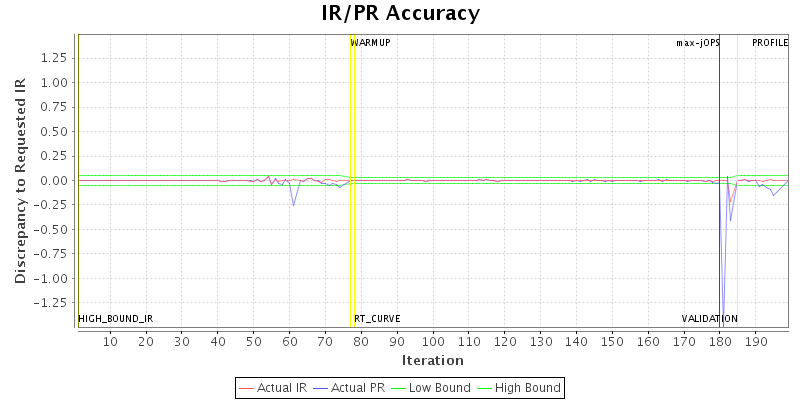

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.timeouts.connect 60000 300000
specjbb.comm.connect.timeouts.read 60000 300000
specjbb.comm.connect.timeouts.write 60000 300000
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.customerDriver.threads 64 64
specjbb.forkjoin.workers 60 140
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 118334 IR
High-bound (settled) is 98645 IR
