Hewlett-Packard Company HP ProLiant DL580 Gen8 CODE DEFECT (CD) RESULT
Tested by: Hewlett-Packard Company Test Sponsor: Hewlett-Packard Company Test location: Houston, TX, USA Test date: May 30, 2014
SPEC license #: 3 Hardware Availability: Mar-2014 Software Availability: Sep-2014 Publication: Jun 25, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips4
Total Cores60
Total Threads120
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameHP ProLiant DL580 Gen8
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com
AvailableMar-2014
ModelHP ProLiant DL580 Gen8
Form Factor4U
CPU NameIntel Xeon E7-4890 v2
CPU Characteristics15 Core, 2.80 GHz, 37.5 MB L3 Cache, Turbo Boost up to 3.40 GHz
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System60
Cores Per Chip15
Threads Per System120
Threads Per Core2
VersionP79 03/19/2014
CPU Frequency (MHz)2800
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache37.5 MB I+D on chip per chip
Other CacheNone
Disk1 x 400 GB 10K RPM SAS RAID 0
File SystemEXT4
Memory Amount (GB)1024
# and size of DIMM(s)32 x 32768 MB
Memory Details32 GB 4Rx4 PC3L-14900R ECC CL13, slots 1,4,9,12 of each memory board populated
# and type of Network Interface Cards (NICs)1 x HP 331FLR 4 Port 1 Gbit Adapter
Power Supply Quantity and Rating (W)2 x 1200
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server Release 7.0
VendorRed Hat
Vendor URLhttp://www.redhat.com
VersionRed Hat Enterprise Linux Server Release 7.0 (Maipo)-3.10.0-123.el7.x86_64
AvailableJun-2014
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u5
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM Version 1.8.0_05
AvailableApr-2014
Bitness64
NotesOracle JDK 8 was not certified for use with RHEL 7 at the time of this publication.
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning BIOS Configuration:
  • HP Power Profile = Maximum Performance
  • Thermal Configuration = Maximum Cooling
  • Memory Double Refresh Rate = Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • Kernel Boot options:
    • selinux=0
  • OS Tuneables:
    • tuned-adm profile throughput-performance
    • echo 0 > /proc/sys/kernel/numa_balancing
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx4G -Xms4G -Xmn3G -XX:+UseParallelOldGC -XX:ParallelGCThreads=4 -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -Xmx150g -Xms150g -Xmn128g -XX:LargePageSizeInBytes=2m -XX:ParallelGCThreads=30 -XX:SurvivorRatio=18 -XX:TargetSurvivorRatio=90 -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy -XX:-UseBiasedLocking -XX:+AggressiveOpts -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --membind=$gnum
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx4G -Xms4G -Xmn3G -XX:+UseParallelOldGC -XX:ParallelGCThreads=4 -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 198155 200459 202763 205068 207372
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 33410 61059 72580 82181 102534 65950
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 2304 - / 2304 - / 2304 - / 2304 - / 2304 - / 2304
1000us - / 2304 - / 2304 - / 2304 - / 2304 - / 2304 - / 2304
5000us 96773 / 99078 46083 / 48387 16129 / 18433 16129 / 18433 11521 / 13825 - / 2304
10000us 99078 / 101382 87557 / 89861 59907 / 62212 43778 / 46083 32258 / 34562 - / 2304
20000us 101382 / 103686 94469 / 96773 82949 / 85253 78340 / 80645 59907 / 39170 4608 / 2304
50000us 101382 / 103686 99078 / 101382 89861 / 92165 87557 / 89861 59907 / 62212 20737 / 9217
100000us 103686 / 105990 101382 / 103686 96773 / 99078 92165 / 94469 71428 / 73732 20737 / 9217
200000us 108294 / 110598 103686 / 105990 99078 / 101382 96773 / 99078 85253 / 80645 20737 / 23041
500000us 182026 / 154377 110598 / 112902 105990 / 108294 105990 / 108294 101382 / 103686 92165 / 73732
1000000us 202763 / - 202763 / - 129031 / 126727 117511 / 115206 110598 / 112902 101382 / 103686

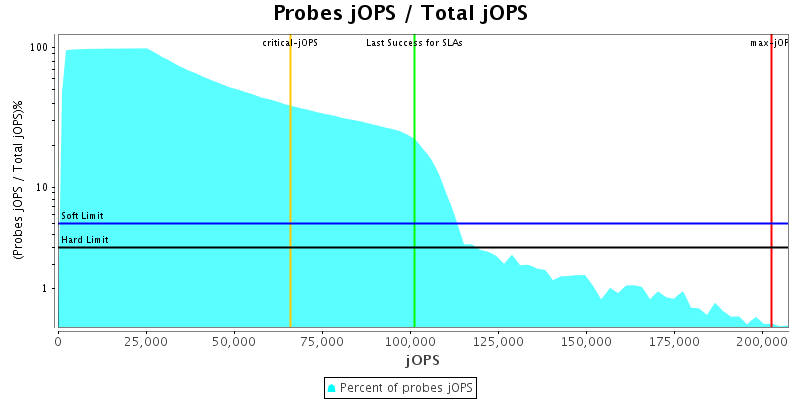

Probes jOPS / Total jOPS

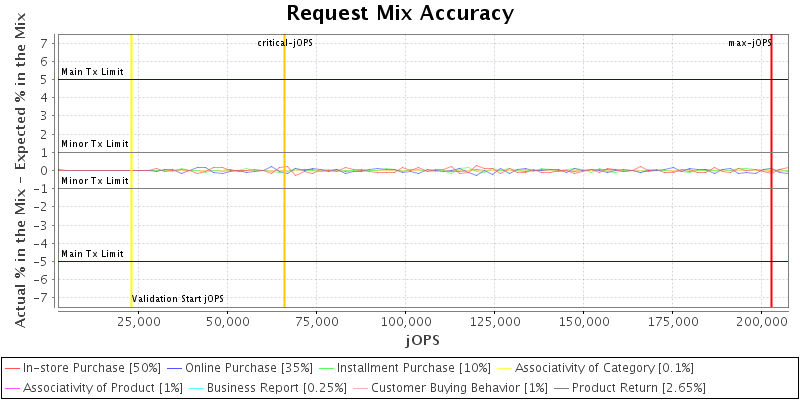

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

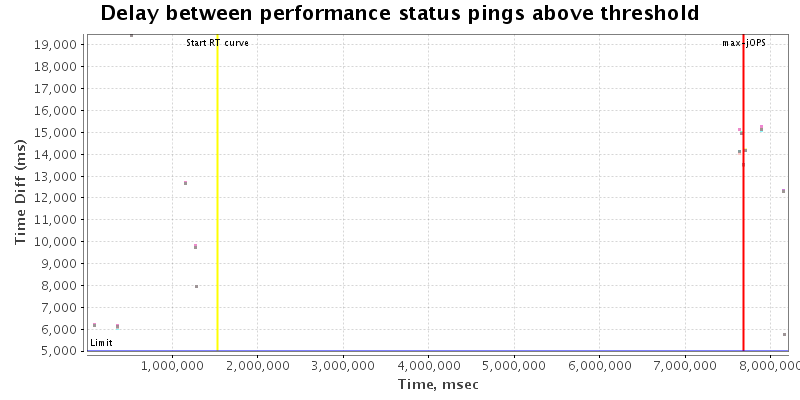

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.timeouts.connect 60000 300000
specjbb.comm.connect.timeouts.read 60000 300000
specjbb.comm.connect.timeouts.write 60000 300000
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.customerDriver.threads 64 64
specjbb.forkjoin.workers 120 140
specjbb.group.count 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 230413 IR
High-bound (settled) is 219423 IR
