SPECjbb2013
Copyright © 2012-2014 Standard Performance Evaluation Corporation
Cisco Systems Cisco UCS B420 M3 CODE DEFECT (CD) RESULT
Tested by: Cisco Systems Test Sponsor: Cisco Systems Test location: San Jose, CA Test date: June 7,2014
SPEC license #: 9019 Hardware Availability: May-2014 Software Availability: Apr-2014 Publication: Jun 25, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

SPECjbb2013-MultiJVM: Multiple JVMs/Single Host
(# of groups: 4)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorCisco Systems
Vendor URLhttp://www.cisco.com
System SourceSingle Supplier
System DesignationBlade Server
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores48
Total Threads96
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameCisco UCS B420 M3
VendorCisco Systems
Vendor URLhttp://www.cisco.com/
AvailableMay-2014
ModelCisco UCS B420 M3
Form Factor1U
CPU NameIntel Xeon E5-4657L v2
CPU Characteristics12-Core, 2.40GHz (Turbo Boost Technology up to 2.90 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System48
Cores Per Chip12
Threads Per System96
Threads Per Core2
VersionNone
CPU Frequency (MHz)2400
Primary Cache32 KB(I)+32 KB(D) on chip per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache30 MB (I+D) on chip per chip
Other CacheNone
Disk1x 100GB SSD
File SystemEXT3
Memory Amount (GB)1024
# and size of DIMM(s)32 x 32768MB (Slots - A0,A1,B0,B1,C0,C1,D0,D1,E0,E1,F0,F1,G0,G1,H0,H1,I0,I1,J0,J1,K0,K1,L0,L1,M0,M1,N0,N1,O0,O1,P0,P1 populated)
Memory Details32GB 4Rx4 PC3-14900R-13 ECC
# and type of Network Interface Cards (NICs)1 X 10 Gbit NIC
Power Supply Quantity and Rating (W)Four 2500W, 208V single-phase, hot-swappable, redundant power supplies
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 6.5 (Santiago)
AvailableNov-2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u5
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_05
AvailableApr-2014
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance was set to Performance Mode
  • CPU Performance set to Enterprise
  • Memory RAS Configuration set to Maximum Performance
  • Processor C6 state set to disabled
  • Processor C1E set to disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • SE Linux = Disabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -Xmx240G -Xms240G -Xmn220G -XX:+UseParallelOldGC -XX:+UseLargePages -XX:ParallelGCThreads=24 -XX:-UseBiasedLocking -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch
Tuning Affinity Masks
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx6G -Xms6G -Xmn5G -XX:+UseParallelOldGC
Tuning Affinity Masks
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 146728 148099 149471 150842 152213
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 29711 62491 66507 77478 84334 60444
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1371 - / 1371 - / 1371 - / 1371 - / 1371 - / 1371
1000us 2743 / 4114 - / 1371 - / 1371 - / 1371 - / 1371 - / 1371
5000us 82277 / 83649 27426 / 28797 16455 / 17827 15084 / 16455 6856 / 8228 - / 1371
10000us 82277 / 83649 79535 / 80906 52109 / 53480 41139 / 42510 31540 / 28797 - / 1371
20000us 83649 / 85020 80906 / 82277 76792 / 78164 74050 / 75421 60337 / 53480 - / 1371
50000us 85020 / 86391 82277 / 83649 78164 / 79535 78164 / 79535 67193 / 58965 31540 / 2743
100000us 95990 / 87763 83649 / 85020 79535 / 80906 78164 / 79535 69936 / 63079 31540 / 2743
200000us 95990 / 89134 85020 / 86391 82277 / 83649 79535 / 80906 78164 / 76792 31540 / 2743
500000us 143985 / 112446 95990 / 94619 86391 / 87763 86391 / 87763 83649 / 85020 67193 / 34282
1000000us 148099 / - 143985 / 127530 105589 / 106961 101475 / 102847 90505 / 91876 72678 / 71307

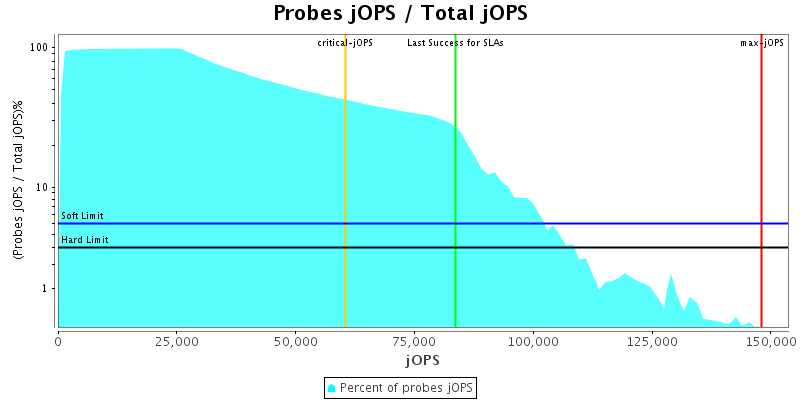

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.forkjoin.workers 96 84
specjbb.group.count 1 4
specjbb.heartbeat.threshold 100000 1000000
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 137129 IR
High-bound (settled) is 128211 IR
