SPECjbb2013
Copyright © 2012-2014 Standard Performance Evaluation Corporation
Intel Corp Intel Xeon X5690 (Historical) CODE DEFECT (CD) RESULT
Tested by: Intel Corp (AMR) Test Sponsor: Intel Corp Test location: Hillsboro, OR Test date: Jul 23, 2014
SPEC license #: 13 Hardware Availability: Jan-2011 Software Availability: Apr-2014 Publication: Sep 09, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

SPECjbb2013-MultiJVM: Multiple JVMs/Single Host
(# of groups: 2)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorSuperMicro
Vendor URLhttp://www.Supermicro.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores12
Total Threads24
Total Memory Amount (GB)48
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameSupermicro
VendorSupermicro
Vendor URLhttp://www.supermicro.com/
AvailableJan-2011
ModelSupermicro 6026T-URF
Form FactorRack
CPU NameIntel Xeon X5690
CPU Characteristics6-Core, 3.46GHz, 12MB L3 Cache (Turbo Boost Technology up to 3.73 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System12
Cores Per Chip6
Threads Per System24
Threads Per Core2
VersionNone
CPU Frequency (MHz)3460
Primary Cache64KB(I+D) per core
Secondary Cache256KB (I+D) per core
Tertiary Cache12MB (I+D) on chip per chip
Other CacheNone
Disk1x1TB
File SystemUFS
Memory Amount (GB)48
# and size of DIMM(s)12x4GB
Memory Details4GB 2Rx4 PC3-10600 (HMT151R7BFR4C-H9) Fully populated
# and type of Network Interface Cards (NICs)2x1 Gbit NICs
Power Supply Quantity and Rating (W)2 x 550
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRedHat
Vendor URLhttp://Redhat.com/
VersionRed Hat Enterprise Linux 6.5
AvailableNov 2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u5
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot Server VM Version 1.8.0_5
AvailableApr 2014
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -showversion -Xms1g -Xmx1g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms19g -Xmx19g -Xmn17g -XX:SurvivorRatio=14 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=12 -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning Affinity Masks
  • numactl --cpunodebind=0 --membind=0
  • numactl --cpunodebind=1 --membind=1
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -showversion -Xms2g -Xmx2g
Tuning Affinity Masks
  • numactl --cpunodebind=0 --membind=0
  • numactl --cpunodebind=1 --membind=1
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 26867 27199 27530 27862 28194
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 4436 6799 8822 16087 20399 9732
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 332 - / 332 - / 332 - / 332 - / 332 - / 332
1000us - / 332 - / 332 - / 332 - / 332 - / 332 - / 332
5000us 18906 / 19238 6302 / 6634 2985 / 3317 2654 / 2985 1990 / 2322 - / 332
10000us 19901 / 20233 17248 / 17580 9619 / 9951 7961 / 8292 5307 / 2985 - / 332
20000us 20565 / 20896 18906 / 19238 14926 / 15258 12273 / 12604 6634 / 4312 1990 / 1327
50000us 20565 / 20896 19570 / 19901 16253 / 16584 13268 / 13599 7297 / 6302 1990 / 1327
100000us 21228 / 21560 20233 / 20565 17911 / 18243 15589 / 15921 9619 / 8292 1990 / 1327
200000us 22555 / 22887 20896 / 21228 19238 / 19570 18906 / 19238 16253 / 15921 1990 / 1327
500000us 25872 / 26204 23550 / 23882 21560 / 21892 20896 / 21228 20233 / 20565 13599 / 13268
1000000us 27199 / - 26535 / 26867 25540 / 25872 24877 / 25208 23882 / 23218 17580 / 16584
Number of probes
Probes jOPS / Total jOPS

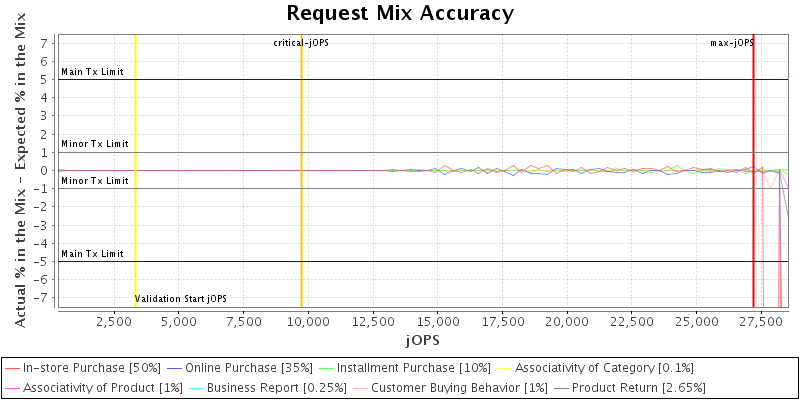

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

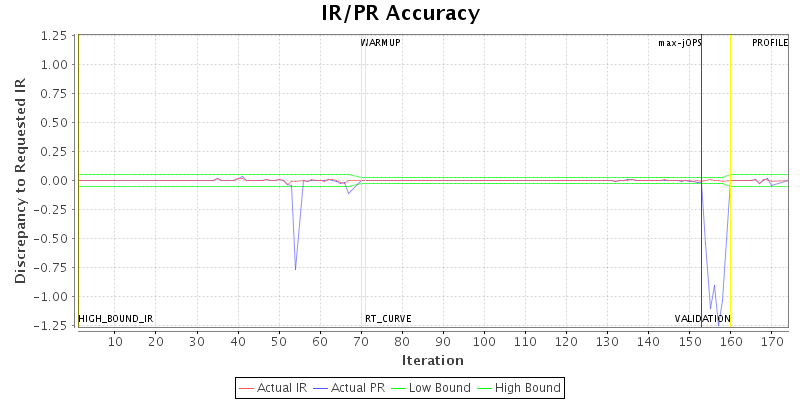

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.controller.rtcurve.start 0.0 0.0
specjbb.controller.type HBIR_RT HBIR_RT
specjbb.forkjoin.workers 24 24
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 33169 IR
High-bound (settled) is 27674 IR
