Intel Corp Intel Xeon E5-2697v2 (Historical) CODE DEFECT (CD) RESULT
Tested by: Intel Corp (AMR) Test Sponsor: Intel Corp Test location: Hillsboro, OR Test date: Jul 23, 2014
SPEC license #: 13 Hardware Availability: Sept-2013 Software Availability: Nov-2013 Publication: Sep 09, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorIntel
Vendor URLhttp://www.Intel.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores24
Total Threads48
Total Memory Amount (GB)128
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameIntel
VendorIntel
Vendor URLhttp://www.Intel.com/
AvailableSept 2013
ModelIntel Server Board S2600GZ
Form FactorRack
CPU NameIntel Xeon E5-2697v2
CPU Characteristics12-Core, 2.7GHz, 30MB L3 Cache (Turbo Boost Technology up to 3.5 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System24
Cores Per Chip12
Threads Per System48
Threads Per Core2
VersionNone
CPU Frequency (MHz)2.7GHz
Primary Cache64KB(I+D) per core
Secondary Cache256KB (I+D) per core
Tertiary Cache30MB (I+D) on chip per chip
Other CacheNone
Disk1x64GB (INTEL SSDSA2SH064G1GC)
File SystemUFS
Memory Amount (GB)128
# and size of DIMM(s)16x8GB
Memory DetailsSamsung 8GB 2Rx4 PC3L-12800R-11-11-E2-P2 M393BLK70DH0-YK0 (Slots A1,A2,B1,B2,C1,C2,D1,D2,E1,E2,F1,F2,G1,G2,H1,H2)
# and type of Network Interface Cards (NICs)2x1 Gbit NICs
Power Supply Quantity and Rating (W)1x550
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRedHat
Vendor URLhttp://Redhat.com/
VersionRed Hat Enterprise Linux 6.5
AvailableNov 2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 7u11
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot Server VM Version 1.7.0_11
AvailableJan 2013
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -showversion -Xms2g -Xmx2g -Xmn1536m
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -showversion -server -XX:-UseBiasedLocking -XX:LargePageSizeInBytes=2m -XX:+AlwaysPreTouch -XX:+UseLargePages -Xms29g -Xmx29g -Xmn27g -XX:+UseParallelOldGC -XX:ParallelGCThreads=24 -XX:SurvivorRatio=16 -XX:TargetSurvivorRatio=90 -XX:-UseAdaptiveSizePolicy -XX:+AggressiveOpts
Tuning Affinity Masks
  • numactl --cpunodebind=0 --membind=0
  • numactl --cpunodebind=1 --membind=1
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -showversion -Xms2g -Xmx2g -Xmn1536m
Tuning Affinity Masks
  • numactl --cpunodebind=0 --membind=0
  • numactl --cpunodebind=1 --membind=1
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 52596 53168 53740 54311 54883
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 7717 13339 19056 28804 45450 19139
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 572 - / 572 - / 572 - / 572 - / 572 - / 572
1000us - / 572 - / 572 - / 572 - / 572 - / 572 - / 572
5000us 44021 / 44593 33730 / 34302 4002 / 4574 3430 / 4002 2287 / 2858 - / 572
10000us 44593 / 45164 40591 / 41162 29157 / 28013 19438 / 20009 8575 / 6860 - / 572
20000us 45164 / 45736 42877 / 43449 33730 / 34302 29157 / 26870 10862 / 11434 572 / 1143
50000us 45164 / 45736 43449 / 44021 36017 / 36589 29728 / 28013 13721 / 12577 2287 / 1715
100000us 45736 / 46308 44021 / 44593 38876 / 39447 33730 / 32015 19438 / 18294 2287 / 1715
200000us 48594 / 47451 45164 / 45736 42877 / 43449 40019 / 40591 31443 / 24583 16579 / 1715
500000us 49738 / 50310 48594 / 49166 46308 / 46879 45736 / 46308 45164 / 45736 44021 / 7432
1000000us 50881 / 51453 50310 / 50881 49166 / 49738 49166 / 49738 48594 / 48023 46879 / 47451
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

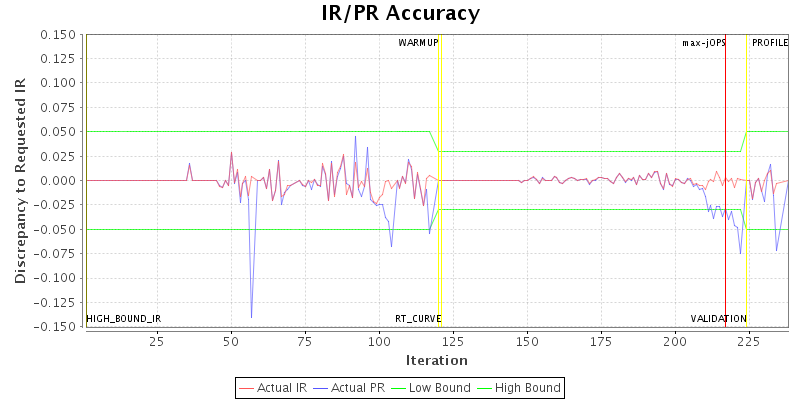

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.controller.rtcurve.start 0.0 0.0
specjbb.controller.type HBIR_RT HBIR_RT
specjbb.forkjoin.workers 48 48
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 57170 IR
High-bound (settled) is 54065 IR
