SPECjbb2013
Copyright © 2012-2014 Standard Performance Evaluation Corporation
Intel Corp Intel Xeon E5-2699v3 (Historical) CODE DEFECT (CD) RESULT
Tested by: Intel Corp (AMR) Test Sponsor: Intel Corp Test location: Hillsboro, OR Test date: Jul 23, 2014
SPEC license #: 13 Hardware Availability: Sept-2014 Software Availability: Nov-2013 Publication: Sep 09, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

SPECjbb2013-MultiJVM: Multiple JVMs/Single Host
(# of groups: 2)

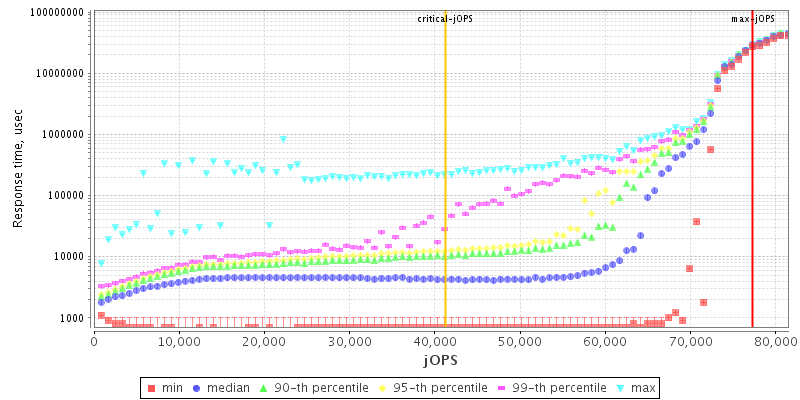

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorIntel
Vendor URLhttp://www.Intel.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores36
Total Threads72
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameIntel
VendorIntel
Vendor URLhttp://www.Intel.com/
AvailableSept 2014
ModelIntel Server Board S2600WTT
Form FactorRack
CPU NameIntel Xeon E5-2699v3
CPU Characteristics18-Core, 2.3GHz, 45MB L3 Cache (Turbo Boost Technology up to 3.6 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System36
Cores Per Chip18
Threads Per System72
Threads Per Core2
VersionNone
CPU Frequency (MHz)2.3GHz
Primary Cache64KB(I+D) per core
Secondary Cache256KB (I+D) per core
Tertiary Cache12MB (I+D) on chip per chip
Other CacheNone
Disk1x64GB (INTEL SSDSA2SH064G1GC)
File SystemUFS
Memory Amount (GB)512
# and size of DIMM(s)16x32GB
Memory DetailsSamsung 32GB 4-1Rx4-PC4 2133P-LD0-10-DC0 M386A4G0DM0-CPB (Slots A1,A2,B1,B2,C1,C2,D1,D2,E1,E2,F1,F2,G1,G2,H1,H2)
# and type of Network Interface Cards (NICs)2x1 Gbit NICs
Power Supply Quantity and Rating (W)1x550
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRedHat
Vendor URLhttp://Redhat.com/
VersionRed Hat Enterprise Linux 6.5
AvailableNov 2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 7u11
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot Server VM Version 1.7.0_11
AvailableJan 2013
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -showversion -Xms2g -Xmx2g -Xmn1536m
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -Xms240g -Xmx240g -Xmn210g -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy -XX:-UseBiasedLocking
Tuning Affinity Masks
  • numactl --cpunodebind=0 --membind=0
  • numactl --cpunodebind=1 --membind=1
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m
Tuning Affinity Masks
  • numactl --cpunodebind=0 --membind=0
  • numactl --cpunodebind=1 --membind=1
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Pass Fail
jOPS 76480 77303 78125 78948 79770
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 16173 43174 48931 54687 63733 41226
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 822 - / 822 - / 822 - / 822 - / 822 - / 822
1000us - / 822 - / 822 - / 822 - / 822 - / 822 - / 822
5000us 64145 / 64967 56744 / 57566 7401 / 8224 6579 / 7401 4934 / 5757 - / 822
10000us 64145 / 64967 61678 / 62500 37829 / 38651 27138 / 27961 17270 / 15625 822 / 1645
20000us 65790 / 66612 63322 / 64145 56744 / 57566 53454 / 54276 40296 / 33717 1645 / 2467
50000us 66612 / 67434 64145 / 64967 60855 / 61678 58388 / 57566 43586 / 42763 20559 / 5757
100000us 67434 / 68257 64967 / 65790 61678 / 62500 60855 / 59211 49342 / 48520 20559 / 5757
200000us 69079 / 69901 65790 / 66612 63322 / 64145 60855 / 61678 54276 / 55099 34540 / 5757
500000us 70724 / 71546 69079 / 69901 67434 / 68257 65790 / 66612 63322 / 64145 60855 / 22204
1000000us 71546 / 72369 70724 / 71546 69901 / 70724 69079 / 69901 69079 / 68257 66612 / 67434
Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

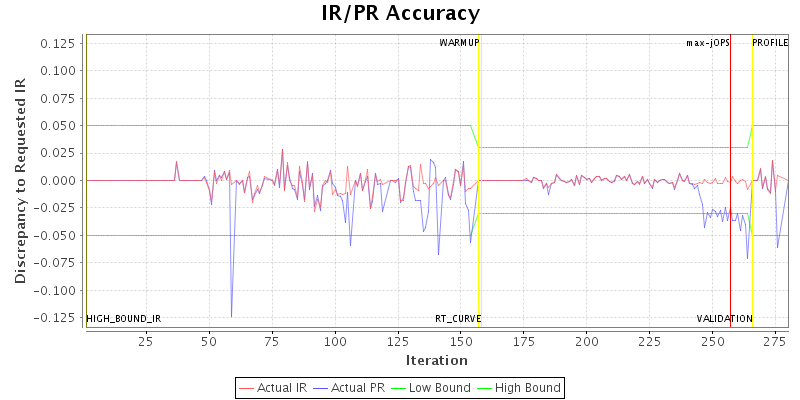

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.controller.rtcurve.start 0.0 0.0
specjbb.controller.type HBIR_RT HBIR_RT
specjbb.forkjoin.workers 72 72
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 82237 IR
High-bound (settled) is 75671 IR
Copyright © 2012-2014 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2013 Version: [SPECjbb2013 1.01, April 16, 2014]
