Huawei Company Huawei CH121 V3 CODE DEFECT (CD) RESULT
Tested by: Huawei Company Test Sponsor: Huawei Company Test location: Shen Zhen,China Test date: Aug 20, 2014
SPEC license #: 50 Hardware Availability: Sep-2014 Software Availability: Jul-2014 Publication: Sep 18, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHuawei Company
Vendor URLhttp://www.huawei.com/cn/
System SourceSingle Supplier
System DesignationServer Blade
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores36
Total Threads72
Total Memory Amount (GB)512GB
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameHuawei CH121 V3
VendorHuawei Company
Vendor URLhttp://www.huawei.com/cn/
AvailableSep-2014
ModelHuawei CH121 V3
Form Factor1.5U
CPU NameIntel Xeon E5-2699 v3
CPU CharacteristicsEighteen-Core, 2.30GHz, 46080KB L3 Cache (Turbo Boost Technology up to 3.60 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System36
Cores Per Chip18
Threads Per System72
Threads Per Core2
Version(U47)8.09
CPU Frequency (MHz)2300
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache46080KB (I+D) on chip per chip
Other CacheNone
Disk1x 500GB 7200K RPM
File Systemext4
Memory Amount (GB)512
# and size of DIMM(s)16 x 32GB
Memory Details4Rx4 PC4-2133P ECC
# and type of Network Interface Cards (NICs)None
Power Supply Quantity and Rating (W)1 x 750W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server Release 6.5 (Santiago)
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server Release 6.5 (Santiago)-2.6.32-431.el6.x86_64
AvailableNov-2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u11
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot Server VM Version 1.8.0_11
AvailableJul-2014
Bitness64
Notesnone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning
  • bufcache=None
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1768m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms240g -Xmx240g -Xmn210g -XX:SurvivorRatio=14 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=36
Tuning numactl used to affinitize each Backend JVM to a single memory node
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1768m -Xms2g -Xmx2g
Tuning numactl used to affinitize each Backend JVM to a single memory node
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Pass Fail
jOPS 137702 139122 140541 141961 143381
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 37264 54655 61753 67431 73110 57343
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1420 - / 1420 - / 1420 - / 1420 - / 1420 - / 1420
1000us 2839 / 4259 - / 1420 - / 1420 - / 1420 - / 1420 - / 1420
5000us 72400 / 73820 69561 / 70980 38329 / 39749 29812 / 21294 7098 / 4259 - / 1420
10000us 73820 / 75239 70980 / 72400 61043 / 62463 52526 / 53945 39749 / 29812 - / 1420
20000us 73820 / 75239 72400 / 73820 69561 / 70980 66722 / 68141 48267 / 49686 - / 1420
50000us 73820 / 75239 72400 / 73820 70980 / 72400 69561 / 68141 53945 / 55365 19875 / 4259
100000us 75239 / 76659 72400 / 73820 70980 / 72400 69561 / 70980 63882 / 59624 19875 / 4259
200000us 83757 / 76659 73820 / 75239 70980 / 72400 70980 / 72400 66722 / 68141 39749 / 21294
500000us 116408 / 109310 86596 / 88016 73820 / 75239 72400 / 73820 72400 / 73820 66722 / 62463
1000000us 139122 / - 134863 / 117828 92275 / 93694 86596 / 88016 76659 / 78079 69561 / 70980

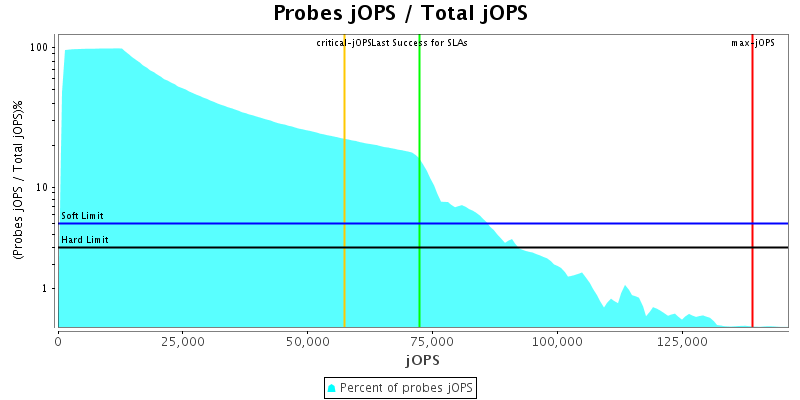

Probes jOPS / Total jOPS

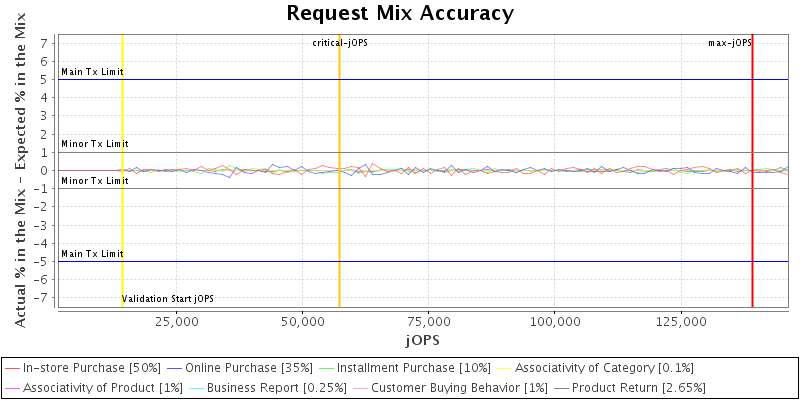

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

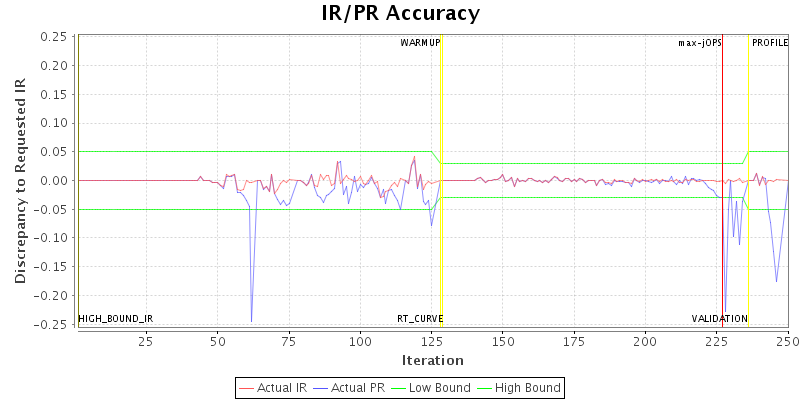

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.timeouts.connect 60000 300000
specjbb.comm.connect.timeouts.read 60000 300000
specjbb.comm.connect.timeouts.write 60000 300000
specjbb.forkjoin.workers 72 108
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 141961 IR
High-bound (settled) is 134233 IR
