Huawei Company Huawei CH121 V3 CODE DEFECT (CD) RESULT
Tested by: Huawei Company Test Sponsor: Huawei Company Test location: Shen Zhen,China Test date: Aug 20, 2014
SPEC license #: 50 Hardware Availability: Sep-2014 Software Availability: Jul-2014 Publication: Sep 18, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

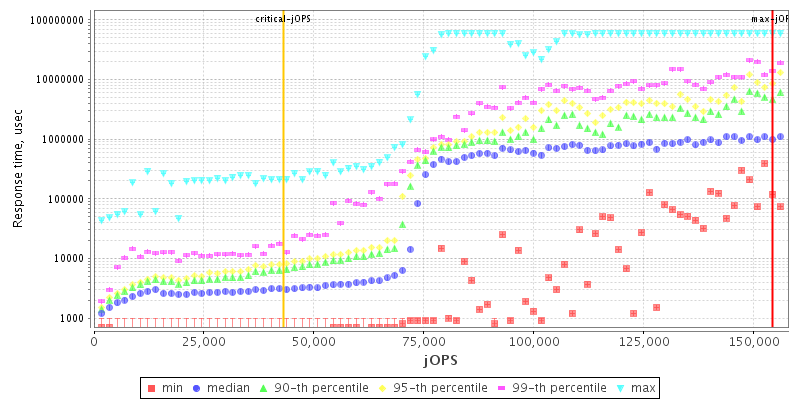

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHuawei Company
Vendor URLhttp://www.huawei.com/cn/
System SourceSingle Supplier
System DesignationServer Blade
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores36
Total Threads72
Total Memory Amount (GB)512GB
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameHuawei CH121 V3
VendorHuawei Company
Vendor URLhttp://www.huawei.com/cn/
AvailableSep-2014
ModelHuawei CH121 V3
Form Factor1.5U
CPU NameIntel Xeon E5-2699 v3
CPU CharacteristicsEighteen-Core, 2.30GHz, 46080KB L3 Cache (Turbo Boost Technology up to 3.60 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System36
Cores Per Chip18
Threads Per System72
Threads Per Core2
Version(U47)8.09
CPU Frequency (MHz)2300
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache46080KB (I+D) on chip per chip
Other CacheNone
Disk1x 500GB 7200K RPM
File Systemext4
Memory Amount (GB)512
# and size of DIMM(s)16 x 32GB
Memory Details4Rx4 PC4-2133P ECC
# and type of Network Interface Cards (NICs)None
Power Supply Quantity and Rating (W)1 x 3000W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server Release 6.5 (Santiago)
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server Release 6.5 (Santiago)-2.6.32-431.el6.x86_64
AvailableNov-2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u11
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot Server VM Version 1.8.0_11
AvailableJul-2014
Bitness64
Notesnone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning
  • bufcache=None
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1768m -Xms2g -Xmx2g -XX:+UseParallelOldGC -XX:ParallelGCThreads=2
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms240g -Xmx240g -Xmn210g -XX:SurvivorRatio=14 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=36
Tuning numactl used to affinitize each Backend JVM to a single memory node
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1768m -Xms2g -Xmx2g -XX:+UseParallelOldGC -XX:ParallelGCThreads=2
Tuning numactl used to affinitize each Backend JVM to a single memory node
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 150761 152514 154268 156021 157774
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 8545 55220 62232 69245 72751 43054
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1753 - / 1753 - / 1753 - / 1753 - / 1753 - / 1753
1000us 1753 / 3506 - / 1753 - / 1753 - / 1753 - / 1753 - / 1753
5000us 71875 / 73628 66616 / 68369 33308 / 35061 24543 / 22790 3506 / 5259 - / 1753
10000us 73628 / 75381 70122 / 71875 57850 / 59603 50838 / 52591 19283 / 7012 - / 1753
20000us 73628 / 75381 71875 / 73628 68369 / 70122 68369 / 70122 43826 / 45579 - / 1753
50000us 73628 / 75381 71875 / 73628 70122 / 71875 68369 / 70122 56097 / 54344 19283 / 5259
100000us 75381 / 77134 73628 / 75381 70122 / 71875 68369 / 70122 61356 / 63109 19283 / 8765
200000us 82393 / 78887 73628 / 75381 71875 / 73628 70122 / 71875 68369 / 70122 36814 / 12271
500000us 138490 / 134984 84146 / 85899 75381 / 77134 75381 / 77134 71875 / 73628 66616 / 68369
1000000us 154268 / - 154268 / 143749 99923 / 92911 84146 / 85899 80640 / 78887 70122 / 71875
Probes jOPS / Total jOPS

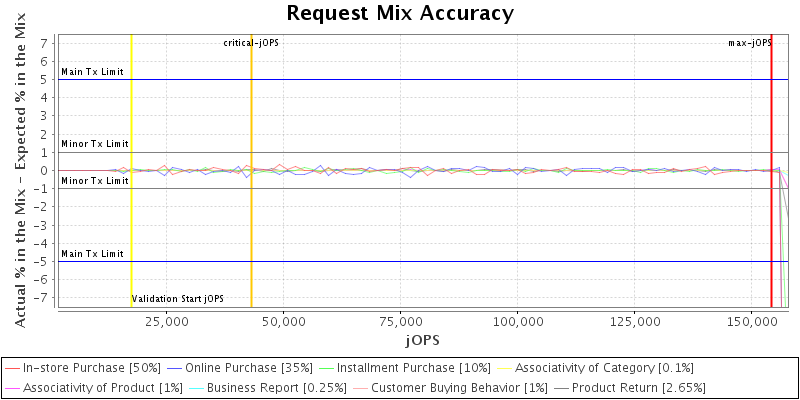

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

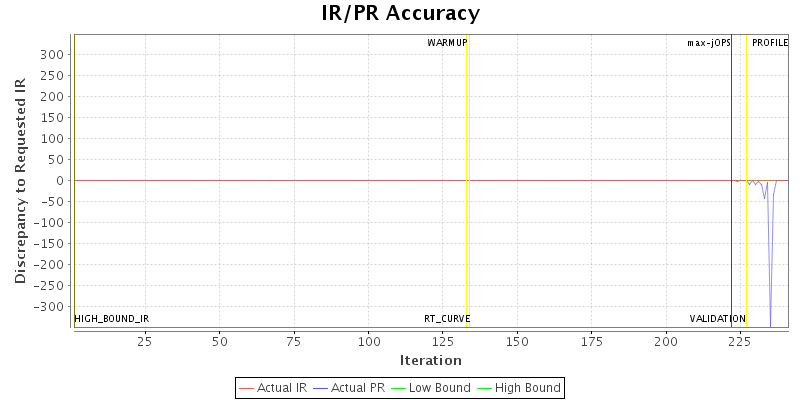

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.timeouts.connect 60000 300000
specjbb.comm.connect.timeouts.read 60000 300000
specjbb.comm.connect.timeouts.write 60000 300000
specjbb.forkjoin.workers 72 144
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 175304 IR
High-bound (settled) is 165809 IR
