Huawei Company Huawei XH628 V3 CODE DEFECT (CD) RESULT
Tested by: Huawei Company Test Sponsor: Huawei Company Test location: Shen Zhen,China Test date: Aug 20, 2014
SPEC license #: 50 Hardware Availability: Sep-2014 Software Availability: Aug-2014 Publication: Sep 18, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

SPECjbb2013-MultiJVM: Multiple JVMs/Single Host
(# of groups: 2)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHuawei Company
Vendor URLhttp://www.huawei.com/cn/
System SourceSingle Supplier
System DesignationServer Blade
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores36
Total Threads72
Total Memory Amount (GB)512GB
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameHuawei XH628 V3
VendorHuawei Company
Vendor URLhttp://www.huawei.com/cn/
AvailableSep-2014
ModelHuawei XH628 V3
Form Factor4U
CPU NameIntel Xeon E5-2699 v3
CPU CharacteristicsEighteen-Core, 2.30GHz, 46080KB L3 Cache (Turbo Boost Technology up to 3.60 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System36
Cores Per Chip18
Threads Per System72
Threads Per Core2
Version(U47)8.09
CPU Frequency (MHz)2300
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache46080KB (I+D) on chip per chip
Other CacheNone
Disk1x 500GB 7200K RPM
File Systemext4
Memory Amount (GB)512
# and size of DIMM(s)16 x 32GB
Memory Details4Rx4 PC4-2133P ECC
# and type of Network Interface Cards (NICs)None
Power Supply Quantity and Rating (W)1 x 750W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server Release 6.5 (Santiago)
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server Release 6.5 (Santiago)-2.6.32-431.el6.x86_64
AvailableNov-2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u20
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot Server VM Version 1.8.0_20
AvailableAug-2014
Bitness64
Notesnone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1768m -Xms2g -Xmx2g -XX:ParallelGCThreads=9
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms240g -Xmx240g -Xmn200g -XX:SurvivorRatio=14 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=36
Tuning numactl used to affinitize each Backend JVM to a single memory node
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1768m -Xms2g -Xmx2g -XX:ParallelGCThreads=9
Tuning numactl used to affinitize each Backend JVM to a single memory node
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 143381 144800 146220 147639 149059
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 33124 56074 60570 68851 74529 56530
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1420 - / 1420 - / 1420 - / 1420 - / 1420 - / 1420
1000us 2839 / 4259 - / 1420 - / 1420 - / 1420 - / 1420 - / 1420
5000us 73820 / 75239 69561 / 70980 28392 / 29812 19875 / 21294 2839 / 4259 - / 1420
10000us 75239 / 76659 72400 / 73820 62463 / 63882 51106 / 52526 34071 / 31231 - / 1420
20000us 75239 / 76659 72400 / 73820 69561 / 70980 66722 / 68141 48267 / 49686 1420 / 2839
50000us 75239 / 76659 72400 / 73820 70980 / 72400 68141 / 69561 58204 / 53945 15616 / 4259
100000us 76659 / 78079 72400 / 73820 70980 / 72400 69561 / 70980 62463 / 59624 15616 / 4259
200000us 100792 / 78079 75239 / 76659 72400 / 73820 70980 / 72400 68141 / 69561 36910 / 11357
500000us 144800 / 136283 86596 / 88016 75239 / 76659 75239 / 76659 73820 / 75239 66722 / 68141
1000000us 144800 / - 144800 / 136283 93694 / 92275 86596 / 85177 80918 / 78079 69561 / 70980

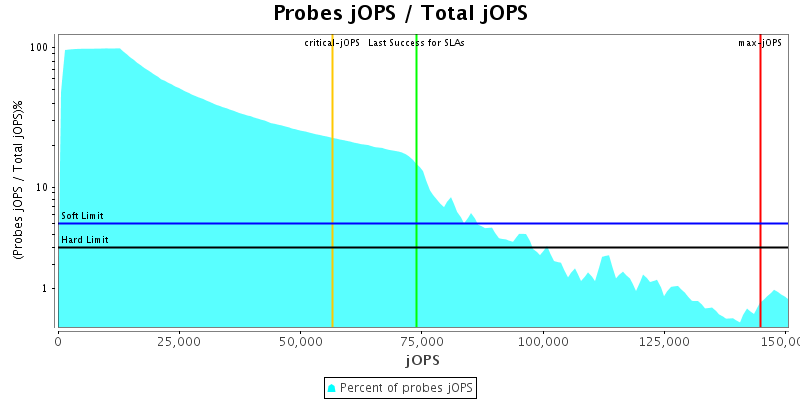

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 72 108
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 141961 IR
High-bound (settled) is 118334 IR
