Hewlett-Packard Company HP ProLiant ML350 Gen9 CODE DEFECT (CD) RESULT
Tested by: Hewlett-Packard Company Test Sponsor: Hewlett-Packard Company Test location: Houston, TX Test date: Aug 22, 2014
SPEC license #: 3 Hardware Availability: Sep-2014 Software Availability: Jul-2014 Publication: Sep 18, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

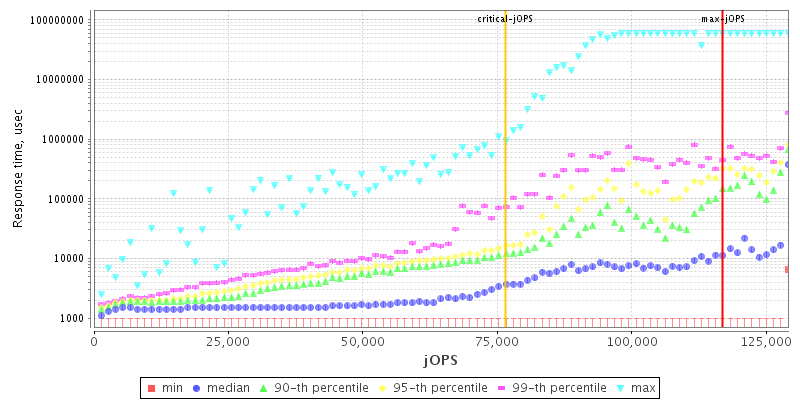

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips2
Total Cores36
Total Threads72
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameHP ProLiant ML350 Gen9
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com
AvailableSep-2014
ModelHP ProLiant ML350 Gen9
Form Factor5U
CPU NameIntel Xeon E5-2699 v3
CPU Characteristics18 Core, 2.30 GHz, 45 MB L3 Cache (Turbo Boost up to 3.60 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System36
Cores Per Chip18
Threads Per System72
Threads Per Core2
VersionP92 07/11/2014
CPU Frequency (MHz)2300
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache45 MB I+D on chip per chip
Other CacheNone
Disk1 x 800 GB 12 G SSD SAS RAID 0
File SystemEXT3
Memory Amount (GB)512
# and size of DIMM(s)16 x 32678 GB
Memory Details32 GB 4Rx4 PC4-2133L-R-10
# and type of Network Interface Cards (NICs)1 x HP 331FLR Quad Port Gigabit Ethernet Adapter
Power Supply Quantity and Rating (W)2 x 800
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 11 SP3
VendorSUSE
Vendor URLhttp://www.suse.com
VersionSP3 kernel 3.0.101-0.35-default
AvailableJul-2013
Bitness64
Notes
  • ulimit -l 800000000
  • ulimit -m 800000000
  • ulimit -v 800000000
Java Virtual Machine jvm_1
NameOracle Java SE 8u11
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot Server VM Version 1.8.0_11
AvailableJul-2014
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning BIOS Configuration
  • HP Power Profile = Maximum Performance
  • Collaborative Power Control = Disabled
  • Thermal Configuration = Maximum Cooling
  • Processor Power And Utilization Monitoring = Disabled
  • QPI Snoop COnfiguration= Early Snoop
  • Memory Refresh Rate = 1x Refresh
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning None
Notes
  • ulimit -l 800000000
  • ulimit -m 800000000
  • ulimit -v 800000000
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -showversion -server -Xmx470g -Xms470g -Xmn430g -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -XX:ParallelGCThreads=72 -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=398 -XX:TargetSurvivorRatio=90 -XX:MaxTenuringThreshold=15 -XX:-UseBiasedLocking -XX:+AggressiveOpts -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Pass Pass
jOPS 115565 116909 118253 119596 120940
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 50392 69608 78611 85852 110495 76475
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1344 - / 1344 - / 1344 - / 1344 - / 1344 - / 1344
1000us 73908 / 75252 - / 1344 - / 1344 - / 1344 - / 1344 - / 1344
5000us 116909 / - 81971 / 83314 48376 / 49720 40313 / 41657 26876 / 28219 8063 / 2688
10000us 116909 / - 114221 / 112878 71220 / 72564 64501 / 65845 51064 / 49720 24188 / 6719
20000us 116909 / - 116909 / - 84658 / 83314 79283 / 80627 65845 / 67189 24188 / 10750
50000us 116909 / - 116909 / - 110190 / 94065 106159 / 83314 73908 / 68533 26876 / 14782
100000us 116909 / - 116909 / - 115565 / 116909 107502 / 87346 79283 / 77939 38970 / 14782
200000us 116909 / - 116909 / - 116909 / - 112878 / 95408 106159 / 83314 60470 / 30907
500000us 116909 / - 116909 / - 116909 / - 116909 / - 116909 / 88689 65845 / 67189
1000000us 116909 / - 116909 / - 116909 / - 116909 / - 116909 / - 76595 / 75252

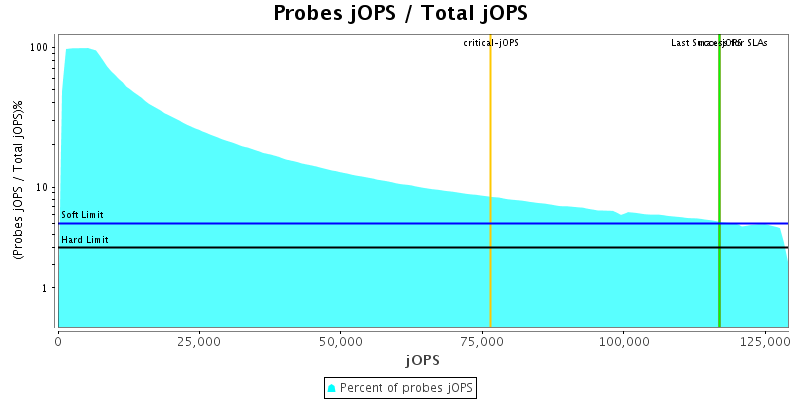

Probes jOPS / Total jOPS

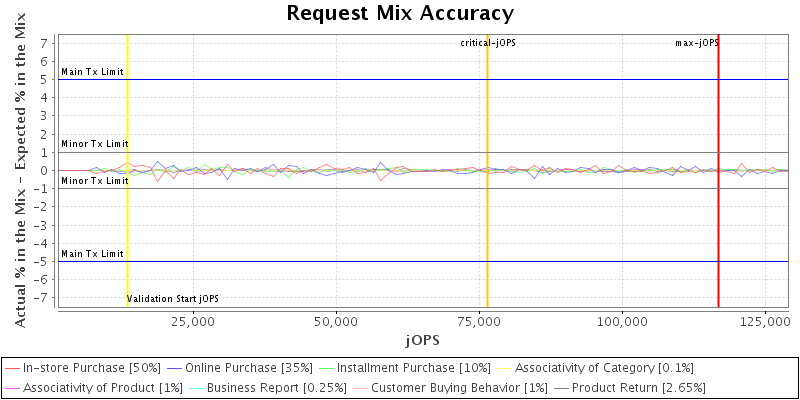

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

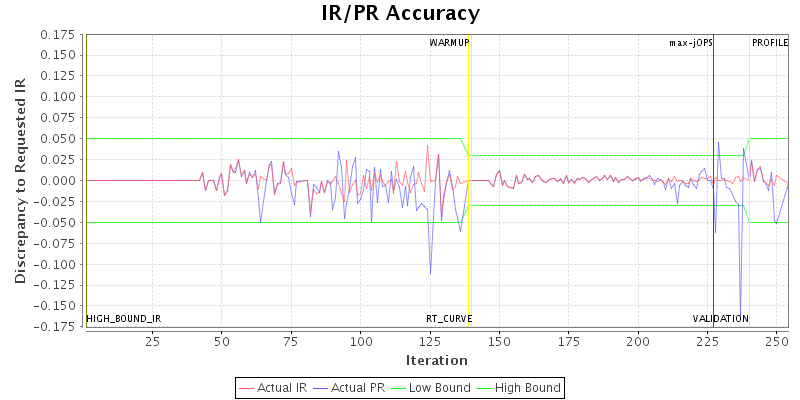

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.connpool.size 256 420
specjbb.comm.connect.pool.max 256 480
specjbb.comm.connect.timeouts.connect 60000 300000
specjbb.comm.connect.timeouts.read 60000 300000
specjbb.comm.connect.timeouts.write 60000 300000
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.customerDriver.threads 64 {=64, saturate=128}
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 134378 IR
High-bound (settled) is 126175 IR
