SPECjbb2013
Copyright © 2012-2014 Standard Performance Evaluation Corporation
Hewlett-Packard Company HP ProLiant ML350 Gen9 CODE DEFECT (CD) RESULT
Tested by: Hewlett-Packard Company Test Sponsor: Hewlett-Packard Company Test location: Houston, TX Test date: Aug 30, 2014
SPEC license #: 3 Hardware Availability: Sep-2014 Software Availability: Jul-2014 Publication: Sep 18, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

SPECjbb2013-MultiJVM: Multiple JVMs/Single Host
(# of groups: 2)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips2
Total Cores36
Total Threads72
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameHP ProLiant ML350 Gen9
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com
AvailableSep-2014
ModelHP ProLiant ML350 Gen9
Form Factor5U
CPU NameIntel Xeon E5-2699 v3
CPU Characteristics18 Core, 2.30 GHz, 45 MB L3 Cache (Turbo Boost up to 3.60 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System36
Cores Per Chip18
Threads Per System72
Threads Per Core2
VersionP92 07/11/2014
CPU Frequency (MHz)2300
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache45 MB I+D on chip per chip
Other CacheNone
Disk1 x 800 GB 12 G SSD SAS
File SystemEXT3
Memory Amount (GB)512
# and size of DIMM(s)16 x 32678 GB
Memory Details32 GB 4Rx4 PC4-2133L-R-10
# and type of Network Interface Cards (NICs)1 x HP 331FLR Quad Port Gigabit Ethernet Adapter
Power Supply Quantity and Rating (W)2 x 800
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 11 SP3
Vendorsuse
Vendor URLhttp://www.suse.com
VersionSP3 kernel 3.0.101-0.35-default
AvailableNov-2013
Bitness64
Notes
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns
Java Virtual Machine jvm_1
NameOracle Java SE 8u11
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot Server VM Version 1.8.0_11
AvailableJul-2014
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning BIOS Configuration
  • HP Power Profile = Maximum Performance
  • Collaborative Power Control = Disabled
  • Thermal Configuration = Maximum Cooling
  • Processor Power And Utilization Monitoring = Disabled
  • QPI Snoop Configuration= Early Snoop
  • Memory Refresh Rate = 1x Refresh
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning None
Notes
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx4g -Xms4g -Xmn3g -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -Xmx236g -Xms236g -Xmn176g -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -XX:ParallelGCThreads=36 -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=48 -XX:TargetSurvivorRatio=90 -XX:MaxTenuringThreshold=15 -XX:-UseBiasedLocking -XX:+AggressiveOpts -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx4G -Xms4G -Xmn3G -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 187175 188924 190674 192423 194172
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 20117 46356 55103 62391 72596 47139
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1749 - / 1749 - / 1749 - / 1749 - / 1749 - / 1749
1000us - / 1749 - / 1749 - / 1749 - / 1749 - / 1749 - / 1749
5000us 68223 / 69972 57727 / 59476 10496 / 12245 10496 / 12245 8746 / 10496 - / 1749
10000us 69972 / 71721 64724 / 66473 45482 / 47231 33237 / 34986 19242 / 20992 - / 1749
20000us 71721 / 73471 68223 / 69972 61225 / 62975 55978 / 57727 43732 / 29738 3499 / 5248
50000us 71721 / 73471 69972 / 71721 66473 / 68223 64724 / 62975 45482 / 47231 15744 / 6997
100000us 73471 / 75220 71721 / 73471 68223 / 69972 66473 / 68223 54228 / 55978 15744 / 6997
200000us 78718 / 80468 71721 / 73471 69972 / 71721 68223 / 69972 64724 / 61225 17493 / 19242
500000us 167933 / 108457 76969 / 78718 73471 / 75220 71721 / 73471 71721 / 73471 64724 / 61225
1000000us 190674 / - 188924 / 180178 82217 / 83966 78718 / 80468 76969 / 75220 71721 / 73471

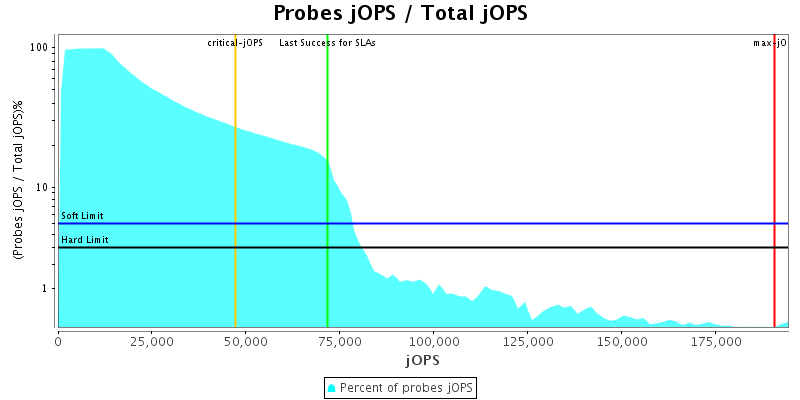

Number of probes
Probes jOPS / Total jOPS

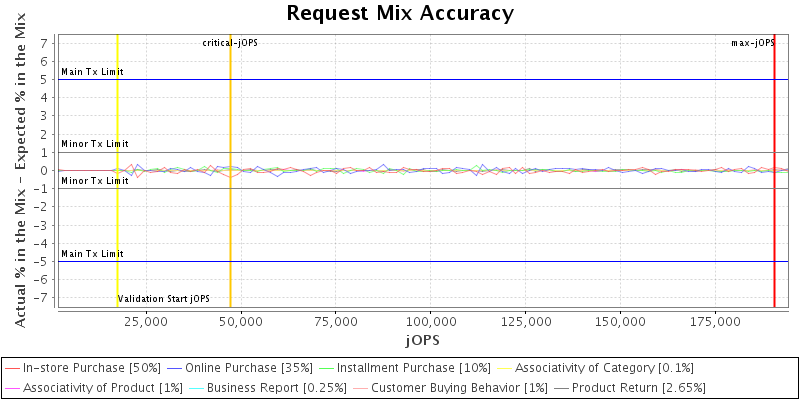

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

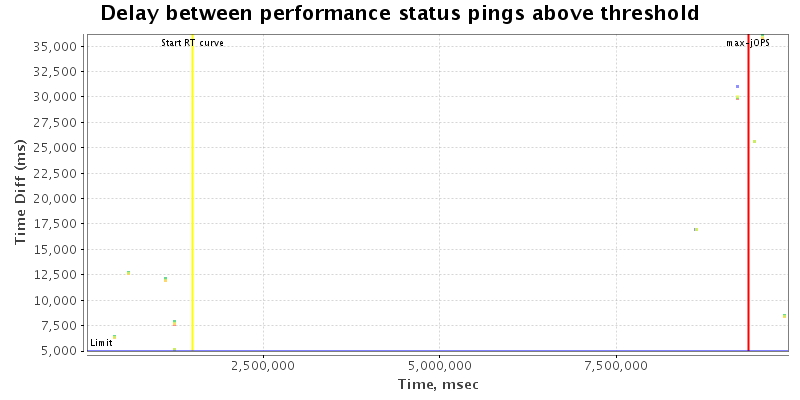

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

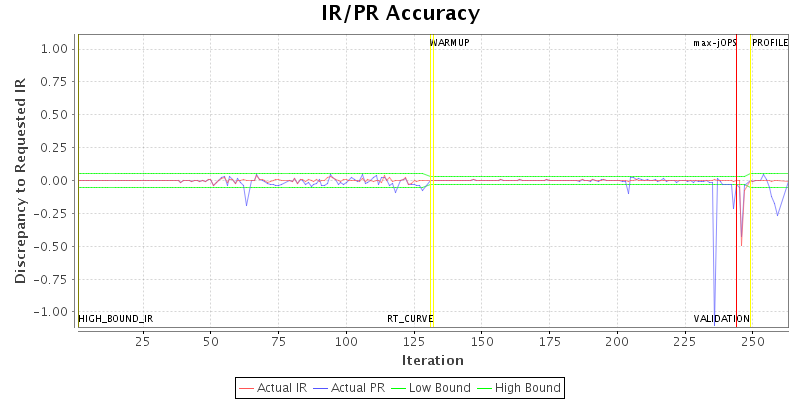

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.connpool.size 256 420
specjbb.comm.connect.pool.max 256 480
specjbb.comm.connect.timeouts.connect 60000 300000
specjbb.comm.connect.timeouts.read 60000 300000
specjbb.comm.connect.timeouts.write 60000 300000
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.customerDriver.threads 64 {=64, saturate=192}
specjbb.forkjoin.workers 72 270
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 174930 IR
High-bound (settled) is 169435 IR
