SPECjbb2013
Copyright © 2012-2014 Standard Performance Evaluation Corporation
Hewlett-Packard Company HP ProLiant XL220a Gen8 v2 CODE DEFECT (CD) RESULT
Tested by: Hewlett-Packard Company Test Sponsor: Hewlett-Packard Company Test location: Houston, TX Test date: Sep 08, 2014
SPEC license #: 3 Hardware Availability: Jun-2014 Software Availability: Aug-2014 Publication: Oct 03, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

SPECjbb2013-MultiJVM: Multiple JVMs/Single Host
(# of groups: 1)

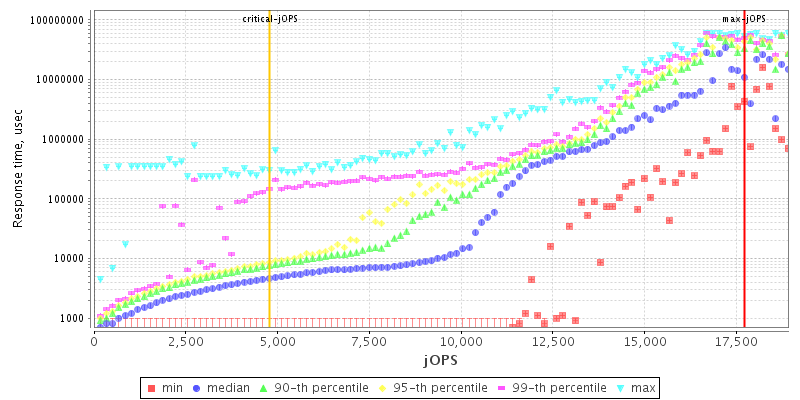

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips1
Total Cores4
Total Threads8
Total Memory Amount (GB)32
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameHP ProLiant XL220a Gen8 v2
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com
AvailableJun-2014
ModelHP ProLiant XL220a Gen8 v2
Form FactorBlade
CPU NameIntel Xeon E3-1281 v3
CPU Characteristics4 Core, 3.70GHz, Turbo Boost Technology up to 4.10 GHz
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System4
Cores Per Chip4
Threads Per System8
Threads Per Core2
VersionP94 06/20/2014
CPU Frequency (MHz)3700
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache8 MB I+D on chip per chip
Other CacheNone
Disk1 x 400 GB SAS SSD
File SystemEXT4
Memory Amount (GB)32
# and size of DIMM(s)4 x 8192 MB
Memory Details8 GB 2Rx8 PC3-12800E-11 ECC CL11
# and type of Network Interface Cards (NICs)1 x HP Apollo 6000 Dual 1GbE 364i Adapter
Power Supply Quantity and Rating (W)2 x 2450
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 11 SP3
VendorSUSE
Vendor URLhttp://www.suse.com
VersionSP3 - 3.0.101-0.35-default
AvailableJul-2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u20
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot Server VM Version 1.8.0_20
AvailableAug-2014
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning BIOS Configuration:
  • HP Power Profile = Maximum Performance
  • Collaborative Power Control = Disabled
  • DIMM Voltage Preference = Optimized For Performance
  • Memory Power Saving Mode = Maximum Performance
  • Thermal Configuration = Maximum Cooling
  • Processor Power And Utilization Monitoring = Disabled
  • Memory Refresh Rate = 1x Refresh
  • ACPI SLIT Table = Enabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(1), jvm_TxInjector_1(1)
OS Image Description os_1
Tuning
  • ulimit -n 32768
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx1g -Xms1g -Xmn768m
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -Xmx29g -Xms29g -Xmn21g -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy -XX:-UseBiasedLocking -XX:+AggressiveOpts -verbose:gc -XX:+PrintGCDetails -Xloggc:log
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --membind=$gnum
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx1G -Xms1G -Xmn768m -XX:+UseParallelOldGC
Tuning Affinistized to memory node 0 using numa ctl--membind
Notes numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --membind=$gnum
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Pass
jOPS 17543 17713 17884 18054 18224
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 2630 3122 3936 6825 11326 4781
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 170 - / 170 - / 170 - / 170 - / 170 - / 170
1000us 1874 / 2044 681 / 852 341 / 511 170 / 341 - / 170 - / 170
5000us 10390 / 10560 5110 / 5280 3236 / 3406 2895 / 3066 2044 / 1874 170 / 341
10000us 10900 / 11071 9197 / 9368 5961 / 6132 5280 / 5450 3236 / 1874 511 / 341
20000us 10900 / 11071 10219 / 10390 8005 / 8175 7153 / 6983 3747 / 1874 852 / 341
50000us 11071 / 11241 10730 / 10900 8686 / 8857 7835 / 7494 3747 / 1874 852 / 341
100000us 11411 / 11582 10900 / 11071 9879 / 9708 8516 / 8686 4088 / 2725 852 / 341
200000us 11752 / 11922 11411 / 11582 10560 / 10730 10049 / 10219 7153 / 2725 852 / 341
500000us 13796 / 13966 12433 / 12604 11752 / 11922 11582 / 11752 11241 / 11411 7664 / 2725
1000000us 15840 / 14818 13966 / 14137 13455 / 13626 13285 / 13455 12774 / 12604 10049 / 9708

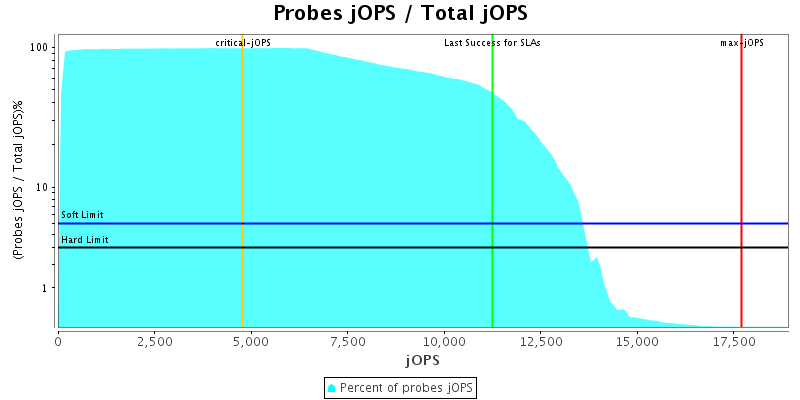

Number of probes
Probes jOPS / Total jOPS

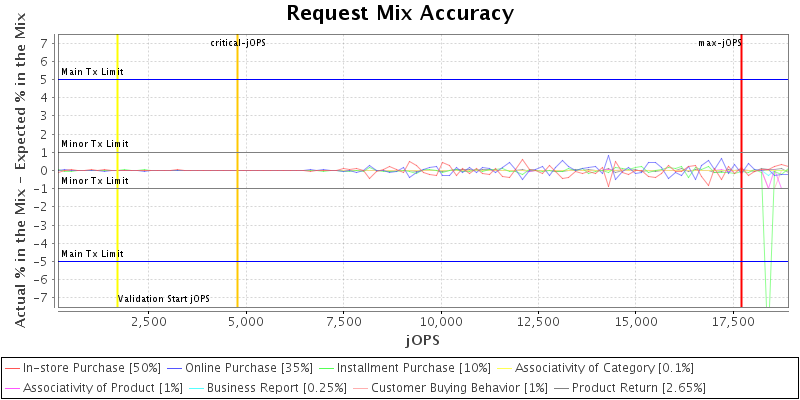

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.group.count 1 1
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 17032 IR
High-bound (settled) is 16499 IR
Copyright © 2012-2014 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2013 Version: [SPECjbb2013 1.0, January 22, 2013]
