Lenovo ThinkServer RD650 CODE DEFECT (CD) RESULT
Tested by: Lenovo Test Sponsor: Lenovo Test location: Peking, China Test date: Oct 14, 2014
SPEC license #: 9017 Hardware Availability: Sep-2014 Software Availability: Oct-2014 Publication: Nov 12, 2014
Validation Errors Summary
SPECjbb2013 results have been marked as "Code Defect" due to a bug that impacts the comparability of results. The bug can significantly reduce the amount of work done during the measurement period, resulting in an inflated SPECjbb2013 metric.
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo
Vendor URLhttp://www.lenovo.com.cn
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores36
Total Threads72
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameLenovo ThinkServer RD650
VendorLenovo
Vendor URLhttp://www.lenovo.com.cn
AvailableSep-2014
ModelLenovo ThinkServer RD650
Form FactorRack
CPU NameIntel Xeon E5-2699 v3
CPU Characteristics18-Core, 2.30GHz, 45MB L3 Cache (Turbo Boost Technology up to 3.60 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System36
Cores Per Chip18
Threads Per System72
Threads Per Core2
VersionNone
CPU Frequency (MHz)2300
Primary Cache32 KB(I) + 32 KB(D) on chip per core
Secondary Cache256 KB (I+D) on chip per core
Tertiary Cache45MB (I+D) on chip per chip
Other CacheNone
Disk1 x 240GB SATA SSD (INTEL SSDSC2BB240GL)
File Systemext4
Memory Amount (GB)512
# and size of DIMM(s)16 x 32GB
Memory DetailsHynix 32GB 4Rx4 PC4-2133P-LD0-07 HMA84GL7MMR4N-TF; CPU1: A1, B1, C1, D1, A2, B2, C2, D2; CPU2: A1, B1, C1, D1, A2, B2, C2, D2 are populated
# and type of Network Interface Cards (NICs)Intel 4 x 1GbE RJ45 Ports Assembly Mezz in card
Power Supply Quantity and Rating (W)1 x 750
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRedHat
Vendor URLhttp://www.redhat.com
VersionRed Hat Enterprise Linux 6.5
AvailableNov-2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u20
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot Server VM Version 1.8.0_20
AvailableAug-2014
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • C1E, C3, C6 set to disabled
  • Thermal Profile set to High Fan Speed
  • Memory Power Savings set to disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning
  • selinux disabled
  • GOVERNOR=performance in /etc/sysconfig/cpuspeed
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn3g -Xms4g -Xmx4g -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms236g -Xmx236g -Xmn176g -XX:SurvivorRatio=48 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=36 -XX:MaxTenuringThreshold=15 -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning Affinity Mask
  • numactl --cpunodebind=0 --membind=0
  • numactl --cpunodebind=1 --membind=1
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn3g -Xms4g -Xmx4g -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning Affinity Mask
  • numactl --cpunodebind=0 --membind=0
  • numactl --cpunodebind=1 --membind=1
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Pass Pass
jOPS 203687 205266 206845 208424 210003
critical-jOPS = Geomean ( jOPS @ 10000; 50000; 100000; 200000; 500000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 50000 100000 200000 500000 Geomean
jOPS 29210 52895 59211 68685 70264 53578
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1579 - / 1579 - / 1579 - / 1579 - / 1579 - / 1579
1000us 3158 / 4737 1579 / 3158 - / 1579 - / 1579 - / 1579 - / 1579
5000us 71054 / 72633 67896 / 69475 26842 / 28421 15790 / 17369 3158 / 4737 - / 1579
10000us 71054 / 72633 69475 / 71054 58422 / 60001 47369 / 48948 28421 / 30000 - / 1579
20000us 71054 / 72633 69475 / 71054 67896 / 69475 64738 / 66317 47369 / 39474 - / 1579
50000us 72633 / 74212 71054 / 72633 67896 / 69475 66317 / 67896 53685 / 52106 15790 / 1579
100000us 72633 / 74212 71054 / 72633 69475 / 71054 67896 / 69475 58422 / 60001 15790 / 1579
200000us 82106 / 75791 71054 / 72633 69475 / 71054 67896 / 69475 67896 / 69475 33158 / 7895
500000us 198950 / 104212 82106 / 80527 72633 / 74212 71054 / 72633 69475 / 71054 63159 / 64738
1000000us 205266 / - 205266 / 140528 86843 / 88422 82106 / 80527 74212 / 75791 67896 / 69475
Probes jOPS / Total jOPS

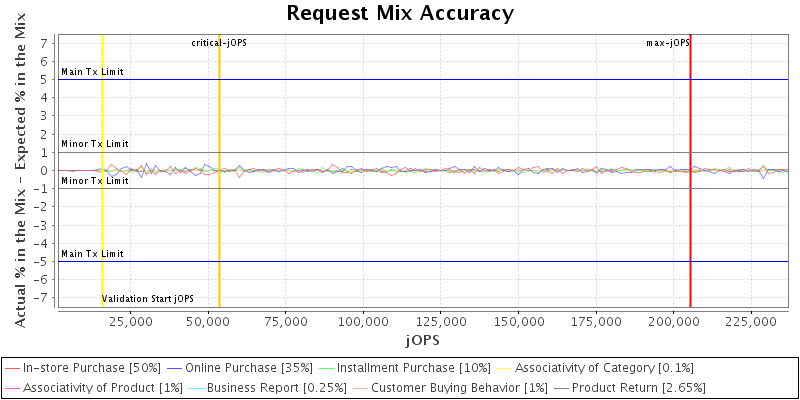

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

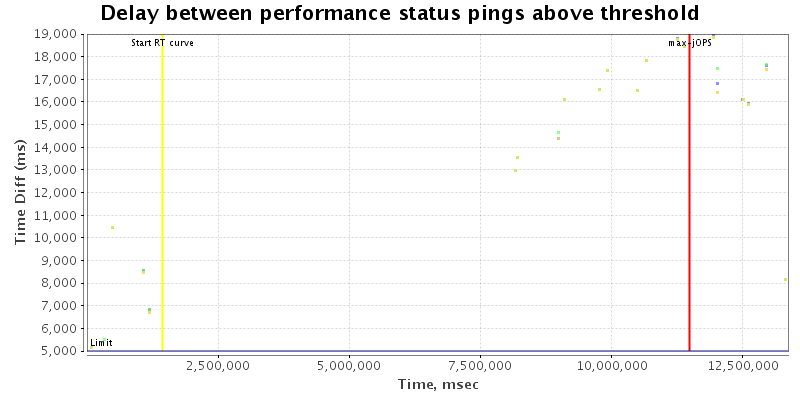

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.connpool.size 256 420
specjbb.comm.connect.pool.max 256 480
specjbb.comm.connect.timeouts.connect 60000 300000
specjbb.comm.connect.timeouts.read 60000 300000
specjbb.comm.connect.timeouts.write 60000 300000
specjbb.forkjoin.workers 72 108
specjbb.group.count 1 2
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 157897 IR
High-bound (settled) is 151303 IR
