SPECjbb2015
Copyright © 2015-2024 Standard Performance Evaluation Corporation
Hewlett-Packard Company Integrity Superdome X 416200 SPECjbb2015-MultiJVM max-jOPS
82508 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett-Packard Company Test Sponsor: Hewlett-Packard Company Test location: Palo Alto, CA Test date: Sep 3, 2015
SPEC license #: 3 Hardware Availability: Sep-2015 Software Availability: Jul-2015 Publication: MMM DD, YYYY
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 16)

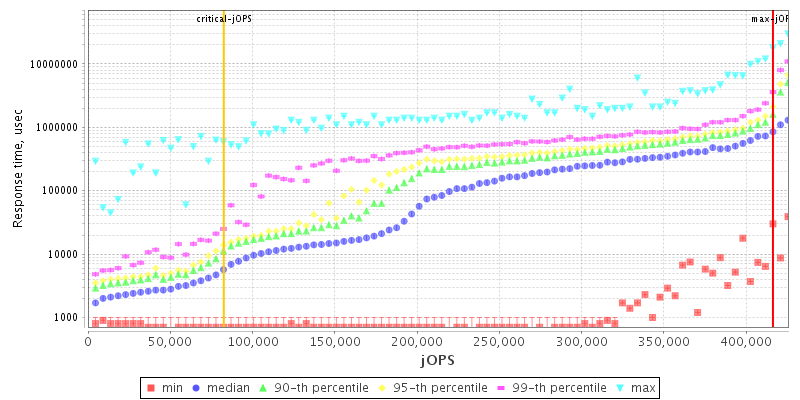

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips16
Total Cores288
Total Threads480
Total Memory Amount (GB)4096
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameIntegrity Superdome X
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com
AvailableSep-2015
ModelIntegrity Superdome X
Form Factor42U
CPU NameIntel Xeon E7-8890 v3
CPU Characteristics18 Core, 2.50 GHz, 45 MB L3 Cache (Turbo Boost Technology up to 3.30 GHz)
Number of Systems1
Nodes Per System1
Chips Per System16
Cores Per System256
Cores Per Chip18
Threads Per System512
Threads Per Core2
Version05/27/15
CPU Frequency (MHz)2500
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache45 MB I+D on chip per chip
Other CacheNone
Disk16 x 450 GB 10K RPM SAS
File SystemBTRFS, XFS
Memory Amount (GB)4096
# and size of DIMM(s)128 x 32 GB
Memory Details32 GB 4Rx4 PC4-2133P
# and type of Network Interface Cards (NICs)8 x FlexFabric 20 Gb 2-port 630FLB Adapter
Power Supply Quantity and Rating (W)3 x 550
Other Hardware8 x QMH2672 16 Gb FC HBA For BladeSystem C-Class
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_2
Name16Gb/28c Pwr Pk+ SAN Switch
VendorBrodcade
Vendor URLhttp://www.brodcade.com/
VersionNone
AvailableDec-2014
BitnessNone
NotesNone
Other Hardware network_1
Name6125XLG Blade Switch
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
VersionNone
AvailableJul-2014
BitnessNone
NotesNone
Other Hardware storage_1
Name3PAR StoreServ 7440 4-node
VendorHewlett-Packard Company
Vendor URLhttp://www.hp.com/
Version3.1.2.484 (MU3)
AvailableAug-2013
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12
VendorSUSE
Vendor URLhttp://www.suse.com/
Version3.12.28-4
AvailableOct-2014
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u51
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_51
AvailableJul-2015
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description os_1
Tuning
  • ulimit -v 800000000
  • ulimit -m 800000000
  • ulimit -l 800000000
  • ulimit -n 32768
  • /proc/sys/kernel/sched_latency_ns=8000000
  • /proc/sys/kernel/sched_min_granularity_ns=6000000
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line "-server -Xmx30g -Xms25g -Xmn25g -XX:+UseParallelOldGC"
Tuning numactl used to affinitize the Controller to a single NUMA node:
  • numactl --cpunodebind=3 --membind=3
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line "-server -Xmx200g -Xms200g -Xmn100g -XX:+UseParallelOldGC"
Tuning numactl used to affinitize each Backend JVM to a single NUMA node, eg:
  • numactl --cpunodebind=$gnum --membind=$gnum
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line "-server -Xmx30g -Xms25g -Xmn25g -XX:+UseParallelOldGC"
Tuning numactl used to affinitize each TxInjector JVM to a single NUMA node, eg:
  • numactl --cpunodebind=$gnum --membind=$gnum
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 407053 411627 416200 420774 425348
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 48023 84612 92997 98333 102906 82508
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 4574 - / 4574 - / 4574 - / 4574 - / 4574 - / 4574
1000us - / 4574 - / 4574 - / 4574 - / 4574 - / 4574 - / 4574
5000us 132635 / 137209 77752 / 82325 59457 / 64031 50310 / 41163 4574 / 9147 - / 4574
10000us 192092 / 196666 100620 / 105193 77752 / 82325 73178 / 77752 59457 / 36589 - / 4574
25000us 251550 / 256123 182945 / 187519 132635 / 137209 123488 / 128062 82325 / 86899 - / 4574
50000us 283565 / 288139 196666 / 201240 169224 / 173798 150930 / 146356 96046 / 86899 13721 / 4574
75000us 306433 / 311007 205813 / 210387 178372 / 182945 164651 / 155503 96046 / 100620 59457 / 4574
100000us 311007 / 315580 219534 / 224108 178372 / 182945 164651 / 160077 105193 / 100620 59457 / 4574
200000us 393332 / 379611 278991 / 283565 201240 / 205813 182945 / 187519 132635 / 128062 59457 / 4574
500000us 416200 / - 388759 / 393332 329301 / 333875 311007 / 315580 233255 / 228681 91473 / 22868
1000000us 416200 / - 416200 / - 402479 / 407053 397906 / 402479 370464 / 375038 141783 / 100620

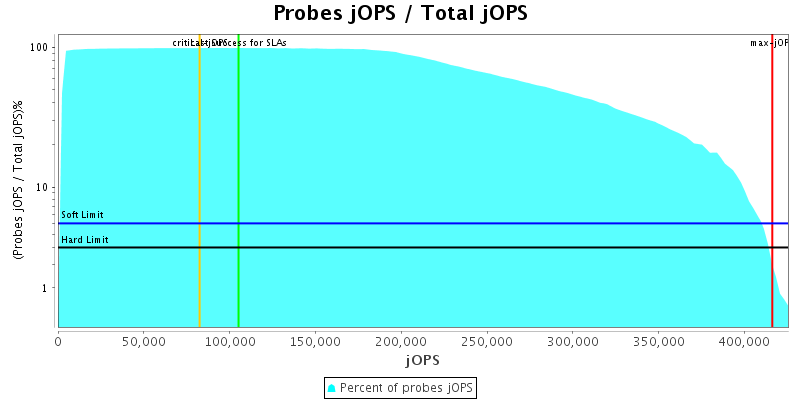

Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

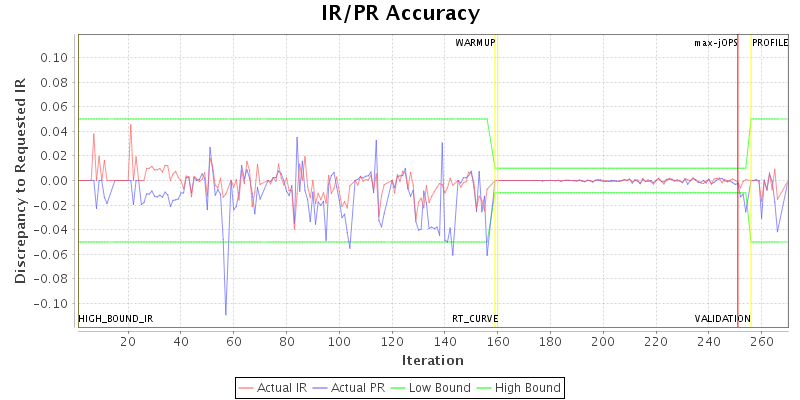

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 420
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 420
specjbb.controller.handshake.period 5000 20000
specjbb.controller.handshake.timeout 600000 800000
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.customerDriver.threads 64 128
specjbb.forkjoin.workers 576 288
specjbb.group.count 1 16
specjbb.heartbeat.period 10000 2000
specjbb.heartbeat.threshold 100000 600000
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 457363 IR
High-bound (settled) is 444408 IR
