Cisco Systems Cisco UCS C220 M4 92463 SPECjbb2015-MultiJVM max-jOPS
31654 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Cisco Systems Test Sponsor: Cisco Systems Test location: San Jose, CA Test date: Sep 5, 2015
SPEC license #: 9019 Hardware Availability: Dec-2014 Software Availability: Sep-2015 Publication: Sep 23, 2015
Benchmark Results Summary

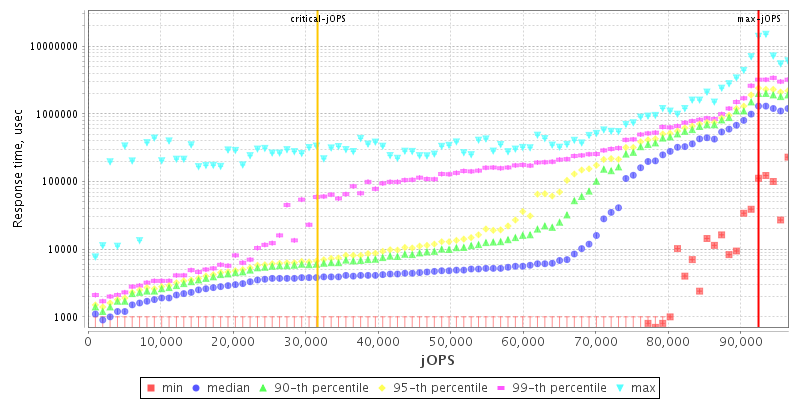

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorCisco Systems
Vendor URLhttp://www.cisco.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores36
Total Threads72
Total Memory Amount (GB)256
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameCisco UCS C220 M4
VendorCisco Systems
Vendor URLhttp://www.cisco.com/
AvailableDec-2014
ModelCisco UCS C220 M4
Form Factor1U
CPU NameIntel Xeon E5-2699 v3
CPU Characteristics18-Core, 2.30GHz (Turbo Boost Technology up to 3.60 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System36
Cores Per Chip18
Threads Per System72
Threads Per Core2
VersionNone
CPU Frequency (MHz)2300
Primary Cache32 KB(I)+32 KB(D)on chip per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache45MB (I+D) on chip per chip
Other CacheNone
Disk1x 300GB SSD
File SystemEXT3
Memory Amount (GB)256
# and size of DIMM(s)16 x 16GB
Memory Details256 GB (16 x 16 GB 2Rx4 PC4-2133P-R)
# and type of Network Interface Cards (NICs)2 X 1 Gbit NIC
Power Supply Quantity and Rating (W)2 x 770W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 6.5 (Santiago)
AvailableNov-2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u60
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_60
AvailableAug-2015
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance was set to Performance Mode
  • CPU Performance set to Enterprise
  • Memory RAS Configuration set to Maximum Performance
  • Processor C6 state set to enabled
  • Processor C1E set to disabled
  • COD enabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning
  • SE Linux = Disabled
  • tuned-adm throughput-performance profile used
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=18 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning Affinity Masks
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -showversion -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 91447 92463 93479 94495 95512
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 22862 28958 29974 37087 43183 31654
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1016 - / 1016 - / 1016 - / 1016 - / 1016 - / 1016
1000us 10161 / 11177 3048 / 1016 - / 1016 - / 1016 - / 1016 - / 1016
5000us 71126 / 72142 51820 / 52836 22354 / 23370 21338 / 22354 16257 / 17273 - / 1016
10000us 73158 / 74174 67061 / 68077 49788 / 50804 42675 / 43691 22354 / 23370 1016 / 2032
25000us 73158 / 74174 70110 / 71126 65029 / 66045 57917 / 58933 30482 / 27434 7113 / 3048
50000us 75190 / 76206 73158 / 74174 66045 / 67061 60965 / 61981 30482 / 29466 7113 / 3048
75000us 76206 / 77222 73158 / 74174 69093 / 70110 65029 / 66045 37595 / 36579 7113 / 3048
100000us 78238 / 79254 73158 / 74174 69093 / 70110 65029 / 66045 42675 / 43691 7113 / 3048
200000us 86367 / 84335 77222 / 78238 73158 / 74174 70110 / 71126 64013 / 65029 21338 / 5080
500000us 90431 / 91447 86367 / 87383 80270 / 81286 78238 / 79254 76206 / 77222 69093 / 70110
1000000us 92463 / - 91447 / 92463 88399 / 89415 88399 / 89415 87383 / 88399 81286 / 79254

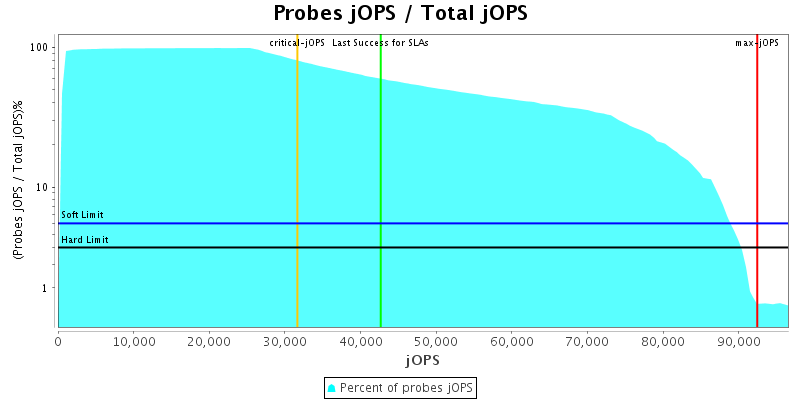

Probes jOPS / Total jOPS

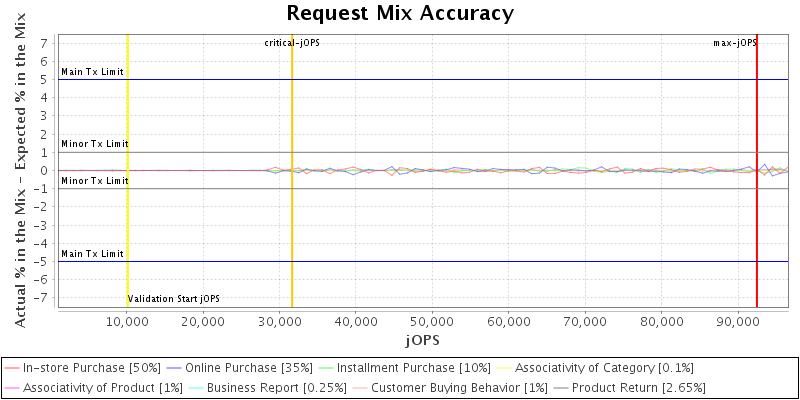

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

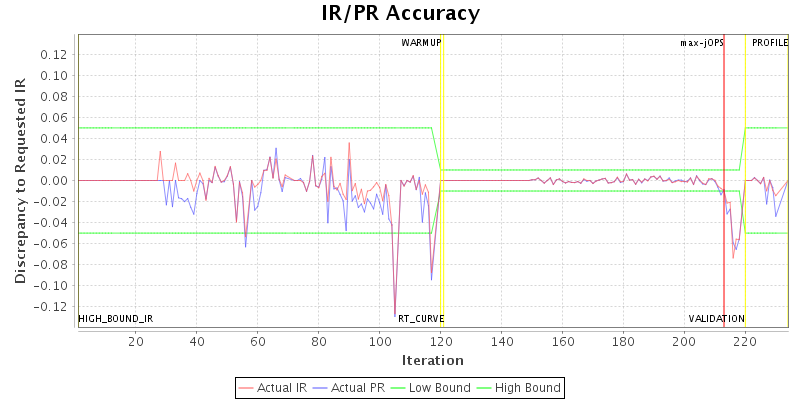

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.comm.connect.worker.pool.min 1 32
specjbb.forkjoin.workers 72 90
specjbb.group.count 1 4
specjbb.mapreducer.pool.size 72 18
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 101608 IR
High-bound (settled) is 97928 IR
