Huawei Technologies Co., Ltd FusionServer CH121 V3 98227 SPECjbb2015-MultiJVM max-jOPS
28810 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Huawei Technologies Co., Ltd Test Sponsor: Huawei Technologies Co., Ltd Test location: Shenzhen, China Test date: Dec 21, 2015
SPEC license #: 3175 Hardware Availability: Sep-2014 Software Availability: Oct-2015 Publication: Jan 21, 2016
Benchmark Results Summary

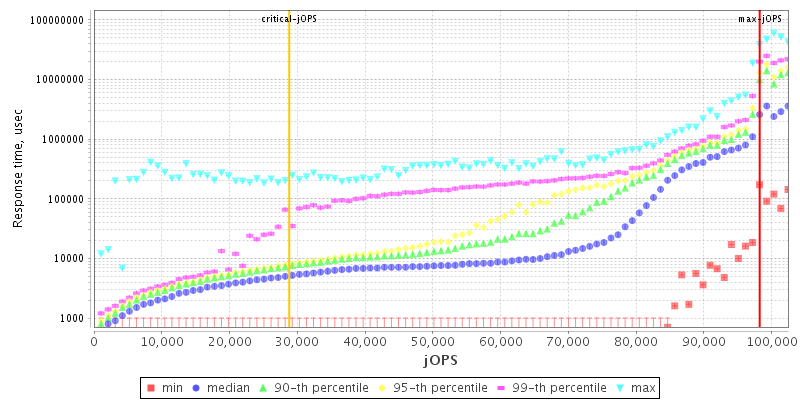

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com/
System SourceSingle Supplier
System DesignationBlade Server
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores36
Total Threads72
Total Memory Amount (GB)256
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameFusionServer CH121 V3
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com/
AvailableSep-2014
ModelFusionServer CH121 V3
Form FactorBlade Node in Chassis
CPU NameIntel Xeon E5-2699 v3
CPU Characteristics18-Core, 2.30GHz (Turbo Boost Technology up to 3.60 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System36
Cores Per Chip18
Threads Per System72
Threads Per Core2
VersionNone
CPU Frequency (MHz)2300
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache45MB (I+D) on chip per chip
Other CacheNone
Disk1x 480GB SSD
File SystemEXT4
Memory Amount (GB)256
# and size of DIMM(s)16 x 16GB
Memory Details256 GB (16 x 16 GB 2Rx4 PC4-2133P-R)
# and type of Network Interface Cards (NICs)4 x 1 Gbit NICs
Power Supply Quantity and Rating (W)1 x 2000W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 7.0 (Maipo)
AvailableJune-2014
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u66
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 1.8.0_66
AvailableOct-2015
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS tuning
  • Power Policy was set to Performance
  • COD mode was configured
  • Memory Patrol Scrub was set to Disabled
Notes notes
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • SE Linux = Disabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=18 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl was used to affinitize each Backend JVM to a single numa node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -showversion -Xmn1536m -Xms2g -Xmx2g
Tuning numactl was used to affinitize each TxInjector JVM to a single numa node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 97182 98227 99272 100317 101362
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 20376 25601 28736 33787 39186 28810
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1045 - / 1045 - / 1045 - / 1045 - / 1045 - / 1045
1000us 7315 / 8360 3135 / 4180 2090 / 3135 1045 / 2090 - / 1045 - / 1045
5000us 73148 / 74193 28214 / 29259 18809 / 19854 17764 / 18809 14630 / 15675 - / 1045
10000us 78373 / 79418 65833 / 66878 37619 / 38664 34484 / 35529 21944 / 18809 4180 / 1045
25000us 81508 / 82553 77328 / 78373 61653 / 62698 54338 / 55383 25079 / 26124 4180 / 3135
50000us 83598 / 84643 79418 / 80463 68968 / 70013 59563 / 60608 29259 / 28214 4180 / 3135
75000us 83598 / 84643 80463 / 81508 73148 / 74193 63743 / 62698 34484 / 32394 4180 / 3135
100000us 84643 / 85688 81508 / 82553 75238 / 76283 66878 / 67923 38664 / 39709 4180 / 3135
200000us 89867 / 90912 83598 / 84643 79418 / 80463 77328 / 78373 66878 / 67923 36574 / 5225
500000us 96137 / 97182 90912 / 91957 85688 / 86733 84643 / 85688 83598 / 84643 75238 / 68968
1000000us 98227 / - 96137 / 97182 94047 / 95092 91957 / 93002 89867 / 90912 83598 / 84643

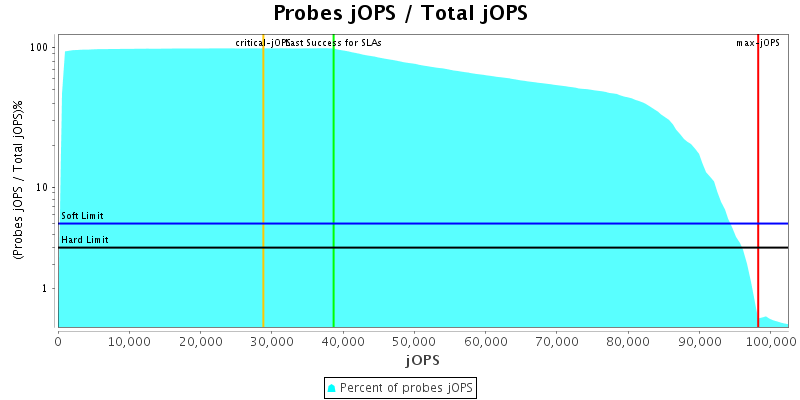

Probes jOPS / Total jOPS

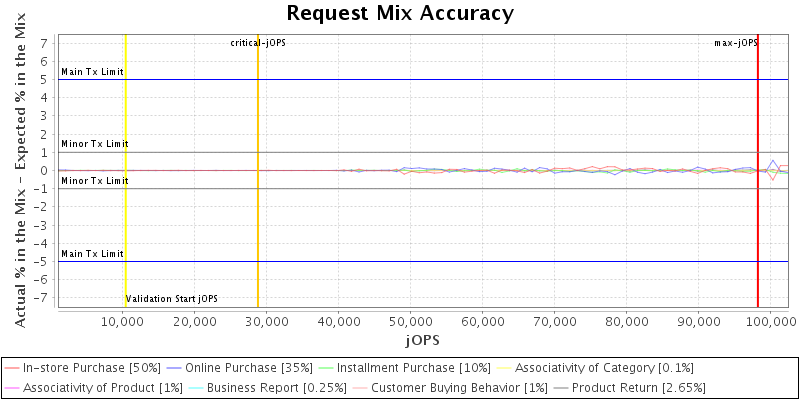

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

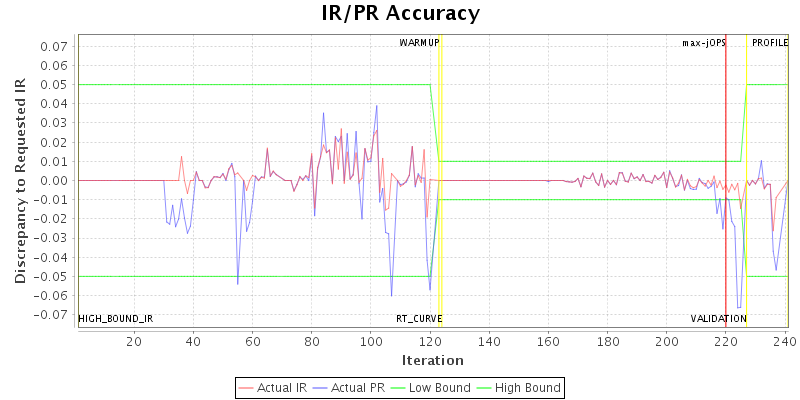

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 192
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 650000
specjbb.comm.connect.timeouts.read 60000 650000
specjbb.comm.connect.timeouts.write 60000 650000
specjbb.comm.connect.worker.pool.max 256 320
specjbb.customerDriver.threads 64 {=64, probe=96, saturate=96}
specjbb.forkjoin.workers 72 {Tier1=170, Tier2=60, Tier3=30}
specjbb.group.count 1 4
specjbb.mapreducer.pool.size 72 27
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 104497 IR
High-bound (settled) is 98137 IR
