Hewlett Packard Enterprise ProLiant DL360 Gen9 105420 SPECjbb2015-Composite max-jOPS
59541 SPECjbb2015-Composite critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: Mar 07, 2016
SPEC license #: 3 Hardware Availability: Mar 2016 Software Availability: Mar 2016 Publication: Mar 30, 2016
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips2
Total Cores44
Total Threads88
Total Memory Amount (GB)512 GB
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant DL360 Gen9
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableMar 2016
ModelProLiant DL360 Gen9
Form Factor1U Rack
CPU NameIntel Xeon E5-2699 v4
CPU Characteristics22-Core, 2.2 GHz, 55 MB L3 Cache (Turbo Boost Technology up to 3.6 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System44
Cores Per Chip22
Threads Per System88
Threads Per Core2
VersionP89 02/22/2016
CPU Frequency (MHz)2200
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache55 MB I+D on chip per chip
Other CacheNone
Disk2x 400 GB
File SystemXFS
Memory Amount (GB)512
# and size of DIMM(s)16x 32768 MB
Memory Details32 GB 2Rx4 PC4-2400T-R
# and type of Network Interface Cards (NICs)HPE Ethernet 1 Gb 4-Port
Power Supply Quantity and Rating (W)2 x 800
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server 7.2
VendorRedHat
Vendor URLhttp://redhat.com/
Version3.10.0-327
AvailableNov 2015
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u72
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_72
AvailableJan 2016
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Hyper Threading=Enabled
  • QPI Snoop Configuration=Early snoop
  • Power Profile=Maximum Performance
  • Thermal Configuration=Maximum Cooling
  • Collaborative Power Control=Disabled
  • Processor Power and Utilization Monitoring=Disabled
  • Memory Refresh Rate=1x Refresh
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line None
Tuning -server -Xms470g -Xmx470g -Xmn430g -XX:+AggressiveOpts -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:+UseNUMA -XX:+AlwaysPreTouch
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 104194 105420 106645 107871 109097
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 44946 55941 60882 66943 73023 59541
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1226 - / 1226 - / 1226 - / 1226 - / 1226 - / 1226
1000us 93162 / 94387 3677 / 4903 - / 1226 - / 1226 - / 1226 - / 1226
5000us 99291 / 100516 90710 / 91936 44129 / 45355 35548 / 36774 25742 / 26968 - / 1226
10000us 100516 / 101742 93162 / 94387 73549 / 74774 63742 / 62516 46581 / 44129 14710 / 6129
25000us 101742 / 102968 98065 / 99291 85807 / 87033 82129 / 80903 63742 / 51484 22065 / 6129
50000us 102968 / 104194 100516 / 101742 91936 / 93162 89484 / 88258 79678 / 51484 33097 / 6129
75000us 102968 / 104194 100516 / 101742 95613 / 94387 89484 / 90710 79678 / 58839 33097 / 6129
100000us 102968 / 104194 101742 / 102968 95613 / 96839 91936 / 90710 82129 / 66194 35548 / 6129
200000us 104194 / 105420 101742 / 102968 100516 / 101742 98065 / 96839 89484 / 88258 63742 / 28194
500000us 105420 / - 105420 / - 102968 / 104194 101742 / 102968 101742 / 102968 79678 / 76000
1000000us 105420 / - 105420 / - 105420 / - 105420 / - 105420 / - 89484 / 90710

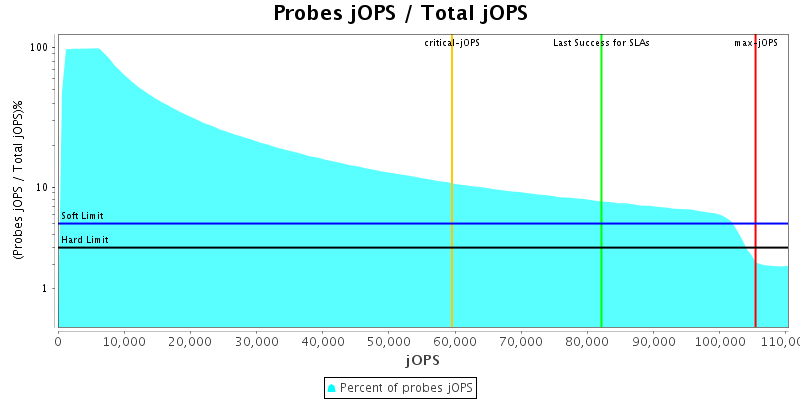

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

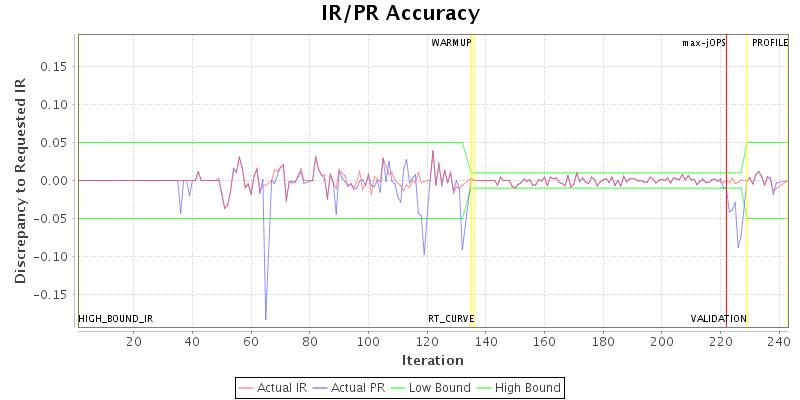

IR/PR Accuracy
This section lists properties only set by user
User did not set any property for this run

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 122581 IR
High-bound (settled) is 113616 IR
