Inspur Corporation Inspur NF5270M4 97551 SPECjbb2015-MultiJVM max-jOPS
28206 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Jinan, PRC Test date: Mar 15, 2016
SPEC license #: 3358 Hardware Availability: Dec-2014 Software Availability: Feb-2016 Publication: Apr 13, 2016
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores36
Total Threads72
Total Memory Amount (GB)256
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameInspur NF5270M4
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableDec-2014
ModelInspur NF5270M4
Form Factor2U
CPU NameIntel Xeon E5-2699 v3
CPU Characteristics18-Core, 2.30GHz (Turbo Boost Technology up to 3.60 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System36
Cores Per Chip18
Threads Per System72
Threads Per Core2
VersionNone
CPU Frequency (MHz)2300
Primary Cache32 KB(I)+32 KB(D)on chip per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache45MB (I+D) on chip per chip
Other CacheNone
Disk1x 80GB SSD
File Systemext4
Memory Amount (GB)256
# and size of DIMM(s)16 x 16GB
Memory Details256 GB (16 x 16 GB 2Rx4 PC4-2133P-R)
# and type of Network Interface Cards (NICs)Intel I350 OnBoard LAN
Power Supply Quantity and Rating (W)1 x 550W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 6.5 (Santiago)
AvailableNov-2013
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u74
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_74
AvailableFeb-2016
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance was set to Performance Mode
  • Processor C0/C1 state set to enabled
  • Processor C1E set to disabled
  • COD enabled
  • Early Snoop disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • tuned-adm profile throughput-performance
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=18 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -showversion -Xmn1536m -Xms2g -Xmx2g
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 96430 97551 98673 99794 100915
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 21865 22986 28592 33077 37563 28206
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1121 - / 1121 - / 1121 - / 1121 - / 1121 - / 1121
1000us 5606 / 6728 2243 / 3364 - / 1121 - / 1121 - / 1121 - / 1121
5000us 67277 / 68398 28032 / 29153 19062 / 20183 17940 / 19062 13455 / 14577 - / 1121
10000us 69519 / 70641 63913 / 65034 37002 / 38124 34760 / 35881 21304 / 22426 - / 1121
25000us 70641 / 71762 68398 / 69519 59428 / 60549 52700 / 53821 23547 / 22426 5606 / 2243
50000us 71762 / 72883 69519 / 70641 63913 / 65034 58307 / 59428 28032 / 29153 5606 / 2243
75000us 72883 / 74004 70641 / 71762 66156 / 67277 58307 / 59428 32517 / 33638 5606 / 2243
100000us 74004 / 75126 70641 / 71762 66156 / 67277 62792 / 63913 38124 / 37002 5606 / 2243
200000us 86339 / 81853 74004 / 75126 70641 / 71762 68398 / 69519 62792 / 63913 5606 / 2243
500000us 96430 / 97551 88581 / 89702 79611 / 80732 78490 / 79611 74004 / 75126 68398 / 67277
1000000us 97551 / - 96430 / 97551 94188 / 95309 93066 / 94188 90824 / 91945 78490 / 79611

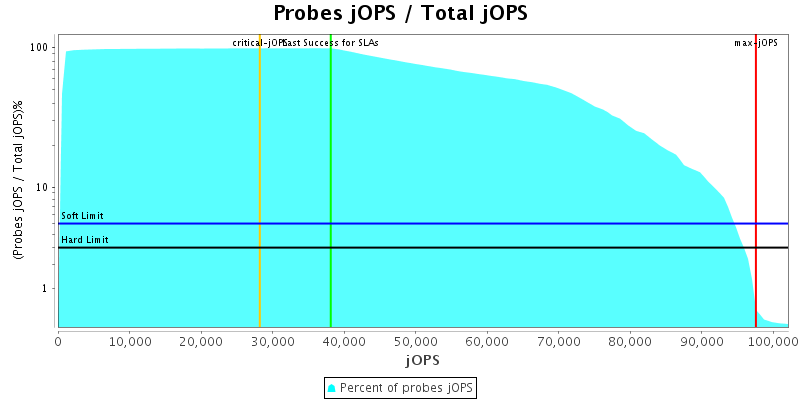

Probes jOPS / Total jOPS

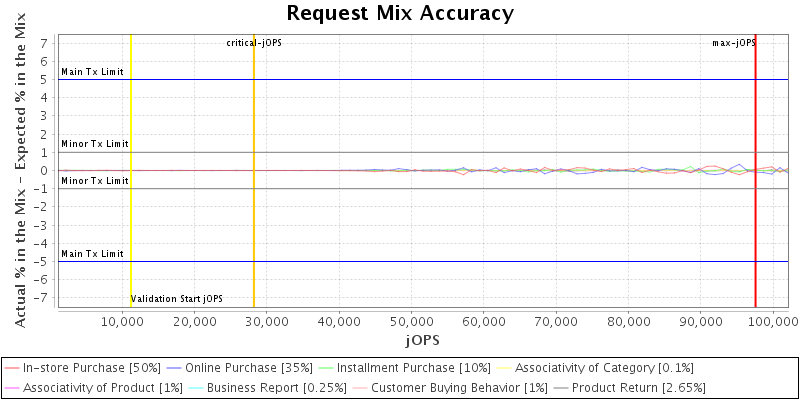

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 256
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 650000
specjbb.comm.connect.timeouts.read 60000 650000
specjbb.comm.connect.timeouts.write 60000 650000
specjbb.comm.connect.worker.pool.max 256 320
specjbb.customerDriver.threads 64 {probe=96, saturate=144, service=64}
specjbb.forkjoin.workers 72 {Tier1=140, Tier2=40, Tier3=20}
specjbb.group.count 1 4
specjbb.mapreducer.pool.size 72 27
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 112128 IR
High-bound (settled) is 104497 IR
