Hewlett Packard Enterprise ProLiant DL580 Gen9 219329 SPECjbb2015-MultiJVM max-jOPS
37996 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: May 9, 2016
SPEC license #: 3 Hardware Availability: May-2016 Software Availability: Apr-2016 Publication: Jun 06, 2016
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips4
Total Cores96
Total Threads192
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant DL580 Gen9
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableMay-2016
ModelProLiant DL580 Gen9
Form Factor4U Rack
CPU NameIntel Xeon E7-8890 v4
CPU Characteristics24 Core, 2.20 GHz, 60 MB L3 Cache (Turbo Boost Technology up to 3.4 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System96
Cores Per Chip24
Threads Per System192
Threads Per Core2
VersionU17 04/26/2016
CPU Frequency (MHz)2200
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache60 MB I+D on chip per chip
Other CacheNone
Disk1 x 400 GB SSD SAS
File SystemXFS
Memory Amount (GB)512
# and size of DIMM(s)32 x 16384 MB
Memory Details16 GB 2Rx4 PC4-2400T-R, running at 1600MHz
# and type of Network Interface Cards (NICs)HP Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)4 x 1500
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12 SP1
VendorSUSE
Vendor URLhttps://www.suse.com/
Version3.12.49-11-default
AvailableDec-2015
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u92
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_92
AvailableApr-2016
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Hyper Threading=Enabled
  • QPI Snoop Configuration=Cluster on Die
  • Thermal Configuration=Maximum Cooling
  • Power Profile=Maximum Performance
  • Collaborative Power Control=Disabled
  • Processor Power and Utilization Monitoring=Disabled
  • Memory PreFailure Notification=Disabled
  • Memory Patrol Scrub=Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • tuned-adm profile=throughput-performance
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • Added 'nosoftlockup intel_idle.max_cstate=0 mce=ignore_ce idle=poll' to GRUB_CMDLINE_LINUX_DEFAULT
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=1
Tuning

Used numactl to interleave memory on all nodes

  • numactl --interleave=all
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=24 -XX:MaxTenuringThreshold=15 -Xnoclassgc -XX:+PrintGCDetails -XX:+PrintGCTimeStamps

Tuning

Used numactl to affinitize each Backend JVM to physical cores in a NUMA node.

  • numactl --physcpubind=0-11,96-107 --membind=0
  • numactl --physcpubind=12-23,108-119 --membind=1
  • numactl --physcpubind=24-35,120-131 --membind=2
  • numactl --physcpubind=36-47,132-143 --membind=3
  • numactl --physcpubind=48-59,144-155 --membind=4
  • numactl --physcpubind=60-71,156-167 --membind=5
  • numactl --physcpubind=72-83,168-179 --membind=6
  • numactl --physcpubind=84-95,180-191 --membind=7
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=2
Tuning

Used numactl to affinitize each Transaction Injector JVM to a physical core in a NUMA node.

  • numactl --physcpubind=0 --membind=0
  • numactl --physcpubind=12 --membind=1
  • numactl --physcpubind=24 --membind=2
  • numactl --physcpubind=36 --membind=3
  • numactl --physcpubind=48 --membind=4
  • numactl --physcpubind=60 --membind=5
  • numactl --physcpubind=72 --membind=6
  • numactl --physcpubind=84 --membind=7
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 216892 219329 221766 224203 226640
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 23151 37773 40210 45084 49958 37996
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 2437 - / 2437 - / 2437 - / 2437 - / 2437 - / 2437
1000us 7311 / 9748 2437 / 4874 - / 2437 - / 2437 - / 2437 - / 2437
5000us 114539 / 116976 21933 / 24370 14622 / 17059 14622 / 17059 9748 / 12185 - / 2437
10000us 158404 / 160841 48740 / 51177 31681 / 34118 26807 / 29244 21933 / 24370 - / 2437
25000us 173026 / 175463 153530 / 155967 114539 / 109665 75547 / 73110 38992 / 36555 9748 / 7311
50000us 177900 / 180337 165715 / 168152 134034 / 136471 102354 / 99917 43866 / 36555 9748 / 7311
75000us 182774 / 185211 170589 / 173026 143782 / 141345 112102 / 114539 43866 / 46303 9748 / 7311
100000us 185211 / 187648 175463 / 177900 146219 / 148656 124286 / 114539 48740 / 51177 9748 / 7311
200000us 209581 / 207144 185211 / 187648 168152 / 170589 158404 / 155967 129160 / 131597 9748 / 7311
500000us 216892 / 219329 209581 / 212018 199833 / 202270 194959 / 197396 185211 / 187648 138908 / 53614
1000000us 219329 / - 216892 / 219329 212018 / 214455 212018 / 214455 209581 / 212018 192522 / 194959
Probes jOPS / Total jOPS

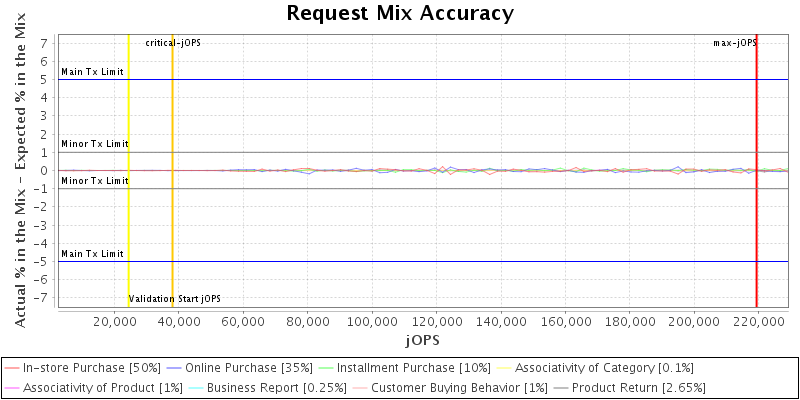

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

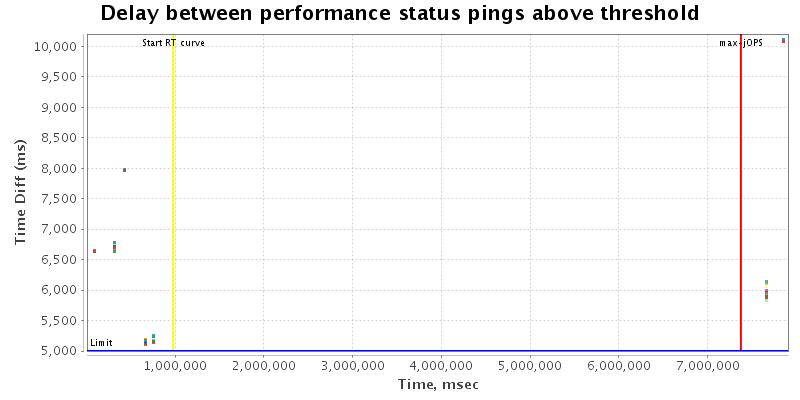

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 192
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 700000
specjbb.comm.connect.timeouts.read 60000 700000
specjbb.comm.connect.timeouts.write 60000 700000
specjbb.comm.connect.worker.pool.max 256 120
specjbb.forkjoin.workers 192 {Tier1=135, Tier2=67, Tier3=25}
specjbb.group.count 1 8
specjbb.heartbeat.threshold 100000 200000
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 243699 IR
High-bound (settled) is 234866 IR
