Cisco Systems Cisco UCS C460 M4 218425 SPECjbb2015-MultiJVM max-jOPS
75259 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Cisco Systems Test Sponsor: Cisco Systems Test location: San Jose, CA Test date: May 3, 2016
SPEC license #: 9019 Hardware Availability: June-2016 Software Availability: June-2016 Publication: Jun 06, 2016
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorCisco Systems
Vendor URLhttp://www.cisco.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores96
Total Threads192
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameCisco UCS C460 M4
VendorCisco Systems
Vendor URLhttp://www.cisco.com
AvailableJune-2016
ModelCisco UCS C460 M4
Form Factor4U Rack
CPU NameIntel Xeon E7-8890 v4
CPU Characteristics24Cores, 2.20 GHz, 60MB L3 Cache (Turbo Boost Technology up to 3.4 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System96
Cores Per Chip24
Threads Per System192
Threads Per Core2
VersionNone
CPU Frequency (MHz)2200
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache60MB (I+D) on chip per chip
Other CacheNone
Disk1x 300GB 15K RPM SAS
File Systemext4
Memory Amount (GB)1024
# and size of DIMM(s)64 x 16 GB
Memory Details16 GB 2Rx4 PC4-2400T-R, running at 1600 MHz
# and type of Network Interface Cards (NICs)1x 1 Gbit NIC
Power Supply Quantity and Rating (W)4 x 1400W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server 6.7
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 6.7
AvailableJuly-2015
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u91
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_91
AvailableApril-2016
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning BIOS tuning
  • Energy Performance set to Performance Mode
  • CPU Performance set to Enterprise
  • Memory Low Voltage DDR Mode set to Performance Mode
  • Processor C6 Report set to disabled
  • QPI Snoop Mode set to Cluster On Die
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • SE Linux = Disabled
  • tuned-adm profile set to Throughput Performance
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -XX:AllocatePrefetchInstr=2 -XX:AllocatePrefetchLines=5 -XX:+AlwaysPreTouch -Xms29g -Xmx29g -Xmn27g -server -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=24 -XX:MaxTenuringThreshold=15
Tuning numactl used to affinitize each Backend JVM to a single memory node
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
  • numactl --cpunodebind=4 --localalloc
  • numactl --cpunodebind=5 --localalloc
  • numactl --cpunodebind=6 --localalloc
  • numactl --cpunodebind=7 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 213728 216077 218425 220774 223123
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 57542 59499 76331 90423 102166 75259
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 2349 - / 2349 - / 2349 - / 2349 - / 2349 - / 2349
1000us 11743 / 2349 - / 2349 - / 2349 - / 2349 - / 2349 - / 2349
5000us 178498 / 180847 138571 / 140920 70460 / 72808 54019 / 56368 37579 / 39927 - / 2349
10000us 185544 / 187893 166755 / 169104 124479 / 126828 108038 / 110387 58716 / 56368 2349 / 4697
25000us 187893 / 190241 178498 / 180847 157360 / 159709 138571 / 140920 61065 / 56368 7046 / 9395
50000us 192590 / 194939 183195 / 185544 164406 / 166755 145617 / 147966 79854 / 72808 7046 / 9395
75000us 194939 / 197287 185544 / 187893 169104 / 171452 152663 / 155012 89249 / 91598 7046 / 9395
100000us 197287 / 199636 187893 / 190241 171452 / 173801 157360 / 159709 100992 / 103341 7046 / 9395
200000us 201985 / 204333 194939 / 197287 183195 / 185544 176149 / 178498 157360 / 155012 39927 / 9395
500000us 216077 / 218425 206682 / 209031 197287 / 199636 194939 / 197287 190241 / 192590 162058 / 145617
1000000us 218425 / - 218425 / - 211379 / 213728 209031 / 211379 204333 / 206682 192590 / 190241
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

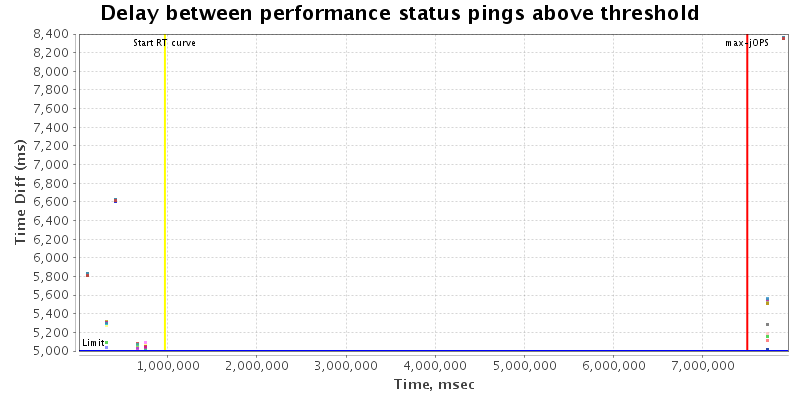

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.forkjoin.workers 192 {Tier1=260, Tier2=70, Tier3=30}
specjbb.group.count 1 8
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 234866 IR
High-bound (settled) is 227505 IR
