Inspur Corporation Inspur TS860G3 397601 SPECjbb2015-MultiJVM max-jOPS
124466 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Beijing, PRC Test date: May 16, 2016
SPEC license #: 3358 Hardware Availability: Jun-2016 Software Availability: Apr-2016 Publication: Jun 13, 2016
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips8
Total Cores192
Total Threads384
Total Memory Amount (GB)2048
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameInspur TS860G3
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableJun-2016
ModelInspur TS860G3
Form Factor8U
CPU NameIntel Xeon E7-8890 v4
CPU Characteristics24-Core, 2.20GHz , 60MB L3 Cache(Turbo Boost Technology up to 3.40 GHz)
Number of Systems1
Nodes Per System1
Chips Per System8
Cores Per System192
Cores Per Chip24
Threads Per System384
Threads Per Core2
VersionNone
CPU Frequency (MHz)2200
Primary Cache32 KB(I)+32 KB(D)on chip per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache60MB (I+D) on chip per chip
Other CacheNone
Disk4 x 600GB SAS, Raid 0
File Systemxfs
Memory Amount (GB)2048
# and size of DIMM(s)128 x 16GB
Memory Details2048 GB (128 x 16 GB 2Rx4 PC4-2133P-R), running at 1600 MHz
# and type of Network Interface Cards (NICs)None
Power Supply Quantity and Rating (W)4 x 2000W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 7.2 (Maipo)
AvailableNov-2015
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u91
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_91
AvailableApr-2016
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance was set to Performance Mode
  • Memory Patrol Scrub enabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • tuned-adm profile throughput-performance
  • SELinux=disabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=48 -XX:MaxTenuringThreshold=15 -XX:-UsePerfData -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 392868 397601 402335 407068 411801
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 82833 92300 125433 158567 196434 124466
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 4733 - / 4733 - / 4733 - / 4733 - / 4733 - / 4733
1000us 9467 / 14200 - / 4733 - / 4733 - / 4733 - / 4733 - / 4733
5000us 359735 / 364468 312401 / 317134 99400 / 104134 52067 / 47333 37867 / 42600 - / 4733
10000us 359735 / 364468 326601 / 331334 222467 / 227201 184601 / 189334 80467 / 85200 - / 4733
25000us 369201 / 373935 350268 / 355001 288734 / 293468 236667 / 241401 94667 / 89934 - / 4733
50000us 369201 / 373935 355001 / 359735 302934 / 307668 260334 / 265068 123067 / 127800 9467 / 14200
75000us 373935 / 378668 359735 / 364468 312401 / 317134 274534 / 279268 156201 / 160934 9467 / 14200
100000us 378668 / 383401 359735 / 364468 317134 / 321868 288734 / 293468 194067 / 198801 9467 / 14200
200000us 388135 / 392868 369201 / 373935 345535 / 350268 326601 / 331334 317134 / 321868 170401 / 23667
500000us 392868 / 397601 388135 / 392868 373935 / 378668 369201 / 373935 359735 / 364468 312401 / 293468
1000000us 397601 / - 392868 / 397601 388135 / 392868 388135 / 392868 383401 / 388135 355001 / 345535
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

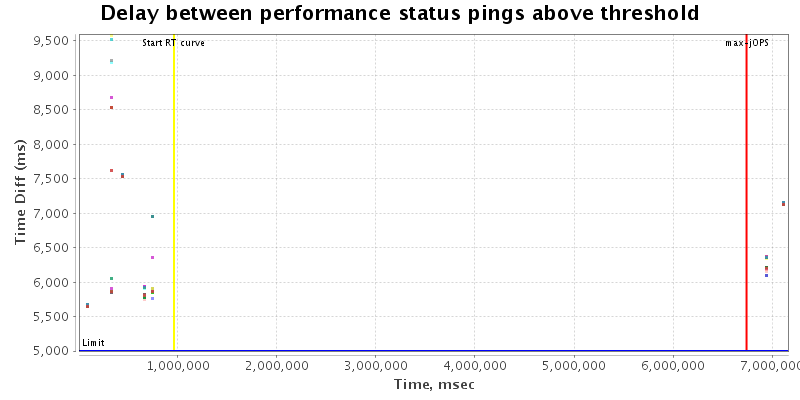

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 8
specjbb.comm.connect.timeouts.connect 60000 650000
specjbb.comm.connect.timeouts.read 60000 650000
specjbb.comm.connect.timeouts.write 60000 650000
specjbb.comm.connect.worker.pool.max 256 320
specjbb.forkjoin.workers 384 {Tier1=240, Tier2=69, Tier3=32}
specjbb.group.count 1 8
specjbb.mapreducer.pool.size 384 36
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 473335 IR
High-bound (settled) is 420137 IR
