Huawei Technologies Co., Ltd FusionServer RH2288H V3 121381 SPECjbb2015-MultiJVM max-jOPS
38595 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Huawei Technologies Co., Ltd Test Sponsor: Huawei Technologies Co., Ltd Test location: Huawei Technologies Co., Ltd Test date: May 20, 2016
SPEC license #: 3175 Hardware Availability: Mar-2016 Software Availability: Oct-2015 Publication: Jun 13, 2016
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores44
Total Threads88
Total Memory Amount (GB)256
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameFusionServer RH2288H V3
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com/
AvailableMar-2016
ModelFusionServer RH2288H V3
Form Factor2U
CPU NameIntel Xeon E5-2699 v4
CPU Characteristics22-Core, 2.20GHz, 55MB L3 Cache (Turbo Boost Technology up to 2.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System44
Cores Per Chip22
Threads Per System88
Threads Per Core2
VersionNone
CPU Frequency (MHz)2200
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache55MB (I+D) on chip per chip
Other CacheNone
Disk1x 600GB 10K RPM
File SystemEXT4
Memory Amount (GB)256
# and size of DIMM(s)16 x 16GB
Memory Details256 GB (16 x 16 GB 2Rx8 PC4-2400T-R)
# and type of Network Interface Cards (NICs)4 x 1 Gbit NICs
Power Supply Quantity and Rating (W)2 x 750W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat
Vendor URLhttp://www.redhat.com
VersionRed Hat Enterprise Linux Server release 6.7 (Santiago)
AvailableJul-2015
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u92
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 1.8.0_92
AvailableApr-2016
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS tuning
  • Turbo mode was enabled
  • Power Policy was set to Performance
  • COD mode was configured
  • Memory Patrol Scrub was set to Disabled
  • Power Performance Tuning was set to performance
Notes notes
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • SE Linux = Disabled
  • tuned-adm acive profile was throughput-performance
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=22 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl was used to affinitize each Backend JVM to a single numa node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -showversion -Xmn1536m -Xms2g -Xmx2g
Tuning numactl was used to affinitize each TxInjector JVM to a single numa node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 119970 121381 122793 124204 125615
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 28934 31756 37402 44695 55750 38595
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 1411 / 2823 - / 1411 - / 1411 - / 1411 - / 1411 - / 1411
1000us 12703 / 14114 5646 / 7057 2823 / 4234 2823 / 4234 - / 1411 - / 1411
5000us 100210 / 101622 36697 / 38108 25405 / 26817 23994 / 25405 19760 / 21171 - / 1411
10000us 103033 / 104444 94564 / 95976 69159 / 70570 53634 / 55045 28228 / 29640 1411 / 2823
25000us 107267 / 108679 101622 / 103033 86096 / 87507 71982 / 73393 32462 / 31051 4234 / 2823
50000us 107267 / 108679 103033 / 104444 93153 / 94564 79039 / 80450 36697 / 38108 4234 / 2823
75000us 108679 / 110090 104444 / 105856 95976 / 97387 83273 / 84685 46577 / 43754 4234 / 2823
100000us 108679 / 110090 104444 / 105856 98799 / 100210 88919 / 90330 55045 / 56456 4234 / 2823
200000us 114324 / 115736 107267 / 108679 103033 / 104444 100210 / 101622 91742 / 93153 4234 / 2823
500000us 119970 / 121381 114324 / 115736 108679 / 110090 107267 / 108679 105856 / 107267 97387 / 94564
1000000us 121381 / - 119970 / 121381 118558 / 119970 115736 / 117147 111501 / 112913 105856 / 107267
Probes jOPS / Total jOPS

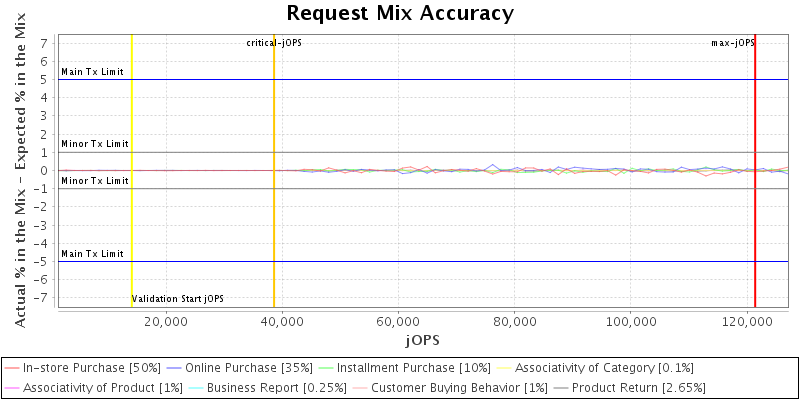

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

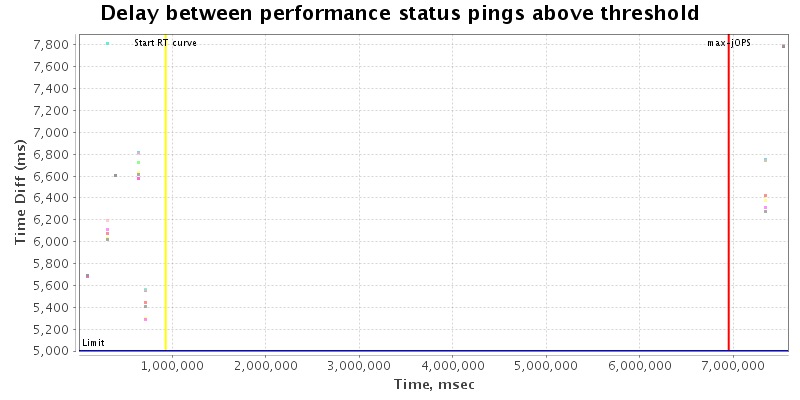

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 192
specjbb.comm.connect.timeouts.connect 60000 650000
specjbb.comm.connect.timeouts.read 60000 650000
specjbb.customerDriver.threads 64 {probe=96, saturate=96}
specjbb.forkjoin.workers 88 {Tier1=170, Tier2=60, Tier3=30}
specjbb.group.count 1 4
specjbb.mapreducer.pool.size 88 33
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 141141 IR
High-bound (settled) is 133510 IR
