Hewlett Packard Enterprise ProLiant DL580 Gen9 186337 SPECjbb2015-Composite max-jOPS
86878 SPECjbb2015-Composite critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: January 20, 2017
SPEC license #: 3 Hardware Availability: Jan-2017 Software Availability: Jan-2017 Publication: Mar 30, 2017
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips4
Total Cores96
Total Threads192
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant DL580 Gen9
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableJan-2017
ModelProLiant DL580 Gen9
Form Factor4U Rack
CPU NameIntel Xeon E7-8894 v4
CPU Characteristics24 Core, 2.40 GHz, 60 MB L3 Cache (Turbo Boost Technology up to 3.4 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System96
Cores Per Chip24
Threads Per System192
Threads Per Core2
VersionU17 12/08/2016
CPU Frequency (MHz)2400
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache60 MB I+D on chip per chip
Other CacheNone
Disk1 x 400 GB SSD SAS
File SystemXFS
Memory Amount (GB)512
# and size of DIMM(s)32 x 16384 MB
Memory Details16 GB 2Rx4 PC4-2400T-R, running at 1600MHz
# and type of Network Interface Cards (NICs)HP Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)4 x 1200
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12 SP1
VendorSUSE
Vendor URLhttps://www.suse.com/
Version3.12.49-11-default
AvailableDec-2015
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u121
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 1.8.0_121
AvailableJan-2017
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Hyper Threading=Enabled
  • QPI Snoop Configuration=Home Snoop
  • Power Profile=Maximum Performance
  • Thermal Configuration=Maximum Cooling
  • Collaborative Power Control=Disabled
  • Processor Power and Utilization Monitoring=Disabled
  • Memory Patrol Scrub=Disabled
  • Memory Refresh Rate=1x Refresh
  • Memory PreFailure Notification=Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • tuned-adm profile=throughput-performance
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms500g -Xmx500g -Xmn470g -XX:+AggressiveOpts -XX:+UseLargePages -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=15 -XX:AllocatePrefetchInstr=2 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:+UseNUMA -XX:+AlwaysPreTouch
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 184220 186337 188455 190572 192690
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 67230 81441 91757 94227 104549 86878
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 2117 - / 2117 - / 2117 - / 2117 - / 2117 - / 2117
1000us 165163 / 167280 4235 / 6352 2117 / 4235 - / 2117 - / 2117 - / 2117
5000us 177867 / 179985 158810 / 160928 93169 / 82581 59289 / 61407 44467 / 42349 - / 2117
10000us 177867 / 179985 163045 / 165163 114343 / 116461 103756 / 105873 84699 / 61407 14822 / 4235
25000us 182102 / 184220 173633 / 175750 148223 / 150340 133401 / 135518 93169 / 67759 23292 / 4235
50000us 182102 / 184220 173633 / 175750 150340 / 152458 133401 / 135518 93169 / 88934 50819 / 6352
75000us 182102 / 184220 175750 / 177867 150340 / 152458 139753 / 135518 99521 / 88934 69877 / 6352
100000us 182102 / 184220 175750 / 177867 156693 / 158810 148223 / 141870 110108 / 95286 69877 / 6352
200000us 184220 / 186337 175750 / 177867 158810 / 160928 150340 / 152458 131283 / 118578 93169 / 6352
500000us 186337 / - 186337 / - 173633 / 171515 173633 / 171515 158810 / 154575 141870 / 78346
1000000us 186337 / - 186337 / - 186337 / - 186337 / - 186337 / - 160928 / 163045
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

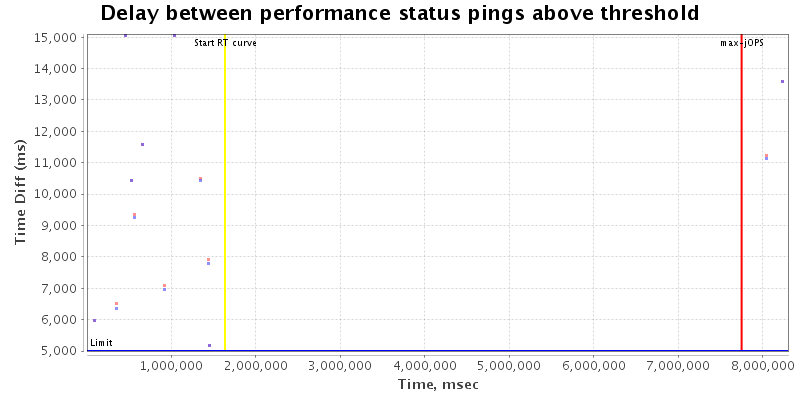

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 300
specjbb.comm.connect.worker.pool.max 256 300
specjbb.forkjoin.workers 192 {Tier1=180, Tier2=90, Tier3=38}
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 211747 IR
High-bound (settled) is 199894 IR
