Inspur Corporation Inspur NF5280M4 122829 SPECjbb2015-MultiJVM max-jOPS
39635 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Jinan, PRC Test date: May 18, 2017
SPEC license #: 3358 Hardware Availability: Nov-2016 Software Availability: Apr-2017 Publication: Jun 09, 2017
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores44
Total Threads88
Total Memory Amount (GB)256
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameInspur NF5280M4
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableNov-2016
ModelInspur NF5280M4
Form Factor2U
CPU NameIntel Xeon E5-2699A v4
CPU Characteristics22-Core, 2.40GHz,55MB L3 Cache(Turbo Boost Technology up to 3.60 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System44
Cores Per Chip22
Threads Per System88
Threads Per Core2
VersionNone
CPU Frequency (MHz)2400
Primary Cache32 KB(I)+32 KB(D)on chip per core
Secondary Cache256 KB (I+D) per core
Tertiary Cache55MB (I+D) on chip per chip
Other CacheNone
Disk1x 200GB SSD
File Systemxfs
Memory Amount (GB)256
# and size of DIMM(s)16 x 16GB
Memory Details16 GB 2Rx8 PC4-2400T-R
# and type of Network Interface Cards (NICs)1 x 1 Gbit NIC
Power Supply Quantity and Rating (W)1 x 550W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 7.3
AvailableNov-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u131
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_131
AvailableApr-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance set to Performance
  • Processor C0/C1 state set to enabled
  • Processor C1E set to disabled
  • COD enabled
  • Early Snoop disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • tuned-adm profile throughput-performance
  • SELinux disabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=22 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 121494 122829 124164 125499 126834
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 30262 31374 39608 45838 56741 39635
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 1335 / 2670 - / 1335 - / 1335 - / 1335 - / 1335 - / 1335
1000us 13351 / 14686 5340 / 6675 2670 / 4005 2670 / 4005 - / 1335 - / 1335
5000us 109478 / 110813 96127 / 97462 36048 / 37383 24032 / 25367 20026 / 21362 - / 1335
10000us 110813 / 112148 104138 / 105473 80106 / 81441 65420 / 64085 32042 / 29372 6675 / 2670
25000us 113483 / 114819 106808 / 108143 92122 / 93457 77436 / 78771 32042 / 30707 6675 / 2670
50000us 113483 / 114819 109478 / 110813 94792 / 96127 80106 / 81441 41388 / 38718 6675 / 2670
75000us 113483 / 114819 109478 / 110813 96127 / 97462 86781 / 88117 46728 / 44058 6675 / 2670
100000us 114819 / 116154 110813 / 112148 100132 / 101468 90787 / 89452 56074 / 57409 6675 / 2670
200000us 117489 / 118824 113483 / 114819 106808 / 105473 102803 / 104138 92122 / 93457 38718 / 2670
500000us 121494 / 122829 117489 / 118824 113483 / 114819 113483 / 114819 110813 / 112148 96127 / 97462
1000000us 121494 / 122829 121494 / 122829 120159 / 121494 118824 / 120159 117489 / 118824 112148 / 113483
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

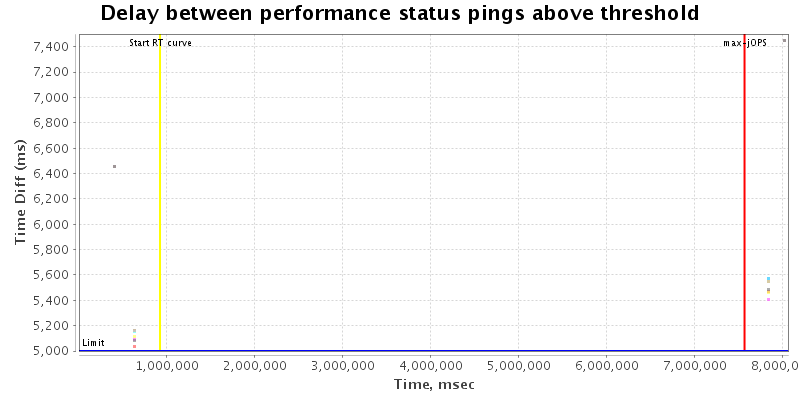

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 192
specjbb.comm.connect.selector.runner.count 0 4
specjbb.forkjoin.workers 88 {Tier1=128, Tier2=63, Tier3=27}
specjbb.group.count 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 133510 IR
High-bound (settled) is 127150 IR
