SPECjbb2015 Report for jbb2015-20170621-00163 : 161778 max-jOPS ; 40874 critical-jOPS

Hardware hw_1
Name	QuantaGrid D52B-2U
Vendor	Quanta Computer Inc.
Vendor URL	http://qct.io
Available	Jul-2017
Model	QuantaGrid D52B-2U
Form Factor	2U Rack
CPU Name	Intel Xeon Platunum 8180 CPU @ 2.50GHz
CPU Characteristics	28 Core, 2.50 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.20 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	56
Cores Per Chip	28
Threads Per System	112
Threads Per Core	2
Version	None
CPU Frequency (MHz)	2500
Primary Cache	32 KB I + 32 KB D per core
Secondary Cache	256 KB I+D per core
Tertiary Cache	55 MB I+D per chip
Other Cache	None
Disk	1x 480GB SSD SATA
File System	ext4
Memory Amount (GB)	384
# and size of DIMM(s)	24 x 16GB
Memory Details	16 GB 2Rx8 PC4-2666V-RE1-11
# and type of Network Interface Cards (NICs)	1x 1 Gbit NICs
Power Supply Quantity and Rating (W)	1 x 500
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	None
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux Server 7.3
Vendor	RedHat
Vendor URL	http://redhat.com/
Version	3.10.0-514
Available	Oct-2016
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 8u131
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 1.8.0_131
Available	Aprl-2017
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	Turbo mode was enabled Power Policy was set to Performance Memory Patrol Scrub was set to Disabled SNC was set to Enable IMC set to 1-way interleave
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description	os_1
Tuning	SE Linux = Disabled tuned-adm active profile was throughput-performance
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	None
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-showversion -server -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseParallelOldGC -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -Xms30g -Xmx30g -Xmn27g -XX:ParallelGCThreads=28
Tuning	numactl was used to affinitize each Backend JVM to a single numa node, eg: numactl --cpunodebind=$node --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	None
Tuning	numactl was used to affinitize each TxInjector JVM to a single numa node, eg: numactl --cpunodebind=$node --localalloc
Notes	None

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	159805	161778	163751	165724	167696

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	20715	34854	40444	54254	72010	40874

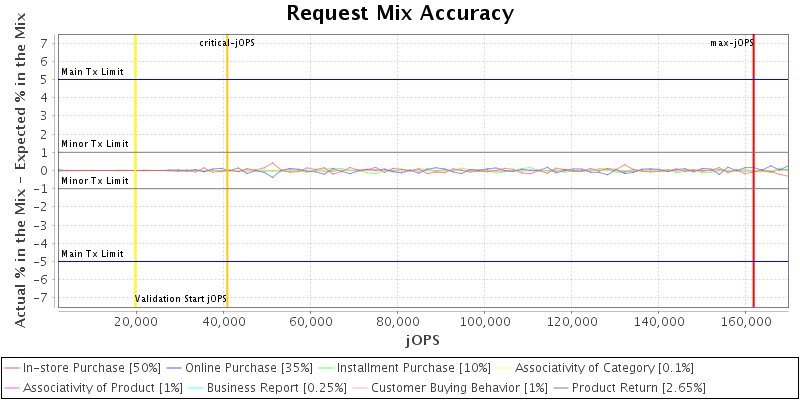

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

There were no non-critical failures in Response Time curve building

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	192
specjbb.comm.connect.selector.runner.count	0	4
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	192
specjbb.forkjoin.workers	112	{Tier1=180, Tier2=53, Tier3=27}
specjbb.group.count	1	4
specjbb.txi.pergroup.count	1	1


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED

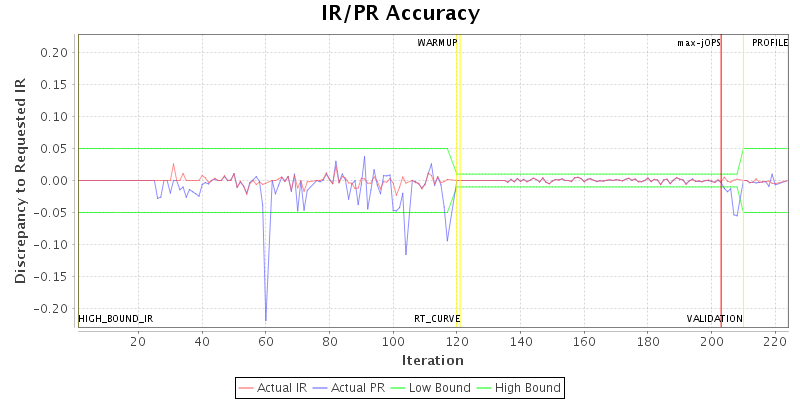

High-bound (max attempted) is 197290 IR

High-bound (settled) is 171870 IR

SPECjbb2015 Version: [SPECjbb2015 1.00, June 24, 2015]

Quanta Computer Inc. QuantaGrid D52B-2U	161778 SPECjbb2015-MultiJVM max-jOPS 40874 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Quanta Computer Inc.	Test Sponsor: Quanta Cloud Technology	Test location: Taoyuan, TW, R.O.C	Test date: Jun 18, 2017
SPEC license #: 9050	Hardware Availability: Jul-2017	Software Availability: Jul-2017	Publication: Tue Jul 11 13:21:27 EDT 2017

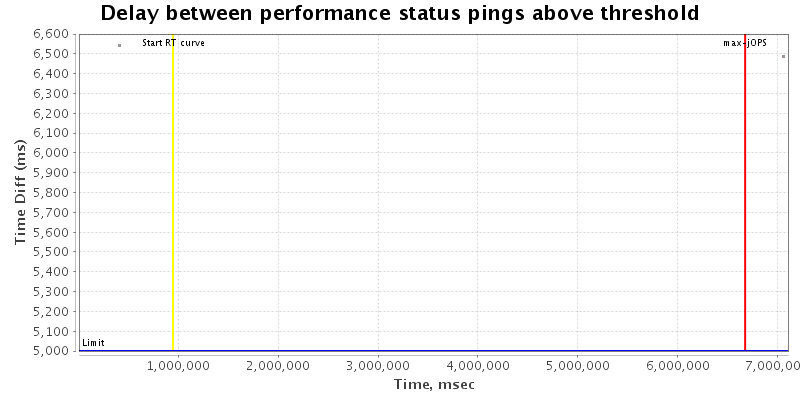

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 4) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
