Cisco Systems Cisco UCS C480 M5 269094 SPECjbb2015-MultiJVM max-jOPS
225482 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Cisco Systems Test Sponsor: Cisco Systems Test location: San Jose, CA Test date: June 20, 2017
SPEC license #: 9019 Hardware Availability: August-2016 Software Availability: April-2017 Publication: Tue Jul 11 13:21:27 EDT 2017
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorCisco Systems
Vendor URLhttp://www.cisco.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores112
Total Threads224
Total Memory Amount (GB)3072
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameCisco UCS C480 M5
VendorNone
Vendor URLNone
AvailableAugust-2017
ModelCisco UCS C480 M5
Form Factor4U Rack
CPU NameIntel Xeon Platinum 8180
CPU Characteristics28 Core, 2.50 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
VersionNone
CPU Frequency (MHz)2500
Primary Cache32 KB I + 32 KB D per core
Secondary Cache1024 KB I+D per core
Tertiary Cache38.5 MB I+D per chip
Other CacheNone
Disk1x 400GB SSD SAS
File Systemext4
Memory Amount (GB)3072
# and size of DIMM(s)48 x 64GB
Memory Details3072 GB(48 X 64GB 4DRx4 DDR4 PC4-2666V)
# and type of Network Interface Cards (NICs)2 x 1 Gbit NIC
Power Supply Quantity and Rating (W)4 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server 7.3
VendorRedHat
Vendor URLhttp://redhat.com/
Version3.10.0-514.el7.x86_64
AvailableNovember-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u131
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 1.8.0_131
AvailableApril-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS tuning
  • Memory Patrol Scrub disabled
  • CPU Performance set to Enterprise
  • Hyperthreading Enabled
  • IMC Interleave to Auto
  • SNC Disabled
  • Memory RAS configuration set to Maximum performance
  • Power Technology set to performance
Notes notes
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • tuned-adm profile set to balanced
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 1000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 500000 > /proc/sys/kernel/sched_wakeup_granularity_ns
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms710g -Xmx710g -Xmn690g -XX:SurvivorRatio=48 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=56 -XX:MaxTenuringThreshold=1
Tuning numactl used to affinitize each Backend JVM to a single memory node
  • numactl --cpunodebind=0 --membind=0
  • numactl --cpunodebind=1 --membind=1
  • numactl --cpunodebind=2 --membind=2
  • numactl --cpunodebind=3 --membind=3
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -showversion -Xmn1536m -Xms2g -Xmx2g
Tuning numactl used to affinitize each Backend JVM to a single memory node
  • numactl --cpunodebind=0 --membind=0
  • numactl --cpunodebind=1 --membind=1
  • numactl --cpunodebind=2 --membind=2
  • numactl --cpunodebind=3 --membind=3
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 265687 269094 272500 275906 279312
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 165203 235882 246385 246385 246385 225482
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 3406 - / 3406 - / 3406 - / 3406 - / 3406 - / 3406
1000us - / 3406 - / 3406 - / 3406 - / 3406 - / 3406 - / 3406
5000us 262281 / 265687 255469 / 258875 132844 / 136250 102187 / 105594 57906 / 61312 - / 3406
10000us 262281 / 265687 258875 / 262281 238437 / 241844 221406 / 224812 163500 / 166906 - / 3406
25000us 265687 / 269094 258875 / 262281 252062 / 255469 252062 / 255469 238437 / 228219 27250 / 20437
50000us 265687 / 269094 258875 / 262281 252062 / 255469 252062 / 255469 248656 / 241844 122625 / 20437
75000us 265687 / 269094 258875 / 262281 255469 / 258875 252062 / 255469 248656 / 241844 122625 / 20437
100000us 265687 / 269094 258875 / 262281 255469 / 258875 252062 / 255469 248656 / 241844 132844 / 20437
200000us 265687 / 269094 258875 / 262281 255469 / 258875 252062 / 255469 248656 / 252062 149875 / 91969
500000us 265687 / 269094 262281 / 265687 255469 / 258875 255469 / 258875 252062 / 255469 245250 / 248656
1000000us 269094 / - 265687 / 269094 265687 / 269094 265687 / 269094 255469 / 258875 252062 / 255469
Probes jOPS / Total jOPS

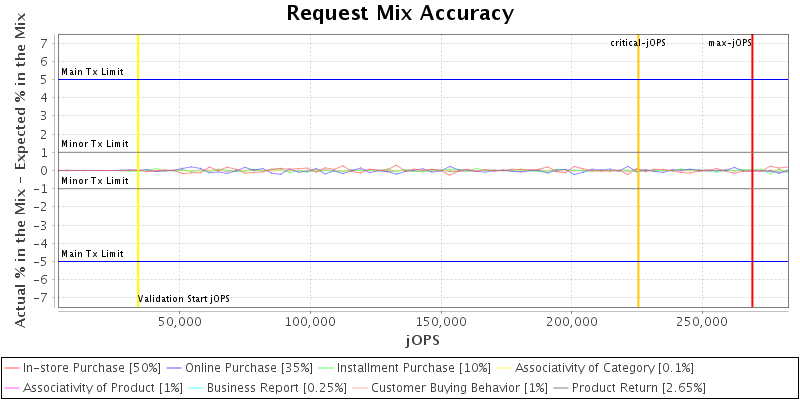

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.comm.connect.worker.pool.min 1 44
specjbb.forkjoin.workers 224 {Tier1=240, Tier2=79, Tier3=31}
specjbb.group.count 1 4
specjbb.mapreducer.pool.size 224 27
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 340625 IR
High-bound (settled) is 283921 IR
