Huawei Technologies Co., Ltd Huawei 2488H V5 319054 SPECjbb2015-MultiJVM max-jOPS
203519 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Huawei Technologies Co., Ltd Test Sponsor: Huawei Technologies Co., Ltd Test location: Hang Zhou,China Test date: Jun 21, 2017
SPEC license #: 3175 Hardware Availability: Jul-2017 Software Availability: Dec-2016 Publication: Tue Jul 11 13:21:27 EDT 2017
Benchmark Results Summary

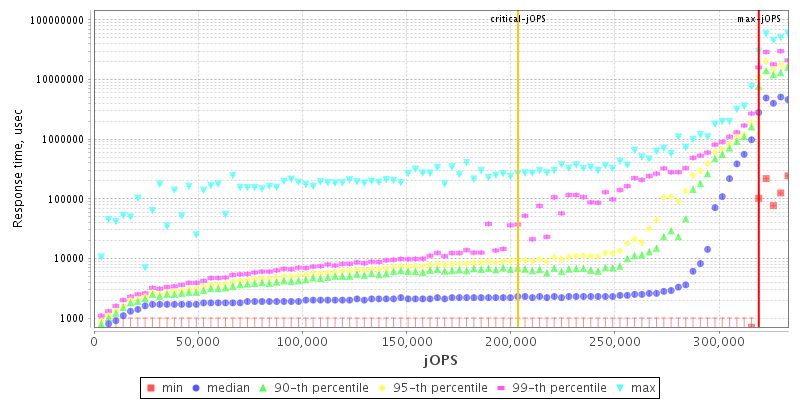

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores112
Total Threads224
Total Memory Amount (GB)1536
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameHuawei 2488H V5
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com
AvailableJul-2017
ModelHuawei 2488H V5
Form Factor2U
CPU NameIntel(R) Xeon(R) Platinum 8180
CPU Characteristics28 Core, 2.50 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
VersionNone
CPU Frequency (MHz)2500
Primary Cache32 KB I + 32 KB D per core
Secondary Cache1024 KB I+D per core
Tertiary Cache38.5 MB I+D per chip
Other CacheNone
Disk2x 600GB 10K RPM
File Systemxfs
Memory Amount (GB)1536
# and size of DIMM(s)48 x 32GB
Memory Details2RX4 PC4-2666V
# and type of Network Interface Cards (NICs)None
Power Supply Quantity and Rating (W)2 x 1500W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux 7.3
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 7.3 (Maipo)
AvailableDec-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u131
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM,version 1.8.0_131
AvailableApr-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning SE Linux = Disabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -XX:-UsePerfData -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:MaxMetaspaceSize=256m -XX:MetaspaceSize=256m -XX:+UseLargePages -XX:+UseParallelOldGC -Xms350g -Xmx350g -Xmn320g -XX:SurvivorRatio=48 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=56 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps
Tuning numactl used to affinitize each Backend JVM to a single NUMA node
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx3g -Xms2g -Xmn2g -XX:+UseParallelOldGC -XX:ParallelGCThreads=8
Tuning numactl used to affinitize each Backend JVM to a single NUMA node
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 315548 319054 322560 326066 329572
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 159527 201795 212118 219130 233349 203519
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 3506 / 7012 - / 3506 - / 3506 - / 3506 - / 3506 - / 3506
1000us 255945 / 259451 10518 / 14024 7012 / 10518 3506 / 7012 - / 3506 - / 3506
5000us 301524 / 305030 283993 / 287499 122713 / 126219 94664 / 98171 63110 / 66616 - / 3506
10000us 305030 / 308536 291005 / 294512 255945 / 259451 224390 / 220884 157774 / 161280 24543 / 3506
25000us 308536 / 312042 294512 / 298018 280487 / 276981 262957 / 266463 217378 / 189329 49085 / 7012
50000us 308536 / 312042 294512 / 298018 283993 / 287499 269969 / 273475 217378 / 206859 49085 / 14024
75000us 308536 / 312042 298018 / 301524 283993 / 287499 269969 / 273475 224390 / 213871 63110 / 21037
100000us 308536 / 312042 298018 / 301524 283993 / 287499 280487 / 273475 248932 / 220884 63110 / 21037
200000us 312042 / 315548 301524 / 305030 291005 / 294512 283993 / 287499 255945 / 259451 168292 / 66616
500000us 312042 / 315548 308536 / 312042 298018 / 301524 294512 / 298018 287499 / 291005 266463 / 259451
1000000us 315548 / 319054 315548 / 319054 308536 / 312042 305030 / 308536 301524 / 305030 287499 / 280487
Probes jOPS / Total jOPS

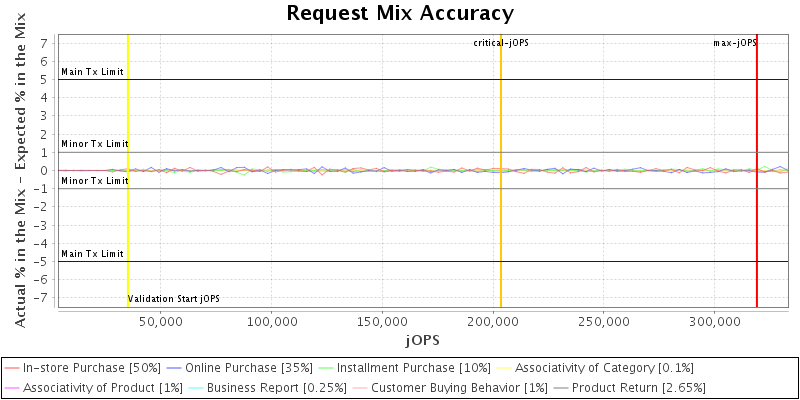

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

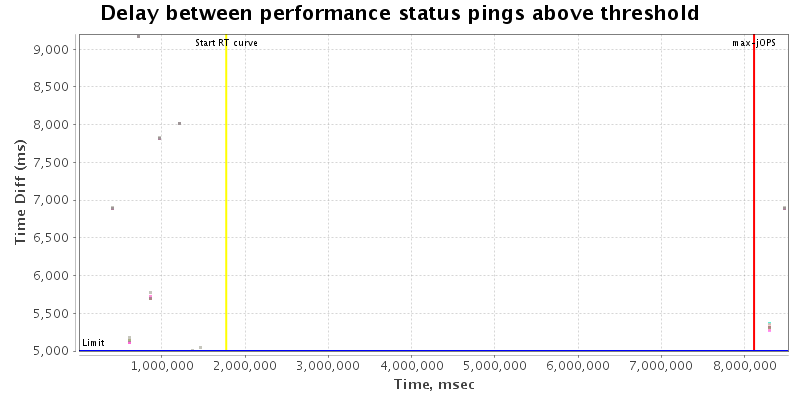

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.controller.handshake.timeout 600000 800000
specjbb.controller.maxir.maxFailedPoints 3 3
specjbb.forkjoin.workers 224 {Tier1=150, Tier2=68, Tier3=30}
specjbb.group.count 1 4
specjbb.heartbeat.threshold 100000 600000
specjbb.time.check.interval 10000 10000
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 350609 IR
High-bound (settled) is 338063 IR
