Huawei Technologies Co., Ltd Huawei 2488H V5 NON-COMPLIANT (NC) RESULT
Tested by: Huawei Technologies Co., Ltd Test Sponsor: Huawei Technologies Co., Ltd Test location: Hang Zhou,China Test date: May 9, 2017
SPEC license #: 3175 Hardware Availability: Jul-2017 Software Availability: Dec-2016 Publication: Tue Jul 11 13:21:27 EDT 2017
Validation Errors Summary
SPEC has determined that this result is not in compliance with the SPECjbb2015 run and reporting rules. Specifically, the system was not available as required by SPECjbb2015 rule 2.6 and the SPEC Open Systems Group policy on general availability.
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores112
Total Threads224
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameHuawei 2488H V5
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com
AvailableJul-2017
ModelHuawei 2488H V5
Form Factor2U
CPU NameIntel(R) Xeon(R) Platinum 8180
CPU Characteristics28 Core, 2.50 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
VersionNone
CPU Frequency (MHz)2500
Primary Cache32 KB I + 32 KB D per core
Secondary Cache1024 KB I+D per core
Tertiary Cache38.5 MB I+D per chip
Other CacheNone
Disk2x 600GB 10K RPM
File Systemxfs
Memory Amount (GB)768
# and size of DIMM(s)24 x 32GB
Memory Details2RX4 PC4-2666V
# and type of Network Interface Cards (NICs)None
Power Supply Quantity and Rating (W)2 x 1500W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux 7.3
VendorRed Hat
Vendor URLhttp://www.redhat.com/
VersionRed Hat Enterprise Linux Server release 7.3 (Maipo)
AvailableDec-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u131
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM,version 1.8.0_131
AvailableApr-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning SE Linux = Disabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmx30g -Xms25g -Xmn25g -XX:+UseParallelOldGC
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -Xmx29g -Xms29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=28 -XX:+AlwaysPreTouch -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy -XX:-UseBiasedLocking -XX:+AggressiveOpts -XX:+PrintGCDetails -XX:LargePageSizeInBytes=2m -XX:+UseLargePages -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution
Tuning numactl used to affinitize each Backend JVM to a single NUMA node
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmx3g -Xms2g -Xmn2g -XX:+UseParallelOldGC -XX:ParallelGCThreads=8
Tuning numactl used to affinitize each Backend JVM to a single NUMA node
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 335392 339338 343284 347230 351175
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 80889 92726 112455 132184 167696 113332
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 3946 / 7892 - / 3946 - / 3946 - / 3946 - / 3946 - / 3946
1000us 213073 / 74970 15783 / 19729 7892 / 11837 7892 / 11837 3946 / 7892 - / 3946
5000us 307772 / 311717 288043 / 291988 193344 / 161777 90753 / 94699 59187 / 63133 - / 3946
10000us 311717 / 315663 291988 / 295934 228856 / 232802 189398 / 193344 78916 / 82862 7892 / 3946
25000us 315663 / 319609 299880 / 303826 260422 / 264368 220964 / 224910 94699 / 90753 7892 / 3946
50000us 315663 / 319609 303826 / 307772 264368 / 268314 232802 / 236747 110482 / 114428 7892 / 3946
75000us 319609 / 323555 303826 / 307772 272260 / 276205 244639 / 248585 130211 / 134157 7892 / 3946
100000us 323555 / 327501 307772 / 311717 280151 / 284097 260422 / 264368 165723 / 169669 7892 / 3946
200000us 327501 / 331446 315663 / 319609 295934 / 299880 288043 / 291988 268314 / 272260 78916 / 3946
500000us 335392 / 339338 327501 / 331446 315663 / 319609 311717 / 315663 311717 / 315663 264368 / 268314
1000000us 339338 / - 335392 / 339338 327501 / 331446 327501 / 331446 323555 / 327501 311717 / 315663
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

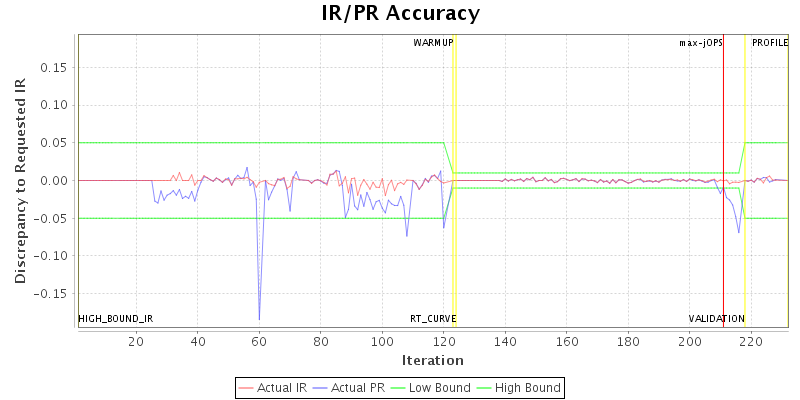

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 192
specjbb.comm.connect.selector.runner.count 0 8
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 212
specjbb.controller.handshake.timeout 600000 800000
specjbb.controller.maxir.maxFailedPoints 3 3
specjbb.forkjoin.workers 224 {Tier1=192, Tier2=64, Tier3=32}
specjbb.group.count 1 8
specjbb.heartbeat.threshold 100000 600000
specjbb.time.check.interval 10000 10000
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 394579 IR
High-bound (settled) is 359619 IR
