Huawei FusionServer 2288H V5 173615 SPECjbb2015-MultiJVM max-jOPS
49999 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Huawei Test Sponsor: Huawei Test location: Shenzhen Test date: Jun 10, 2017
SPEC license #: 3175 Hardware Availability: Jul-2017 Software Availability: Oct-2016 Publication: Tue Jul 11 13:21:27 EDT 2017
Benchmark Results Summary

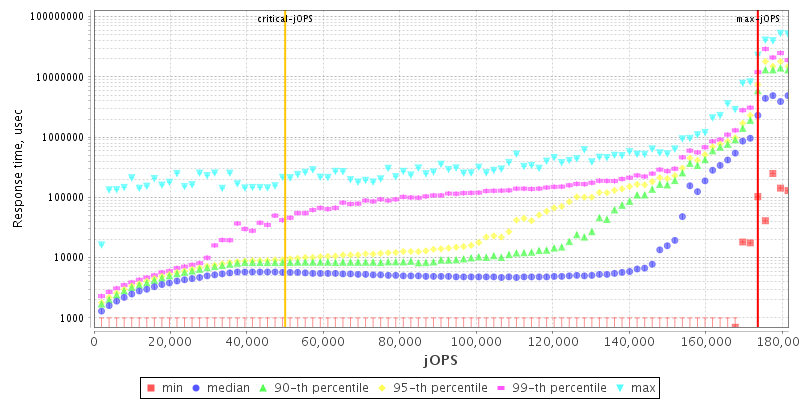

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores56
Total Threads112
Total Memory Amount (GB)192
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameFusionServer 2288H V5
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com/
AvailableJuly-2017
ModelFusionServer 2288H V5
Form Factor2U
CPU NameIntel Xeon Platinum 8180
CPU Characteristics28 Core, 2.50 GHz, 37.8 MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System2
Threads Per Core2
VersionNone
CPU Frequency (MHz)2500
Primary Cache16 KB I + 16 KB D per core
Secondary Cache1024 KB I+D per core
Tertiary Cache37.8 MB I+D per chip
Other CacheNone
Disk1 x 1000GB 7200RPM SATA
File SystemBTRFS
Memory Amount (GB)192
# and size of DIMM(s)12 x 16GB
Memory Details192 GB (12 x 16 GB 2Rx8 PC4-2666V-R)
# and type of Network Interface Cards (NICs)4 x 1 Gbit NICs
Power Supply Quantity and Rating (W)1 x 1500W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise
VendorSUSE
Vendor URLhttp://www.suse.com
VersionSUSE Linux Enterprise 12 SP2
AvailableOct-2016
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 1.8.0_131
AvailableApr-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS tuning
  • Power Policy was set to Performance
  • SNC enabled
  • IMC 1-way interleave
  • Memory Patrol Scrub was set to Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • tuned-adm acive profile was throughput-performance
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:AllocatePrefetchInstr=2 -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=28 -XX:MaxTenuringThreshold=15
Tuning numactl was used to affinitize each Backend JVM to a single numa node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -showversion -Xmn1536m -Xms2g -Xmx2g
Tuning numactl was used to affinitize each TxInjector JVM to a single numa node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 171642 173615 175588 177561 179534
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 30579 36498 52281 64119 83519 49999
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1973 - / 1973 - / 1973 - / 1973 - / 1973 - / 1973
1000us - / 1973 - / 1973 - / 1973 - / 1973 - / 1973 - / 1973
5000us 153886 / 155859 128238 / 31566 19729 / 21702 17756 / 19729 13810 / 15783 - / 1973
10000us 153886 / 155859 145995 / 147967 98645 / 100618 53268 / 55241 29593 / 31566 - / 1973
25000us 159805 / 161778 151913 / 153886 128238 / 130211 106537 / 108509 35512 / 37485 1973 / 3946
50000us 159805 / 161778 153886 / 155859 134157 / 136130 114428 / 116401 51295 / 53268 1973 / 3946
75000us 159805 / 161778 153886 / 155859 138103 / 140076 122320 / 124293 63133 / 65106 1973 / 3946
100000us 161778 / 163751 153886 / 155859 140076 / 142049 124293 / 126266 84835 / 80889 1973 / 3946
200000us 165724 / 167696 159805 / 161778 151913 / 153886 145995 / 147967 136130 / 138103 72997 / 9864
500000us 171642 / 173615 165724 / 167696 159805 / 161778 157832 / 159805 153886 / 155859 138103 / 110482
1000000us 173615 / - 171642 / 173615 167696 / 169669 167696 / 169669 163751 / 165724 155859 / 157832

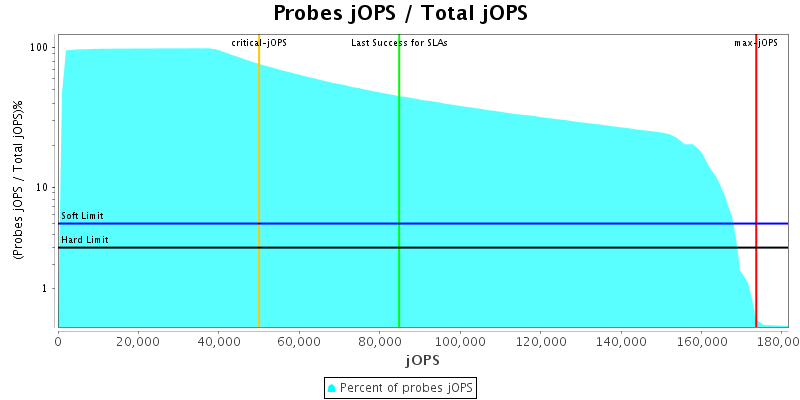

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 192
specjbb.comm.connect.timeouts.connect 60000 650000
specjbb.comm.connect.timeouts.read 60000 650000
specjbb.comm.connect.timeouts.write 60000 650000
specjbb.comm.connect.worker.pool.max 256 320
specjbb.customerDriver.threads 64 {probe=96, saturate=96}
specjbb.forkjoin.workers 112 {Tier1=140, Tier2=68, Tier3=30}
specjbb.group.count 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 197290 IR
High-bound (settled) is 186557 IR
