Huawei FusionServer 2288H V5 179534 SPECjbb2015-MultiJVM max-jOPS
49226 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Huawei Test Sponsor: Huawei Test location: Shenzhen Test date: Jul 9, 2017
SPEC license #: 3175 Hardware Availability: Jul-2017 Software Availability: Apr-2017 Publication: Fri Aug 18 17:45:48 EDT 2017
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores56
Total Threads112
Total Memory Amount (GB)192
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameFusionServer 2288H V5
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com/
AvailableJuly-2017
ModelFusionServer 2288H V5
Form Factor2U
CPU NameIntel Xeon Platinum 8180
CPU Characteristics28-Core, 2.50GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
VersionNone
CPU Frequency (MHz)2500
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache1024 KB (I+D) per core
Tertiary Cache38.5MB (I+D) on chip per chip
Other CacheNone
Disk1 x 1000GB 7200RPM SATA
File SystemEXT4
Memory Amount (GB)192
# and size of DIMM(s)12 x 16GB
Memory Details192 GB (12 x 16 GB 2Rx8 PC4-2666V-R)
# and type of Network Interface Cards (NICs)4 x 1 Gbit NICs
Power Supply Quantity and Rating (W)1 x 1500W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux
VendorREDHAT
Vendor URLhttp://www.redhat.com
VersionRed Hat Enterprise Linux Server release 6.9 (Santiago)
AvailableMar-2017
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 1.8.0_131
AvailableApr-2017
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS tuning
  • Power Policy was set to Performance
  • SNC enabled
  • IMC 1-way interleave
  • Memory Patrol Scrub was set to Disabled
  • Maximum Fan Speed
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • tuned-adm active profile was throughput-performance
  • echo 16000000 > /proc/sys/kernel/sched_lantancy_ns
  • echo 600000 > /proc/sys/kernel/sched_min_granularity_ns
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -server -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:AllocatePrefetchInstr=2 -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=28 -XX:MaxTenuringThreshold=15
Tuning numactl was used to affinitize each Backend JVM to a single numa node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -showversion -Xmn1536m -Xms2g -Xmx2g
Tuning numactl was used to affinitize each TxInjector JVM to a single numa node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 177561 179534 181507 183480 185453
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 28607 38471 50637 63352 81875 49226
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1973 - / 1973 - / 1973 - / 1973 - / 1973 - / 1973
1000us - / 1973 - / 1973 - / 1973 - / 1973 - / 1973 - / 1973
5000us 161778 / 163751 128238 / 31566 19729 / 21702 17756 / 19729 13810 / 15783 - / 1973
10000us 163751 / 165724 151913 / 153886 104564 / 98645 55241 / 57214 27621 / 29593 1973 / 3946
25000us 165724 / 167696 157832 / 159805 130211 / 132184 106537 / 108509 39458 / 37485 1973 / 3946
50000us 167696 / 169669 159805 / 161778 136130 / 138103 118374 / 120347 53268 / 49322 1973 / 3946
75000us 167696 / 169669 161778 / 163751 140076 / 142049 122320 / 124293 65106 / 49322 1973 / 3946
100000us 169669 / 171642 161778 / 163751 145995 / 147967 128238 / 130211 80889 / 82862 1973 / 3946
200000us 171642 / 173615 165724 / 167696 155859 / 157832 151913 / 153886 140076 / 142049 80889 / 21702
500000us 177561 / 179534 173615 / 175588 165724 / 167696 165724 / 167696 161778 / 163751 140076 / 138103
1000000us 179534 / - 177561 / 179534 175588 / 177561 173615 / 175588 169669 / 171642 161778 / 163751
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

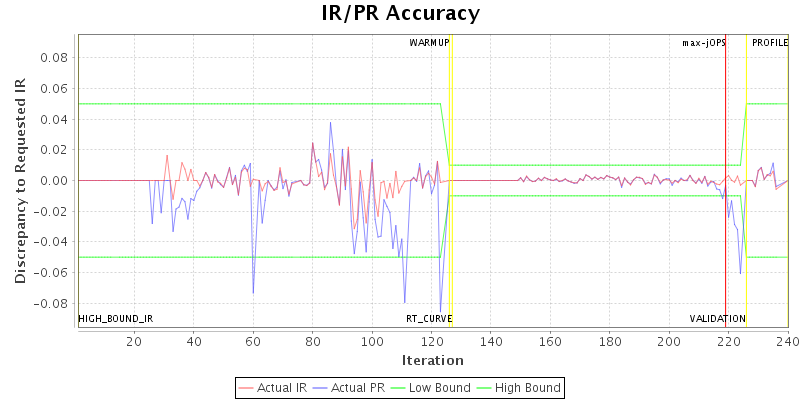

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 212
specjbb.comm.connect.timeouts.connect 60000 650000
specjbb.comm.connect.timeouts.read 60000 650000
specjbb.comm.connect.timeouts.write 60000 650000
specjbb.comm.connect.worker.pool.max 256 320
specjbb.customerDriver.threads 64 {probe=96, saturate=96}
specjbb.forkjoin.workers 112 {Tier1=140, Tier2=68, Tier3=30}
specjbb.group.count 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 197290 IR
High-bound (settled) is 190974 IR
