SPECjbb2015 Report for jbb2015-20170719-00229 : 74086 max-jOPS ; 62592 critical-jOPS

Hardware hw_1
Name	ProLiant DL380 Gen10
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Jul-2017
Model	ProLiant DL380 Gen10
Form Factor	2U Rack
CPU Name	Intel Xeon Platinum 8180
CPU Characteristics	28 Core, 2.50 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.8 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	28
Cores Per Chip	28
Threads Per System	56
Threads Per Core	2
Version	U30 06/08/2017
CPU Frequency (MHz)	2500
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1024 KB I+D on chip per core
Tertiary Cache	38.5 MB I+D on chip per chip
Other Cache	None
Disk	1 x 480 GB SSD SATA
File System	XFS
Memory Amount (GB)	768
# and size of DIMM(s)	12 x 64 GB
Memory Details	64 GB 4Rx4 PC4-2666V-L
# and type of Network Interface Cards (NICs)	HPE Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)	2 x 800
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	None
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux Server 7.3
Vendor	RedHat
Vendor URL	http://redhat.com/
Version	3.10.0-514
Available	Nov-2016
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 8u131
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 1.8.0_131
Available	Apr-2017
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	Non-virtual
Tuning	Workload Profile=High Performance Compute Thermal Configuration=Maximum Cooling
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(1), jvm_TxInjector_1(1)
OS Image Description	os_1
Tuning	SELINUX=disabled tuned-adm profile=throughput-performance echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 175000 > /proc/sys/kernel/sched_min_granularity_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 3000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx3g -Xmn2g
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-XX:-UsePerfData -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:MaxMetaspaceSize=256m -XX:MetaspaceSize=256m -XX:+UseLargePages -XX:+UseParallelOldGC -Xms725g -Xmx725g -Xmn672g -XX:SurvivorRatio=68 -XX:TargetSurvivorRatio=48 -XX:ParallelGCThreads=56 -XX:MaxTenuringThreshold=15 -XX:+PrintTenuringDistribution -XX:+PrintGCDetails -XX:+PrintGCTimeStamps -XX:+UseRTMLocking -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=300
Tuning	None
Notes	Used numactl to affinitize each Backend JVM to NUMA node. numactl --cpunodebind=0 --localalloc
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx3g -Xmn2g -XX:ParallelGCThreads=56
Tuning	None
Notes	None

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	73234	74086	74937	75789	76640

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	48113	66847	66847	66847	66847	62592

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

There were no non-critical failures in Response Time curve building

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.selector.runner.count	0	8
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	64
specjbb.forkjoin.workers	56	{Tier1=189, Tier2=53, Tier3=23}
specjbb.group.count	1	1
specjbb.txi.pergroup.count	1	1


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED

High-bound (max attempted) is 85156 IR

High-bound (settled) is 77605 IR

SPECjbb2015 Version: [SPECjbb2015 1.00, June 24, 2015]

Hewlett Packard Enterprise ProLiant DL380 Gen10	74086 SPECjbb2015-MultiJVM max-jOPS 62592 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise	Test Sponsor: Hewlett Packard Enterprise	Test location: Houston, TX	Test date: June 30, 2017
SPEC license #: 3	Hardware Availability: Jul-2017	Software Availability: Apr-2017	Publication: Fri Aug 4 11:08:36 EDT 2017

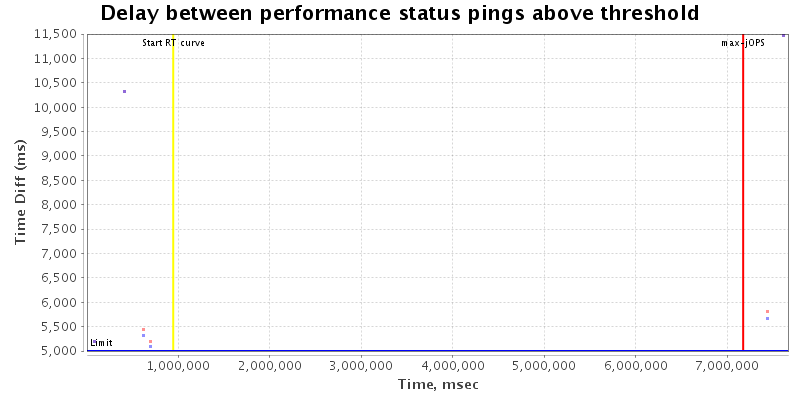

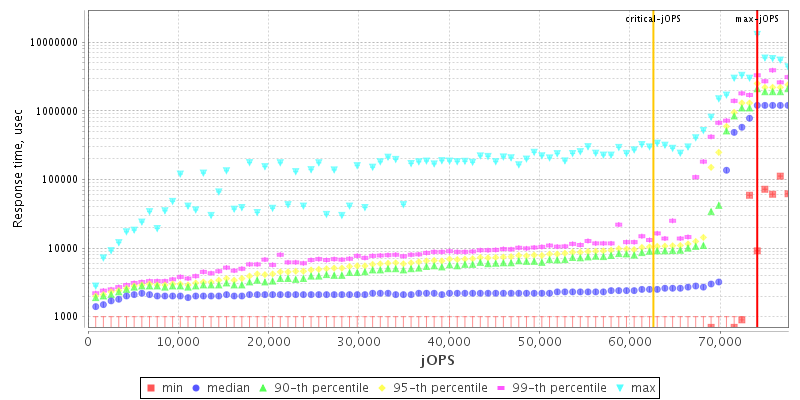

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 1) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
