Hewlett Packard Enterprise ProLiant DL325 Gen10 76773 SPECjbb2015-MultiJVM max-jOPS
20055 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: May 8, 2018
SPEC license #: 3 Hardware Availability: Jul-2018 Software Availability: Apr-2018 Publication: Thu Jun 7 11:20:30 EDT 2018
Benchmark Results Summary

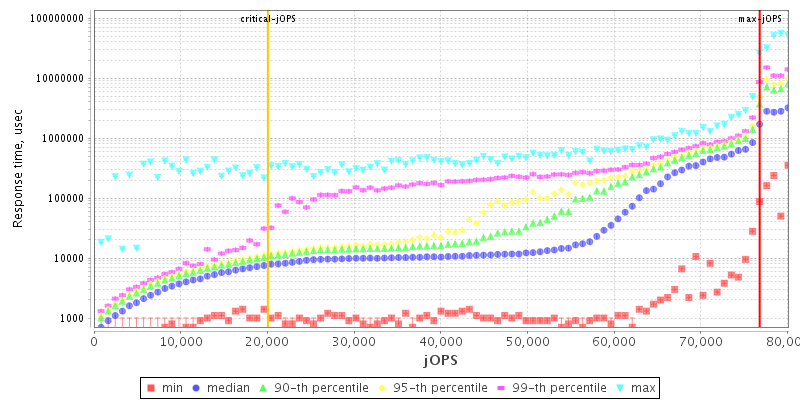

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips1
Total Cores32
Total Threads64
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant DL325 Gen10
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableJul-2018
ModelProLiant DL325 Gen10
Form Factor1U Rack
CPU NameAMD EPYC 7601
CPU Characteristics32 Core, 2.20 GHz, 8MB L3 cache per 4 core (Turbo Boost Technology up to 3.2 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System32
Cores Per Chip32
Threads Per System64
Threads Per Core2
VersionA41 04/06/2018
CPU Frequency (MHz)2200
Primary Cache64 KB I + 32 KB D on chip per core
Secondary Cache512 KB I+D on chip per core
Tertiary Cache8MB L3 cache per 4 core
Other CacheNone
Disk1 x 960 GB SSD SATA
File SystemXFS
Memory Amount (GB)512
# and size of DIMM(s)8 x 64 GB
Memory Details64 GB 4Rx4 PC4-2666V-L
# and type of Network Interface Cards (NICs)HPE Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)2 x 800
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 12 SP3
VendorSUSE
Vendor URLhttps://www.suse.com/
Version4.4.120-94.17-default
AvailableMar-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 10.0.1
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 10.0.1
AvailableApr-2018
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Workload Profile=General Throughput Compute
  • Thermal Configuration=Maximum Cooling
  • Processor Power and Utilization Monitoring=Disabled
  • Performance Determinism=Power Deterministic
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • tuned-adm profile=throughput-performance
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 1 > /proc/sys/kernel/sched_compat_yield
  • systemctl stop systemd-update-utmp-runlevel.service
  • Added cgroup_disable=memory,cpu,cpuacct,blkio,hugetlb,pids,cpuset,perf_event,freezer,devices,net_cls,net_prio to GRUB_CMDLINE_LINUX_DEFAULT
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC --add-modules=java.xml.bind
Tuning None
Notes numactl --interleave=all
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-showversion -server --add-modules=java.xml.bind -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:+AggressiveOpts -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=98 -XX:ParallelGCThreads=16 -XX:MaxTenuringThreshold=15 -Xnoclassgc -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=300 -XX:ThreadStackSize=1m

Tuning None
Notes

Used numactl to affinitize each Backend JVM to physical cores in a NUMA node.

  • numactl --physcpubind=0-7,32-39 --membind=0
  • numactl --physcpubind=8-15,40-47 --membind=1
  • numactl --physcpubind=16-23,48-55 --membind=2
  • numactl --physcpubind=24-31,56-63 --membind=3
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC --add-modules=java.xml.bind
Tuning None
Notes

Used numactl to affinitize each Transaction Injector JVM to a physical core in a NUMA node.

  • numactl --physcpubind=0 --membind=0
  • numactl --physcpubind=8 --membind=1
  • numactl --physcpubind=16 --membind=2
  • numactl --physcpubind=24 --membind=3
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 75956 76773 77589 78406 79223
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 13476 19193 20826 23412 25727 20055
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 817 - / 817 - / 817 - / 817 - / 817 - / 817
1000us 4084 / 4900 1633 / 2450 817 / 1633 - / 817 - / 817 - / 817
5000us 45737 / 46554 13068 / 13884 8984 / 9801 8984 / 9801 7351 / 8167 - / 817
10000us 59621 / 60438 33486 / 34303 18785 / 19602 17968 / 18785 13884 / 13068 - / 817
25000us 62071 / 62888 57988 / 58805 45737 / 46554 40020 / 40836 18785 / 19602 4900 / 2450
50000us 62888 / 63705 60438 / 61255 53087 / 53904 44103 / 44920 20418 / 21235 4900 / 2450
75000us 65338 / 66155 62071 / 62888 54721 / 55538 47370 / 45737 24502 / 22868 4900 / 2450
100000us 65338 / 66155 62071 / 62888 56354 / 57171 52271 / 50637 25319 / 26135 4900 / 2450
200000us 70239 / 71056 65338 / 66155 61255 / 62071 58805 / 59621 43287 / 44103 4900 / 2450
500000us 75956 / 76773 72689 / 73506 67789 / 68605 66972 / 67789 65338 / 66155 57171 / 50637
1000000us 76773 / - 75956 / 76773 75139 / 75956 74322 / 75139 73506 / 74322 66155 / 66972

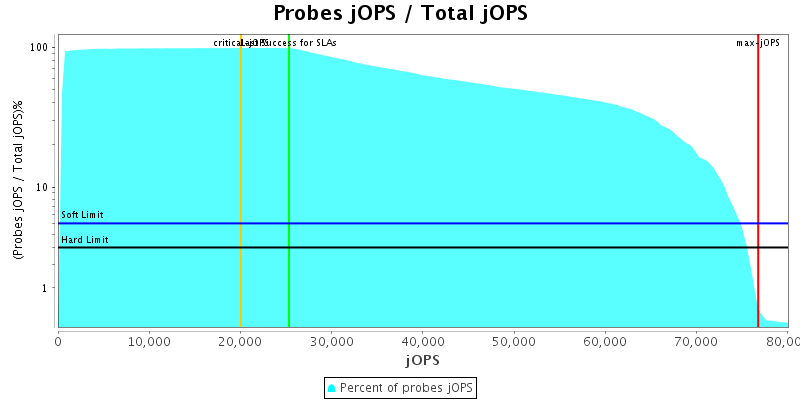

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

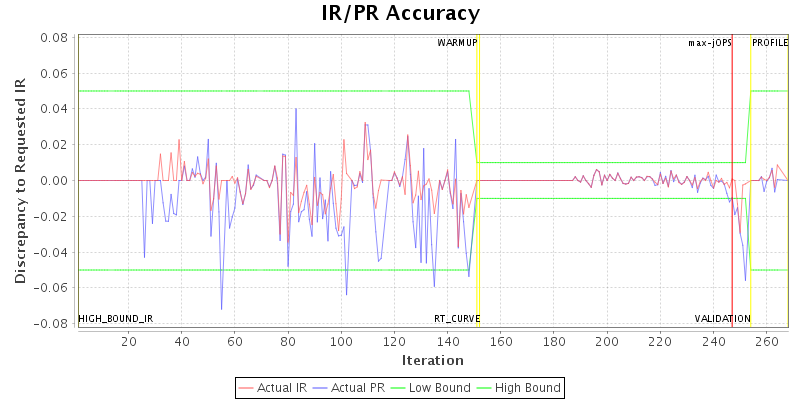

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 1
specjbb.comm.connect.timeouts.connect 60000 700000
specjbb.comm.connect.timeouts.read 60000 700000
specjbb.comm.connect.timeouts.write 60000 700000
specjbb.comm.connect.worker.pool.max 256 111
specjbb.comm.connect.worker.pool.min 1 64
specjbb.customerDriver.threads 64 {=64, probe=64, saturate=64}
specjbb.forkjoin.workers 64 {Tier1=180, Tier2=1, Tier3=25}
specjbb.group.count 1 4
specjbb.mapreducer.pool.size 64 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 81673 IR
High-bound (settled) is 80112 IR
