Hewlett Packard Enterprise ProLiant DL380 Gen10 157832 SPECjbb2015-Distributed max-jOPS
47771 SPECjbb2015-Distributed critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: August 28, 2018
SPEC license #: 3 Hardware Availability: Jun-2018 Software Availability: Aug-2018 Publication: Sep 13, 2018
Benchmark Results Summary

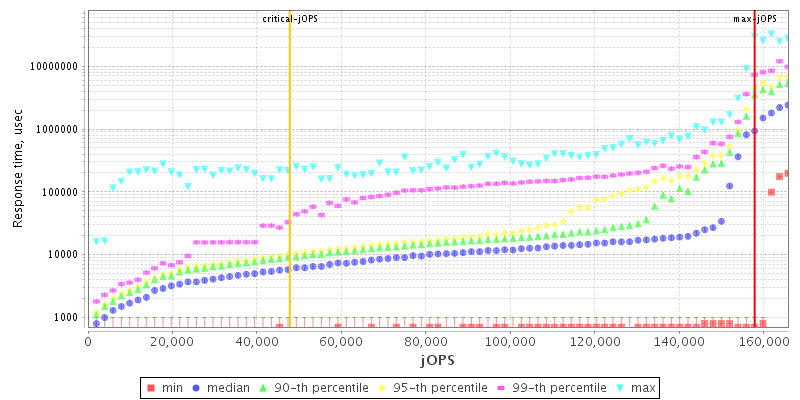

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips2
Total Cores56
Total Threads112
Total Memory Amount (GB)192
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant DL380 Gen10
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableJun-2018
ModelProLiant DL380 Gen10
Form Factor2U Rack
CPU NameIntel Xeon Platinum 8180
CPU Characteristics28 Core, 2.50 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.8 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
VersionU30 06/20/2018
CPU Frequency (MHz)2500
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1024 KB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk1 x 400 GB SSD SAS
File SystemNTFS
Memory Amount (GB)192
# and size of DIMM(s)24 x 8 GB
Memory Details8 GB 2Rx8 PC4-2666V-R
# and type of Network Interface Cards (NICs)HPE Ethernet 1Gb 2-port
Power Supply Quantity and Rating (W)2 x 1600
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2016 Standard
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/en-us/
VersionVersion 1607 (OS Build 14393.2430)
AvailableAug-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 10.0.2
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 10.0.2
AvailableJul-2018
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware hw_2
NameProLiant DL380 Gen10
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableJun-2018
ModelProLiant DL380 Gen10
Form Factor2U Rack
CPU NameIntel Xeon Platinum 8180
CPU Characteristics28 Core, 2.50 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.8 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System28
Cores Per Chip28
Threads Per System56
Threads Per Core2
VersionU30 06/20/2018
CPU Frequency (MHz)2500
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1024 KB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk1 x 400 GB SSD SAS
File SystemNTFS
Memory Amount (GB)96
# and size of DIMM(s)12 x 8 GB
Memory Details8 GB 2Rx8 PC4-2666V-R
# and type of Network Interface Cards (NICs)HPE Ethernet 1Gb 2-port
Power Supply Quantity and Rating (W)2 x 1600
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameWindows Server 2016 Standard
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/en-us/
VersionVersion 1607 (OS Build 14393.2273)
AvailableAug-2018
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle Java SE 10.0.2
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 10.0.2
AvailableJul-2018
Bitness64
NotesNone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Workload Profile=High Performance Compute
  • Thermal Configuration=Maximum Cooling
  • Sub-NUMA Clustering=Enabled
  • Process Jitter Control=Auto-tuned
  • Process Jitter Control Optimization=Optimized for Throughput
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(4)
OS Image Description os_1
Tuning
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
  • Lock Pages in Memory is Enabled
  • Performance Options is set to Adjust for best performance
  • Total paging file size for all drives is set to 28,672 MB
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

--add-modules=java.xml.bind -showversion -server -Xmx29g -Xms29g -Xmn27g --add-modules=java.xml.bind -XX:+UseParallelOldGC -XX:ParallelGCThreads=28 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+AggressiveOpts -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -verbose:gc -XX:+UseRTMLocking -XX:InlineSmallCode=10k -XX:+UseRTMDeopt

Tuning None
Notes

Affinitized each Backend JVM to physical cores in a NUMA node

  • start /NODE 0 /AFFINITY 0xfffffff
  • start /NODE 1 /AFFINITY 0xfffffff
  • start /NODE 2 /AFFINITY 0xfffffff
  • start /NODE 3 /AFFINITY 0xfffffff

Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment non-virtual
Tuning
  • Workload Profile=High Performance Compute
  • Thermal Configuration=Maximum Cooling
  • Sub-NUMA Clustering=Enabled
  • Process Jitter Control=Auto-tuned
  • Process Jitter Control Optimization=Optimized for Throughput
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(4)
OS Image Description os_2
Tuning
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
  • Lock Pages in Memory is Enabled
  • Performance Options is set to Adjust for best performance
  • Total paging file size for all drives is set to 28,672 MB
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line --add-modules=java.xml.bind -Xms2g -Xmx2g -Xmn1536m
Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line --add-modules=java.xml.bind -Xms2g -Xmx2g -Xmn1536m
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 155859 157832 159805 161778 163751
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 24661 40444 54254 62146 73983 47771
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1973 - / 1973 - / 1973 - / 1973 - / 1973 - / 1973
1000us 13810 / 15783 3946 / 5919 - / 1973 - / 1973 - / 1973 - / 1973
5000us 118374 / 80889 39458 / 41431 19729 / 21702 19729 / 21702 11837 / 13810 - / 1973
10000us 145995 / 147967 78916 / 80889 53268 / 55241 47350 / 49322 23675 / 25648 - / 1973
25000us 151913 / 153886 145995 / 147967 122320 / 124293 104564 / 106537 39458 / 41431 3946 / 5919
50000us 151913 / 153886 149940 / 151913 132184 / 134157 114428 / 116401 55241 / 53268 3946 / 5919
75000us 153886 / 155859 149940 / 151913 134157 / 136130 120347 / 122320 63133 / 61160 3946 / 5919
100000us 153886 / 155859 149940 / 151913 138103 / 140076 126266 / 128238 72997 / 74970 3946 / 5919
200000us 153886 / 155859 151913 / 153886 144022 / 145995 142049 / 144022 128238 / 130211 67079 / 9864
500000us 157832 / - 153886 / 155859 151913 / 153886 149940 / 151913 145995 / 147967 122320 / 124293
1000000us 157832 / - 157832 / - 153886 / 155859 153886 / 155859 151913 / 153886 145995 / 144022
Probes jOPS / Total jOPS

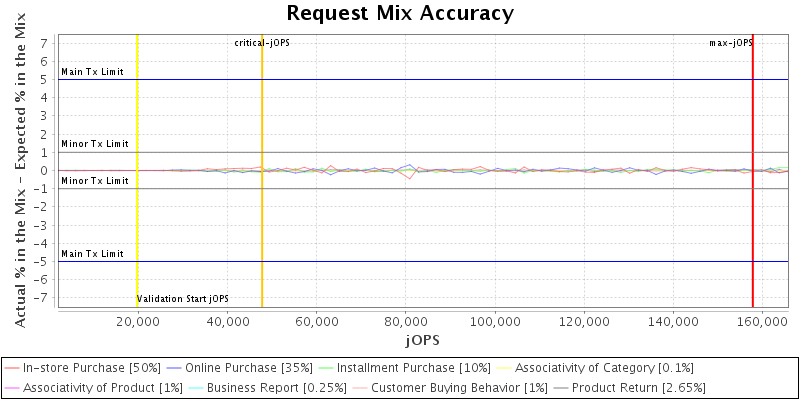

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 224
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 700000
specjbb.comm.connect.timeouts.read 60000 700000
specjbb.comm.connect.timeouts.write 60000 700000
specjbb.comm.connect.worker.pool.max 256 112
specjbb.comm.connect.worker.pool.min 1 64
specjbb.controller.host localhost 10.10.0.83
specjbb.customerDriver.threads 64 {probe=64, saturate=64}
specjbb.forkjoin.workers 28 {Tier1=180, Tier2=1, Tier3=25}
specjbb.group.count 1 4
specjbb.mapreducer.pool.size 28 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 197290 IR
High-bound (settled) is 165304 IR
