SPECjbb2015
Copyright © 2015-2024 Standard Performance Evaluation Corporation
Lenovo Global Technology ThinkSystem SR950 232477 SPECjbb2015-MultiJVM max-jOPS
176225 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: Aug 25, 2018
SPEC license #: 9017 Hardware Availability: Sep-2017 Software Availability: Jul-2018 Publication: Sep 13, 2018
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 3)

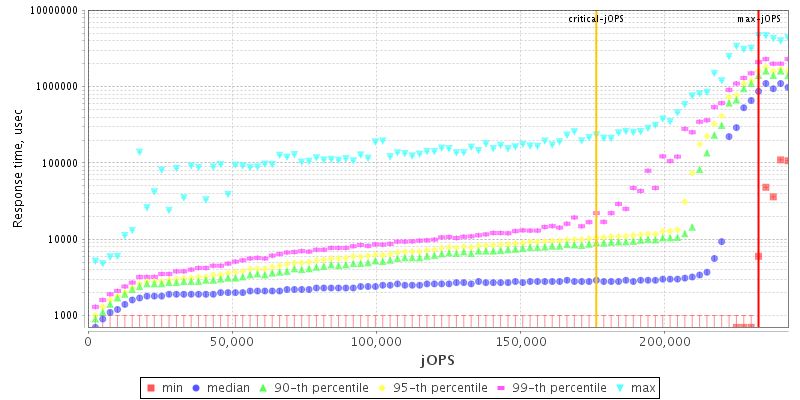

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips3
Total Cores84
Total Threads168
Total Memory Amount (GB)1152
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameThinkSystem SR950
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableSep-2017
ModelThinkSystem SR950
Form Factor4U
CPU NameIntel Xeon Platinum 8180M
CPU Characteristics28 core, 2.50GHz, 38.5MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System3
Cores Per System84
Cores Per Chip28
Threads Per System168
Threads Per Core2
VersionPSE113P in Jun-2018
CPU Frequency (MHz)2500
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1 MB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk1x 800GB SATA SSD
File Systemxfs
Memory Amount (GB)1152
# and size of DIMM(s)36 x 32 GB
Memory Details32GB 2Rx4 PC4-2666V-R
# and type of Network Interface Cards (NICs)1x 10 Gbit NICs
Power Supply Quantity and Rating (W)4 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRedHat Linux Enterprise Server 7.5
VendorRed Hat
Vendor URLhttp://www.redhat.com/
Version3.10.0-862.3.2
AvailableMay-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 10.0.2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 10.0.2
AvailableJul-2018
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance
  • Per Core P-state set to Disable
  • Patrol Scrub set to Disable
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(3), jvm_TxInjector_1(3)
OS Image Description os_1
Tuning
  • SELINUX=disabled
  • ulimit -n 32768
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 3000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -server -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xms350g -Xmx350g -Xmn340g -XX:SurvivorRatio=34 -XX:MaxTenuringThreshold=15 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -Xnoclassgc -XX:+AggressiveOpts -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=56 -XX:-UseBiasedLocking
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:+UseCondCardMark -XX:ParallelGCThreads=4
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 229922 232477 235031 237586 240141
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 121347 185215 195433 195433 197988 176225
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 2555 - / 2555 - / 2555 - / 2555 - / 2555 - / 2555
1000us 51094 / 53648 5109 / 7664 2555 / 5109 2555 / 5109 - / 2555 - / 2555
5000us 222258 / 224813 214594 / 217149 97078 / 99633 76641 / 79195 48539 / 51094 5109 / 2555
10000us 224813 / 227367 219703 / 222258 196711 / 199266 171164 / 173719 120070 / 122625 10219 / 12773
25000us 224813 / 227367 219703 / 222258 209485 / 212039 204375 / 206930 186492 / 183938 28102 / 17883
50000us 224813 / 227367 219703 / 222258 209485 / 212039 206930 / 209485 196711 / 194156 48539 / 17883
75000us 224813 / 227367 219703 / 222258 209485 / 212039 209485 / 212039 196711 / 194156 48539 / 17883
100000us 224813 / 227367 219703 / 222258 212039 / 214594 209485 / 212039 196711 / 199266 63867 / 17883
200000us 227367 / 229922 219703 / 222258 214594 / 217149 212039 / 214594 204375 / 206930 171164 / 166055
500000us 232477 / - 224813 / 227367 219703 / 222258 219703 / 222258 214594 / 217149 204375 / 206930
1000000us 232477 / - 232477 / - 227367 / 229922 224813 / 227367 222258 / 224813 214594 / 217149
Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

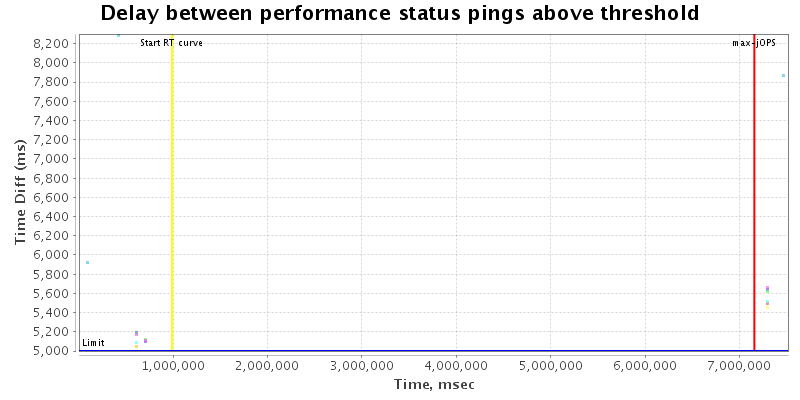

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.comm.connect.worker.pool.min 1 64
specjbb.forkjoin.workers 56 {Tier1=200, Tier2=1, Tier3=22}
specjbb.group.count 1 3
specjbb.mapreducer.pool.size 56 112
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 255469 IR
High-bound (settled) is 247284 IR
Copyright © 2015-2024 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.01, May 25, 2017]
