Fujitsu PRIMERGY TX1330 M4 26397 SPECjbb2015-Composite max-jOPS
13426 SPECjbb2015-Composite critical-jOPS
Tested by: Fujitsu Test Sponsor: Fujitsu Test location: Kawasaki, Japan Test date: Oct 13, 2018
SPEC license #: 19 Hardware Availability: Nov-2018 Software Availability: Jul-2018 Publication: Thu Nov 8 10:44:08 EST 2018
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorFujitsu
Vendor URLhttp://www.fujitsu.com/
System SourceSingle Supplier
System DesignationServer Tower
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores6
Total Threads12
Total Memory Amount (GB)64
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameFujitsu Server PRIMERGY TX1330 M4
VendorFujitsu
Vendor URLhttp://www.fujitsu.com/
AvailableNov-2018
ModelFujitsu Server PRIMERGY TX1330 M4
Form FactorTower or 4U rack mount
CPU NameIntel Xeon E-2186G
CPU Characteristics6 core, 3.80GHz, 12MB L3 Cache (Turbo Boost Technology up to 4.70 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System6
Cores Per Chip6
Threads Per System12
Threads Per Core2
VersionNone
CPU Frequency (MHz)3800
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache256 KB I+D on chip per core
Tertiary Cache12MB I+D on chip per chip
Other CacheNone
Disk1x 2TB SATA HDD
File Systemxfs
Memory Amount (GB)64
# and size of DIMM(s)4 x 16GB
Memory Details16GB 2Rx8 PC4-2666V-E
# and type of Network Interface Cards (NICs)1x 1 Gbit NIC
Power Supply Quantity and Rating (W)2 x 450W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
  • This result was measured on the PRIMERGY TX1320 M4. The PRIMERGY TX1320 M4 and the PRIMERGY TX1330 M4 are electrically equivalent.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15
VendorSUSE
Vendor URLhttp://www.suse.com/
Version4.12.14-23-default
AvailableJul-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 10.0.2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 10.0.2
AvailableJul-2018
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Intel(VMX) Virtualization Technology set to Disabled
  • C states set to Disabled
  • Hardware Prefetcher set to Disabled
  • VT-d set to Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • cpupower -c all frequency-set -g performance
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms27g -Xmx27g -Xmn26g -XX:SurvivorRatio=22 --add-modules=java.xml.bind -XX:MaxTenuringThreshold=15 -XX:+UseParallelOldGC -Xnoclassgc -XX:+UseNUMA -XX:-UseBiasedLocking -XX:-UseAdaptiveSizePolicy -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=12 -verbose:gc -XX:+UseHugeTLBFS -XX:ActiveProcessorCount=0 -XX:+UseCondCardMark -XX:+UseRTMDeopt -XX:+UseParallelGC
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 26054 26397 26740 27083 27426
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 9804 10798 14284 16341 17655 13426
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 686 / 1028 - / 343 - / 343 - / 343 - / 343 - / 343
1000us 9942 / 10285 1714 / 2057 1028 / 1371 1028 / 1371 686 / 1028 - / 343
5000us 25369 / 25711 22969 / 23312 17141 / 17484 13027 / 13370 6856 / 7199 1371 / 343
10000us 25369 / 25711 23997 / 24340 19198 / 19541 16798 / 17141 10627 / 9256 1714 / 2057
25000us 25711 / 26054 25026 / 25369 21598 / 21940 19198 / 19541 10627 / 10970 2743 / 2057
50000us 26054 / 26397 25026 / 25369 22626 / 22969 20569 / 20912 14741 / 14056 6171 / 2057
75000us 26054 / 26397 25369 / 25711 22626 / 22969 20569 / 20912 16798 / 16113 6171 / 2057
100000us 26054 / 26397 25369 / 25711 23312 / 23655 22626 / 21940 17827 / 17484 6171 / 2057
200000us 26397 / - 25711 / 26054 24683 / 24340 23997 / 24340 22626 / 21940 14741 / 2057
500000us 26397 / - 26397 / - 25711 / 26054 25711 / 26054 25369 / 24340 23997 / 23655
1000000us 26397 / - 26397 / - 26397 / - 26397 / - 26054 / 26397 26054 / 25711
Probes jOPS / Total jOPS

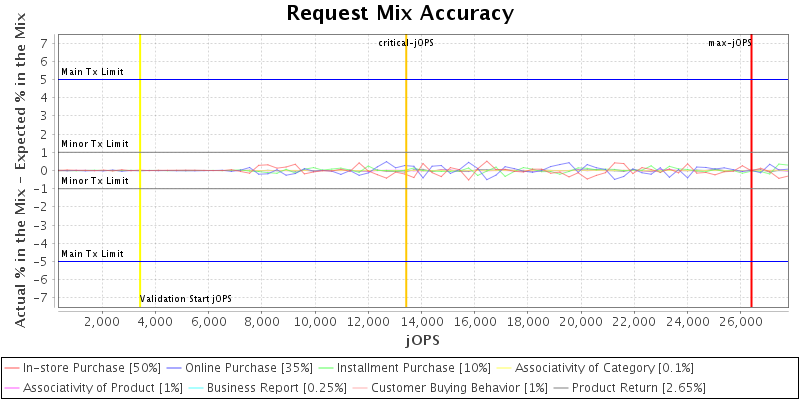

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

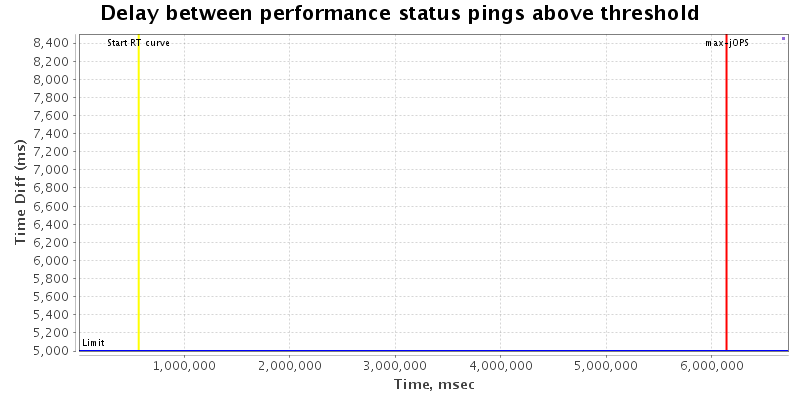

Delay between status pings

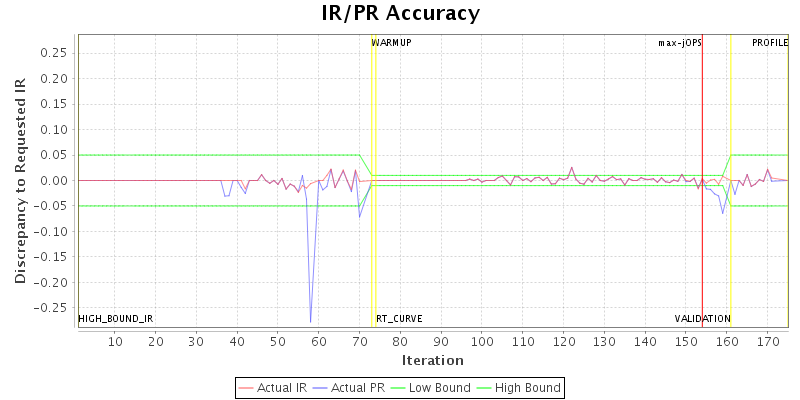

IR/PR Accuracy
This section lists properties only set by user
User did not set any property for this run

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 34282 IR
High-bound (settled) is 28585 IR
