Hewlett Packard Enterprise ProLiant DL560 Gen10 236292 SPECjbb2015-Composite max-jOPS
169812 SPECjbb2015-Composite critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: March 12, 2019
SPEC license #: 3 Hardware Availability: Apr-2019 Software Availability: Jan-2019 Publication: Tue Apr 2 15:05:14 EDT 2019
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips4
Total Cores112
Total Threads224
Total Memory Amount (GB)1536
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant DL560 Gen10
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableApr-2019
ModelProLiant DL560 Gen10
Form Factor2U Rack
CPU NameIntel Xeon Platinum 8280
CPU Characteristics28 Core, 2.7 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.0 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
VersionU34 2.00 02/02/2019
CPU Frequency (MHz)2700
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1024 KB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk2 x 400 GB SSD SATA
File SystemXFS
Memory Amount (GB)1536
# and size of DIMM(s)48 x 32 GB
Memory Details32 GB 2Rx4 PC4-2933Y-R
# and type of Network Interface Cards (NICs)HP FlexFabric 10Gb 2-port
Power Supply Quantity and Rating (W)2 x 1600
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server release 7.6 (Maipo)
VendorRedHat
Vendor URLhttps://www.redhat.com/
Version3.10.0-957
AvailableOct-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 11.0.2
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 11.0.2
AvailableJan-2019
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Workload Profile=High Performance Compute
  • Thermal Configuration=Maximum Cooling
  • Memory Partrol Scrubbing=Disabled
  • Enhanced Processor Performance=Enabled
  • LLC Prefetcher=Enabled
  • Advanced Memory Protection=Advanced ECC Support
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • tuned-adm profile=latency-performance
  • ulimit -n 655350
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms690g -Xmx690g -Xmn660g -XX:SurvivorRatio=69 -XX:MaxTenuringThreshold=15 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -Xnoclassgc -XX:+AggressiveOpts -XX:+UseNUMA -XX:-UseBiasedLocking -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=112 -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:+AggressiveHeap -XX:UseAVX=0 -XX:LoopUnrollLimit=20 -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 233751 236292 238832 241373 243914
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 92738 158798 199309 214554 224222 169812
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 12704 / 15245 - / 2541 - / 2541 - / 2541 - / 2541 - / 2541
1000us 185476 / 188017 22867 / 25408 5082 / 7622 5082 / 7622 2541 / 5082 - / 2541
5000us 231210 / 233751 215965 / 218506 96549 / 94008 73682 / 76223 50815 / 53356 7622 / 5082
10000us 236292 / - 231210 / 233751 190558 / 188017 147365 / 144824 91468 / 94008 40652 / 5082
25000us 236292 / - 236292 / - 231210 / 233751 223588 / 226129 182935 / 134661 53356 / 10163
50000us 236292 / - 236292 / - 233751 / 236292 231210 / 233751 208343 / 188017 58438 / 10163
75000us 236292 / - 236292 / - 233751 / 236292 231210 / 233751 223588 / 203262 111794 / 10163
100000us 236292 / - 236292 / - 233751 / 236292 233751 / 236292 228669 / 210884 111794 / 71142
200000us 236292 / - 236292 / - 236292 / - 236292 / - 231210 / 233751 142283 / 99090
500000us 236292 / - 236292 / - 236292 / - 236292 / - 236292 / - 226129 / 210884
1000000us 236292 / - 236292 / - 236292 / - 236292 / - 236292 / - 231210 / 233751

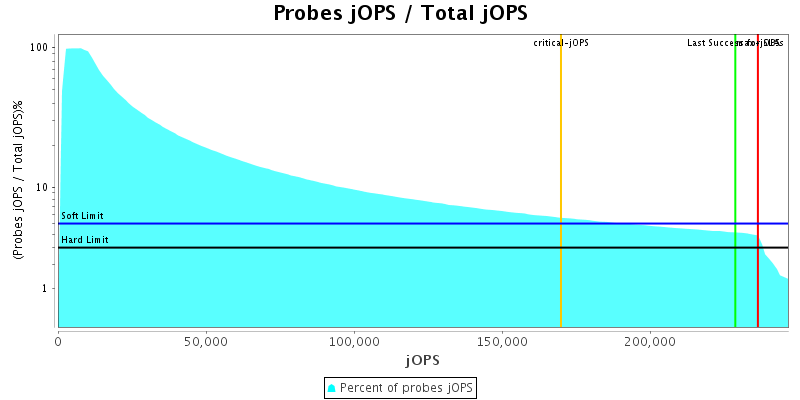

Probes jOPS / Total jOPS

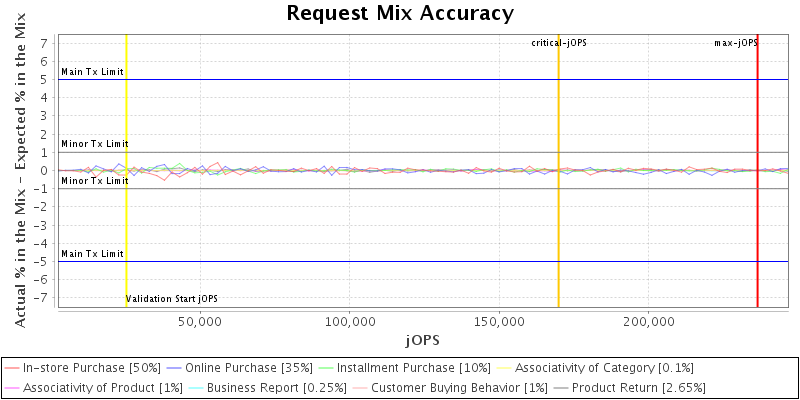

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.timeouts.connect 60000 700000
specjbb.comm.connect.timeouts.read 60000 700000
specjbb.comm.connect.timeouts.write 60000 700000
specjbb.customerDriver.threads 64 {probe=96}
specjbb.forkjoin.workers 224 {Tier1=222, Tier2=1, Tier3=50}
specjbb.heartbeat.period 10000 100000
specjbb.heartbeat.threshold 100000 1000000
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 254077 IR
High-bound (settled) is 252554 IR
