SPECjbb2015
Copyright © 2015-2019 Standard Performance Evaluation Corporation
Hewlett Packard Enterprise ProLiant DL360 Gen10 80467 SPECjbb2015-Composite max-jOPS
63228 SPECjbb2015-Composite critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: Mar 11, 2019
SPEC license #: 3 Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Tue Apr 2 15:05:14 EDT 2019
Benchmark Results Summary

SPECjbb2015-Composite: Single JVM/Single Host
(# of groups: 1)

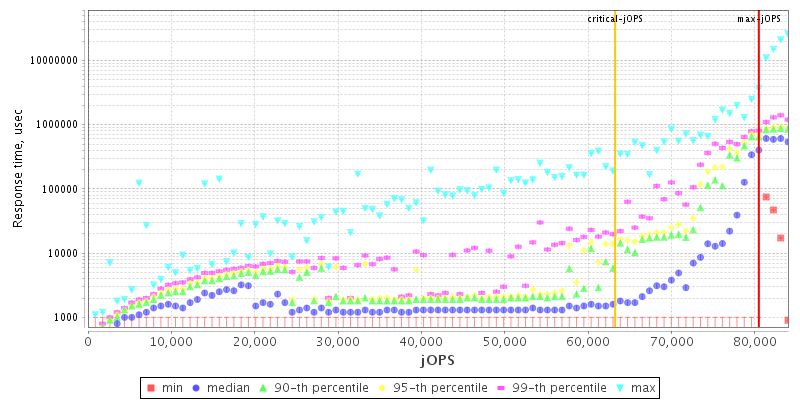

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips1
Total Cores28
Total Threads56
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameProLiant DL360 Gen10
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableApr-2019
ModelProLiant DL360 Gen10
Form Factor1U
CPU NameIntel Xeon Platinum 8280
CPU Characteristics28 Core, 2.70 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.00 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System28
Cores Per Chip28
Threads Per System56
Threads Per Core2
VersionU30 2.00 02/02/2019
CPU Frequency (MHz)2700
Primary Cache32 KB I + 32 KB D On Chip Per Core
Secondary Cache1024 KB I+D On Chip Per Core
Tertiary Cache38.5 MB I+D On Chip Per Chip
Other CacheNone
Disk1 x 480 GB SSD SATA
File SystemNTFS
Memory Amount (GB)768
# and size of DIMM(s)12 x 64 GB
Memory Details64 GB 2Rx4 PC4-2933Y-R
# and type of Network Interface Cards (NICs)1 x HPE 331i 4 Port 1 Gbit Ethernet
Power Supply Quantity and Rating (W)2 x 1600
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2019 Standard
VendorMicrosoft
Vendor URLhttp://microsoft.com/
Version1809 (Build 17763.348)
AvailableMar-2019
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u201
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM (build 25.201-b09, mixed mode)
AvailableJan-2019
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Workload Profile=High Performance Compute
  • Memory Patrol Scrubbing=Disabled
  • LLC Dead Line Allocation=Disabled
  • LLC Prefetch=Enabled
  • XPT Prefetcher=Enabled
  • Enhanced Processor Performance=Enabled
  • Thermal Configuration=Maximum Cooling
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • Lock Pages In Memory=Enabled
  • Performance Options=Adjust For Best Performance
  • Power Options=High Performance
  • Processor Scheduling=Programs
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms690g -Xmx690g -Xmn660g -XX:+UseParallelOldGC -XX:ParallelGCThreads=112 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:-UseBiasedLocking -XX:+AggressiveOpts -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=69 -XX:MaxTenuringThreshold=15 -XX:TargetSurvivorRatio=90 -XX:+UseNUMA -XX:+AggressiveHeap -XX:-UsePerfData -Xnoclassgc
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 79592 80467 81342 82216 83091
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 48378 63973 66691 69621 70320 63228
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 3499 / 4373 1749 / 2624 875 / 1749 875 / 1749 - / 875 - / 875
1000us 71720 / 13994 5248 / 6122 3499 / 4373 2624 / 3499 2624 / 3499 - / 875
5000us 78718 / 79592 71720 / 72595 61225 / 20991 58601 / 18367 52478 / 15744 10496 / 2624
10000us 78718 / 79592 73470 / 74344 62974 / 60350 61225 / 57726 52478 / 39359 28863 / 6122
25000us 79592 / 80467 76968 / 77843 72595 / 73470 71720 / 70846 65598 / 54228 31487 / 6122
50000us 79592 / 80467 77843 / 78718 72595 / 73470 72595 / 73470 67347 / 64723 40233 / 6122
75000us 79592 / 80467 77843 / 78718 73470 / 74344 72595 / 73470 71720 / 68222 40233 / 6122
100000us 79592 / 80467 77843 / 78718 73470 / 74344 72595 / 73470 71720 / 68222 49854 / 6122
200000us 80467 / - 78718 / 79592 76094 / 76968 74344 / 75219 72595 / 73470 67347 / 54228
500000us 80467 / - 80467 / - 78718 / 79592 77843 / 78718 77843 / 75219 68222 / 65598
1000000us 80467 / - 80467 / - 80467 / - 80467 / - 80467 / - 74344 / 75219
Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

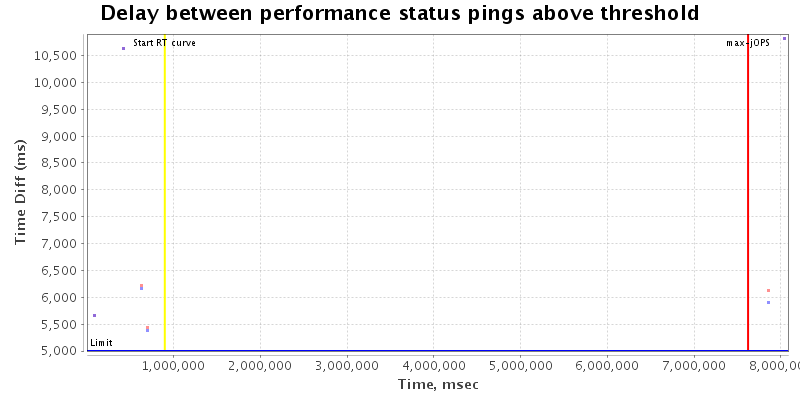

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 2
specjbb.comm.connect.timeouts.connect 60000 7000000
specjbb.comm.connect.timeouts.read 60000 6000000
specjbb.comm.connect.timeouts.write 60000 6000000
specjbb.heartbeat.threshold 100000 10000000
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 87464 IR
High-bound (settled) is 84717 IR
Copyright © 2015-2019 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.02, Jan 10, 2019]
