Hewlett Packard Enterprise ProLiant DL360 Gen10 163751 SPECjbb2015-MultiJVM max-jOPS
44783 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: Mar 03, 2019
SPEC license #: 3 Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Tue Apr 2 15:05:14 EDT 2019
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips2
Total Cores56
Total Threads112
Total Memory Amount (GB)384
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant DL360 Gen10
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableApr-2019
ModelProLiant DL360 Gen10
Form Factor1U
CPU NameIntel Xeon Platinum 8280
CPU Characteristics28 Core, 2.70 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.00 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
VersionU30 2.00 02/02/2019
CPU Frequency (MHz)2700
Primary Cache32 KB I + 32 KB D On Chip Per Core
Secondary Cache1024 KB I+D On Chip Per Core
Tertiary Cache38.5 MB I+D On Chip Per Chip
Other CacheNone
Disk1 x 480 GB SSD SATA
File SystemNTFS
Memory Amount (GB)384
# and size of DIMM(s)24 x 16 GB
Memory Details16 GB 2Rx8 PC4-2933Y-R
# and type of Network Interface Cards (NICs)1 x HPE 331i 4 Port 1 Gbit Ethernet
Power Supply Quantity and Rating (W)2 x 1600
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2019 Standard
VendorMicrosoft
Vendor URLhttp://microsoft.com/
Version1809 (Build 17763.348)
AvailableMar-2019
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u201
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM (build 25.201-b09, mixed mode)
AvailableJan-2019
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Workload Profile=High Performance Compute
  • Memory Patrol Scrubbing=Disabled
  • Sub-NUMA Clustering=Enabled
  • LLC Dead Line Allocation=Disabled
  • LLC Prefetch=Enabled
  • XPT Prefetcher=Enabled
  • Enhanced Processor Performance=Enabled
  • Thermal Configuration=Maximum Cooling
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • Lock Pages In Memory=Enabled
  • Performance Options=Adjust For Best Performance
  • Power Options=High Performance
  • Processor Scheduling=Programs
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xmx30g -Xms30g -Xmn27g -XX:+UseParallelOldGC -XX:ParallelGCThreads=28 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+AggressiveOpts -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -XX:+UseRTMLocking -XX:+UseRTMDeopt -verbose:gc
Tuning Affinitized Each JVM To Each Group In A NUMA Node Using START /NODE
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC
Tuning Affinitized Each JVM To Each Group In A NUMA Node START /NODE
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 161778 163751 165724 167696 169669
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 22688 40444 46363 60173 70366 44783
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 1973 / 3946 - / 1973 - / 1973 - / 1973 - / 1973 - / 1973
1000us 15783 / 17756 3946 / 5919 1973 / 3946 1973 / 3946 - / 1973 - / 1973
5000us 132184 / 118374 49322 / 51295 21702 / 23675 19729 / 21702 15783 / 17756 - / 1973
10000us 132184 / 134157 92726 / 94699 59187 / 61160 49322 / 51295 23675 / 21702 - / 1973
25000us 149940 / 151913 145995 / 147967 126266 / 128238 102591 / 104564 39458 / 41431 5919 / 3946
50000us 149940 / 151913 147967 / 149940 132184 / 134157 112455 / 110482 45377 / 47350 5919 / 3946
75000us 151913 / 153886 147967 / 149940 136130 / 138103 116401 / 118374 59187 / 61160 5919 / 3946
100000us 151913 / 153886 149940 / 151913 140076 / 142049 124293 / 126266 72997 / 69051 5919 / 3946
200000us 153886 / 155859 149940 / 151913 145995 / 147967 144022 / 145995 126266 / 128238 65106 / 23675
500000us 159805 / 161778 155859 / 157832 149940 / 151913 149940 / 151913 145995 / 147967 136130 / 128238
1000000us 163751 / 161778 159805 / 161778 155859 / 157832 155859 / 157832 153886 / 155859 145995 / 147967
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

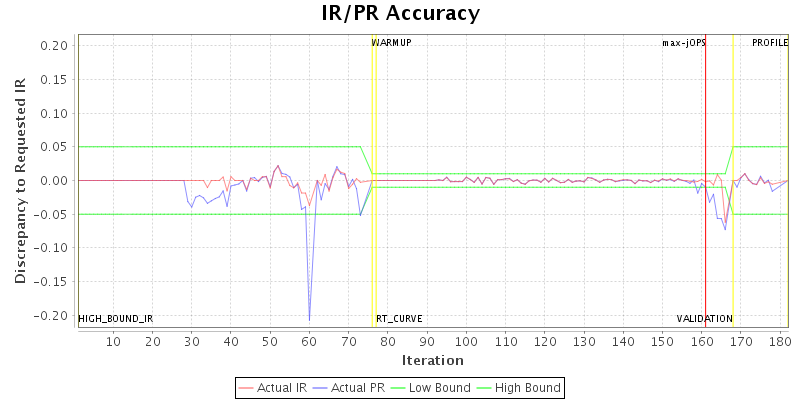

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 224
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 700000
specjbb.comm.connect.timeouts.read 60000 700000
specjbb.comm.connect.timeouts.write 60000 700000
specjbb.comm.connect.worker.pool.max 256 112
specjbb.comm.connect.worker.pool.min 1 64
specjbb.forkjoin.workers 28 {Tier1=180, Tier2=1, Tier3=25}
specjbb.group.count 1 4
specjbb.mapreducer.pool.size 28 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 197290 IR
High-bound (settled) is 164475 IR
