Huawei Technologies Co., Ltd FusionServer 2288H V5 92973 SPECjbb2015-Composite max-jOPS
66384 SPECjbb2015-Composite critical-jOPS
Tested by: Huawei Technologies Co., Ltd Test Sponsor: Huawei Technologies Co., Ltd Test location: Shen Zhen, China Test date: Mar 13, 2019
SPEC license #: 3175 Hardware Availability: Apr-2019 Software Availability: Feb-2019 Publication: Tue Apr 2 15:05:14 EDT 2019
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores28
Total Threads56
Total Memory Amount (GB)384
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameFusionServer 2288H V5
VendorHuawei Technologies Co., Ltd
Vendor URLhttp://www.huawei.com/
AvailableApr-2019
ModelFusionServer 2288H V5
Form Factor2U
CPU NameIntel Xeon Platinum 8280
CPU Characteristics28 Core, 2.70GHz, 39424KB L3 Cache (Turbo Boost Technology up to 4.0 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System28
Cores Per Chip28
Threads Per System56
Threads Per Core2
Version636 02/15/2019
CPU Frequency (MHz)2700
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1024 KB I+D on chip per core
Tertiary Cache38.5M I+D on chip per chip
Other CacheNone
Disk1x 960GB SATA SSD
File Systemxfs
Memory Amount (GB)384
# and size of DIMM(s)12 x 32GB
Memory Details384 GB (12 x 32 GB 2Rx4 PC4-2933Y-R)
# and type of Network Interface Cards (NICs)LOM with 2 x 10GbE + 2 x GbE Intel X722 Ethernet controller
Power Supply Quantity and Rating (W)1 x 1500W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2019 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/en-us/
VersionVersion 1809 (OS Build 17763.348)
AvailableOct-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 11.0.2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.2+9-LTS, mixed mode)
AvailableJan-2019
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Power policy set to Performance
  • IMC level interleave set to 1-Way
  • Sub-NUMA Clustering enabled
  • Memory Patrol Scrub disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
  • Lock Pages in Memory is Enabled
  • Performance Options is set to Adjust for best performance
  • Total paging file size for all drives is set to 28,672 MB
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms300g -Xmx300g -Xmn290g -XX:+AggressiveOpts -XX:+UseLargePages -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=48 -XX:AllocatePrefetchInstr=2 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:InlineSmallCode=10k -Xnoclassgc
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 91951 92973 93995 95016 96038
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 49721 61536 71955 74923 78158 66384
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 6130 / 7152 1022 / 2043 1022 / 2043 - / 1022 - / 1022 - / 1022
1000us 87864 / 88886 6130 / 7152 3065 / 4087 3065 / 4087 2043 / 3065 - / 1022
5000us 91951 / 92973 87864 / 88886 74583 / 24520 70496 / 22477 42911 / 19412 7152 / 4087
10000us 91951 / 92973 88886 / 89908 78669 / 77648 74583 / 75604 61301 / 43932 11238 / 5108
25000us 91951 / 92973 89908 / 90930 78669 / 79691 76626 / 77648 64366 / 52106 26564 / 5108
50000us 91951 / 92973 89908 / 90930 83778 / 82756 78669 / 79691 74583 / 68453 34737 / 5108
75000us 91951 / 92973 90930 / 91951 86843 / 87864 83778 / 82756 76626 / 71518 41889 / 5108
100000us 91951 / 92973 91951 / 92973 87864 / 88886 84799 / 85821 77648 / 78669 59257 / 24520
200000us 91951 / 92973 91951 / 92973 89908 / 90930 88886 / 89908 86843 / 87864 72539 / 49041
500000us 92973 / - 91951 / 92973 91951 / 92973 91951 / 92973 89908 / 90930 85821 / 80713
1000000us 92973 / - 92973 / - 92973 / - 91951 / 92973 91951 / 92973 90930 / 86843
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

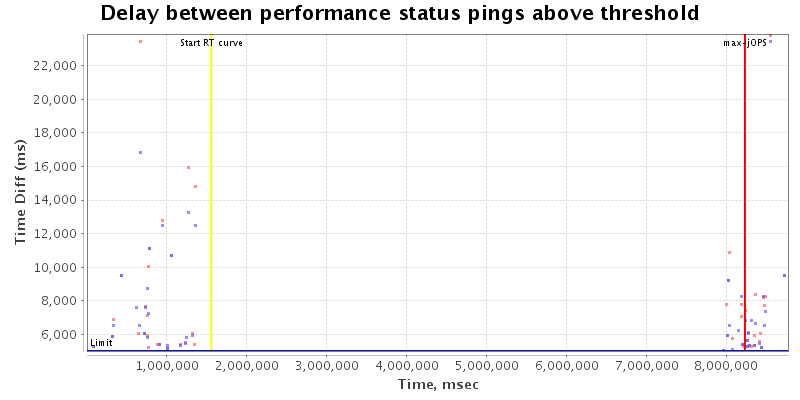

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 300
specjbb.comm.connect.worker.pool.max 256 300
specjbb.comm.connect.worker.pool.min 1 64
specjbb.forkjoin.workers 56 {Tier1=110, Tier2=1, Tier3=25}
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 102168 IR
High-bound (settled) is 99391 IR
