New H3C Technologies Co., Ltd. H3C UniServer R6700 G3 230352 SPECjbb2015-Composite max-jOPS
190787 SPECjbb2015-Composite critical-jOPS
Tested by: New H3C Technologies Co., Ltd. Test Sponsor: New H3C Technologies Co., Ltd. Test location: Hangzhou, ZheJiang, China Test date: May 14, 2019
SPEC license #: 9066 Hardware Availability: Oct-2018 Software Availability: Apr-2019 Publication: Mon Aug 19 11:52:48 EDT 2019
Benchmark Results Summary

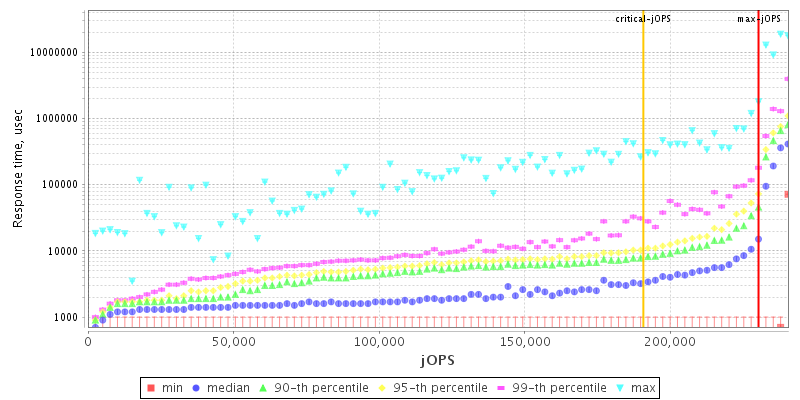

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorNew H3C Technologies Co., Ltd.
Vendor URLhttp://www.h3c.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores112
Total Threads224
Total Memory Amount (GB)3072
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameH3C UniServer R6700 G3
VendorNew H3C Technologies Co., Ltd.
Vendor URLhttp://www.h3c.com
AvailableDec-2018
ModelH3C UniServer R6700 G3
Form Factor2U
CPU NameIntel Xeon Platinum 8180
CPU Characteristics28 Core, 2.5 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.8 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
Version2.00.27 V100R001B02D027
CPU Frequency (MHz)2500
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1 MB I+D on chip per core
Tertiary Cache38.5MB I+D on chip per chip
Other CacheNone
Disk1x 960GB SATA SSD
File Systemxfs
Memory Amount (GB)3072
# and size of DIMM(s)48 x 64GB
Memory Details64GB 4DRx4 PC4-2666V-LE2-11
# and type of Network Interface Cards (NICs)1x 1 Gbit NIC
Power Supply Quantity and Rating (W)2 x 1200
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
  • Supported by New H3C Technologies Co., Ltd.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server 7.6 (Maipo)
VendorRed Hat
Vendor URLhttp://www.redhat.com/
Version3.10.0-957.12.1.el7.x86_64
AvailableOct-2018
Bitness64
NotesSupported by Red Hat
Java Virtual Machine jvm_1
NameOracle Java SE 12.0.1
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 12.0.1
AvailableApr-2019
Bitness64
NotesSupported by Oracle
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Power and Performance Policy Performance
  • Patrol Scrub Disabled
  • SNC Disable
  • IMC Interleave Auto
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • ulimit -n 1048576
  • cpupower -c all frequency-set -g performance
  • echo 6000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 0 > /proc/sys/kernel/numa_balancing
  • SELinux=disabled
  • tuned-adm profile latency-performance
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms1380g -Xmx1380g -Xmn1350g -XX:SurvivorRatio=69 -XX:MaxTenuringThreshold=15 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelOldGC -Xnoclassgc -XX:+AggressiveOpts -XX:+UseNUMA -XX:-UseBiasedLocking -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=224 -verbose:gc -XX:+PrintGCDetails -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:+AggressiveHeap
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 227821 230352 232883 235415 237946
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 130223 183838 213265 218539 226555 190787
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 5063 / 7594 - / 2531 - / 2531 - / 2531 - / 2531 - / 2531
1000us 141755 / 131630 5063 / 7594 2531 / 5063 2531 / 5063 2531 / 5063 - / 2531
5000us 227821 / 230352 210101 / 212633 113910 / 116442 88597 / 91128 58221 / 55689 15188 / 2531
10000us 230352 / - 225289 / 227821 202507 / 205039 184788 / 187319 139224 / 118973 48095 / 2531
25000us 230352 / - 230352 / - 225289 / 227821 217695 / 220227 194913 / 177194 58221 / 17719
50000us 230352 / - 230352 / - 230352 / - 225289 / 227821 217695 / 199976 98722 / 17719
75000us 230352 / - 230352 / - 230352 / - 230352 / - 220227 / 215164 139224 / 17719
100000us 230352 / - 230352 / - 230352 / - 230352 / - 225289 / 227821 139224 / 17719
200000us 230352 / - 230352 / - 230352 / - 230352 / - 230352 / - 169600 / 103785
500000us 230352 / - 230352 / - 230352 / - 230352 / - 230352 / - 220227 / 207570
1000000us 230352 / - 230352 / - 230352 / - 230352 / - 230352 / - 225289 / 227821

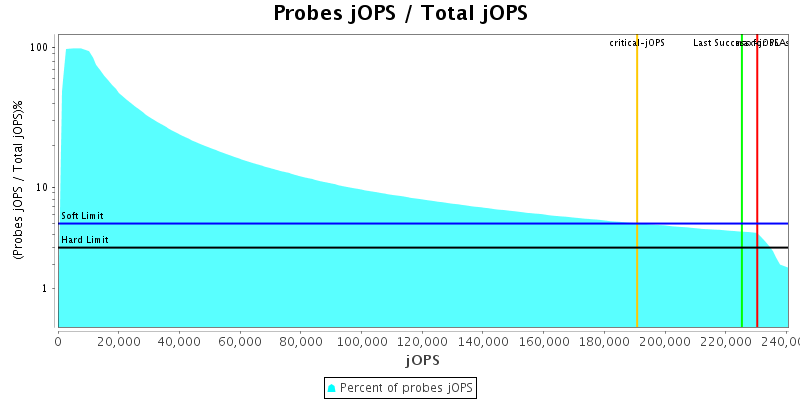

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

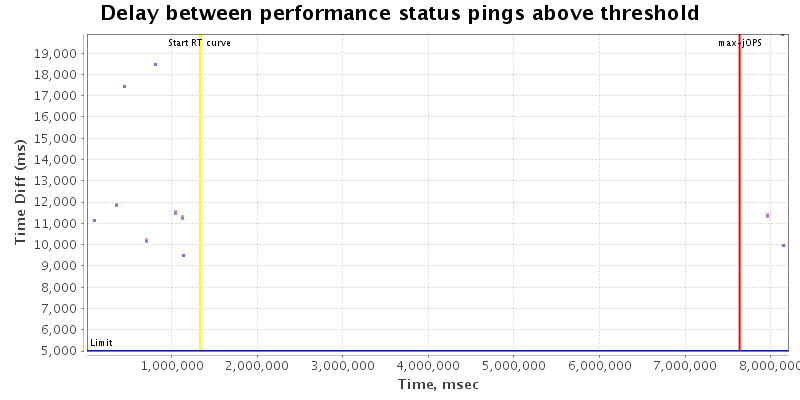

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 64
specjbb.comm.connect.selector.runner.count 0 0
specjbb.comm.connect.timeouts.connect 60000 700000
specjbb.comm.connect.timeouts.read 60000 700000
specjbb.comm.connect.timeouts.write 60000 700000
specjbb.comm.connect.worker.pool.max 256 256
specjbb.comm.connect.worker.pool.min 1 1
specjbb.controller.maxir.maxFailedPoints 3 3
specjbb.controller.rtcurve.warmup.step 0.1 0.8
specjbb.customerDriver.threads 64 {=84, probe=96, saturate=96}
specjbb.forkjoin.workers 224 {=224, Tier1=221, Tier2=1, Tier3=50}
specjbb.heartbeat.threshold 100000 200000
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 253134 IR
High-bound (settled) is 248387 IR
