Hewlett Packard Enterprise ProLiant DL325 Gen10 153886 SPECjbb2015-MultiJVM max-jOPS
119716 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: July 11, 2019
SPEC license #: 3 Hardware Availability: Aug-2019 Software Availability: Jun-2019 Publication: Wed Aug 7 19:56:20 EDT 2019
Benchmark Results Summary

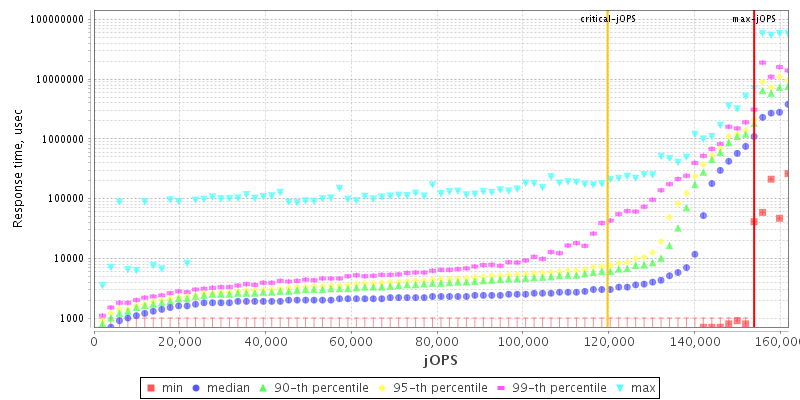

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips1
Total Cores64
Total Threads128
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant DL325 Gen10
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableAug-2019
ModelProLiant DL325 Gen10
Form Factor1U Rack
CPU NameAMD EPYC 7702P
CPU Characteristics64 Core, 2.0 GHz, 256 MB L3 cache (Turbo Boost Technology up to 3.35 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System64
Cores Per Chip64
Threads Per System128
Threads Per Core2
VersionA41 07/04/2019
CPU Frequency (MHz)2000
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache512 KB I+D on chip per core
Tertiary Cache256 MB L3 cache per chip
Other CacheNone
Disk1 x 480 GB SSD SATA
File SystemXFS
Memory Amount (GB)512
# and size of DIMM(s)8 x 64 GB
Memory Details64 GB 4Rx4 PC4-2933Y-L
# and type of Network Interface Cards (NICs)HPE Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)2 x 800
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP1
VendorSUSE
Vendor URLhttps://www.suse.com/
Version4.12.14-195-default
AvailableJun-2019
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOpenJDK 12.0.1
VendorOpenJDK (openjdk.java.net)
Vendor URLhttp://openjdk.java.net/
VersionOpenJDK 64-bit Server VM, version 12.0.1
AvailableApr-2019
Bitness64
NotesCommunity Support:
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Workload Profile=High Performance Compute(HPC)
  • Thermal Configuration=Maximum Cooling
  • Performance Determinism=Power Deterministic
  • Memory Patrol Scrubbing=Disabled
  • NUMA memory domains per socket=Two memory domains per socket
  • Maximum memory Bus Frequency=2933
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • tuned-adm profile=throughput-performance
  • ulimit -n 655350
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 100000000 > /proc/sys/kernel/sched_latency_ns
  • echo 80000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 600000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 100000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line

-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4

Tuning None
Notes

numactl --interleave=all

JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-Xms118g -Xmx118g -Xmn116g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -XX:SurvivorRatio=50 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=32 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:ThreadStackSize=1m -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:+BindGCTaskThreadsToCPUs -XX:+UseTransparentHugePages

Tuning None
Notes

Used numactl to affinitize two Backend JVMs to a NUMA node.

  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=1 --localalloc
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line

-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4

Tuning None
Notes

Used numactl to affinitize two Transaction Injector JVMs to a NUMA node.

  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=1 --localalloc
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 151913 153886 155859 157832 159805
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 103577 115414 121333 129224 131197 119716
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 1973 / 3946 - / 1973 - / 1973 - / 1973 - / 1973 - / 1973
1000us 49322 / 51295 7892 / 9864 3946 / 5919 1973 / 3946 - / 1973 - / 1973
5000us 140076 / 142049 132184 / 134157 106537 / 108509 90753 / 92726 63133 / 61160 1973 / 3946
10000us 142049 / 144022 138103 / 140076 132184 / 134157 126266 / 128238 104564 / 102591 21702 / 5919
25000us 144022 / 145995 140076 / 142049 134157 / 136130 132184 / 134157 114428 / 116401 21702 / 5919
50000us 144022 / 145995 140076 / 142049 136130 / 138103 134157 / 136130 120347 / 122320 21702 / 5919
75000us 144022 / 145995 142049 / 144022 138103 / 140076 134157 / 136130 128238 / 130211 21702 / 5919
100000us 145995 / 147967 142049 / 144022 138103 / 140076 136130 / 138103 130211 / 132184 65106 / 27621
200000us 147967 / 149940 144022 / 145995 140076 / 142049 138103 / 140076 134157 / 136130 118374 / 106537
500000us 151913 / 153886 147967 / 149940 144022 / 145995 142049 / 144022 140076 / 142049 138103 / 132184
1000000us 153886 / - 151913 / 153886 147967 / 149940 145995 / 147967 145995 / 147967 142049 / 140076

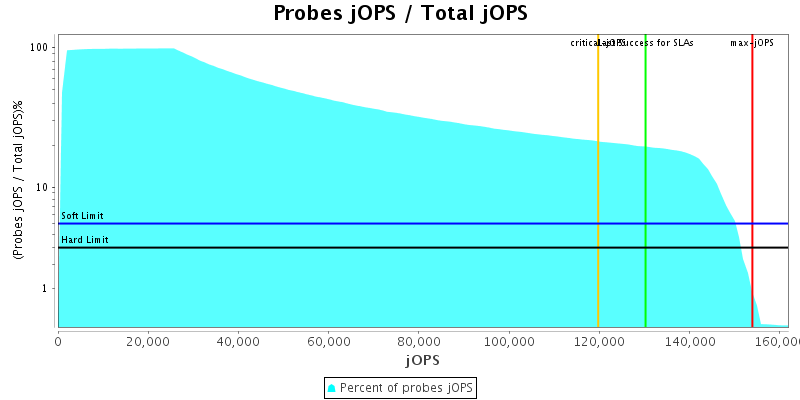

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

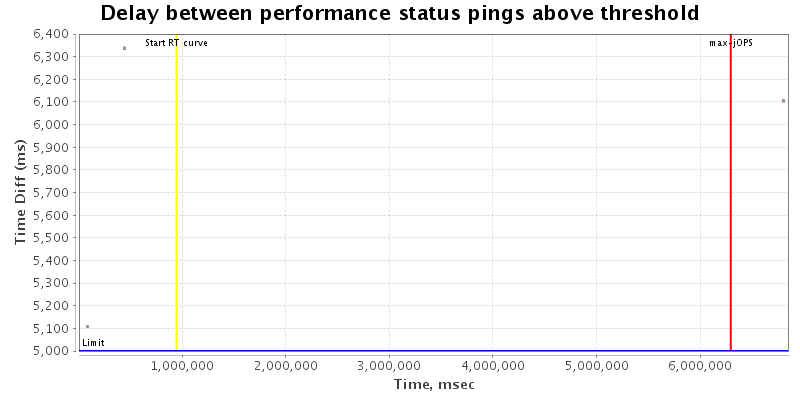

Delay between status pings

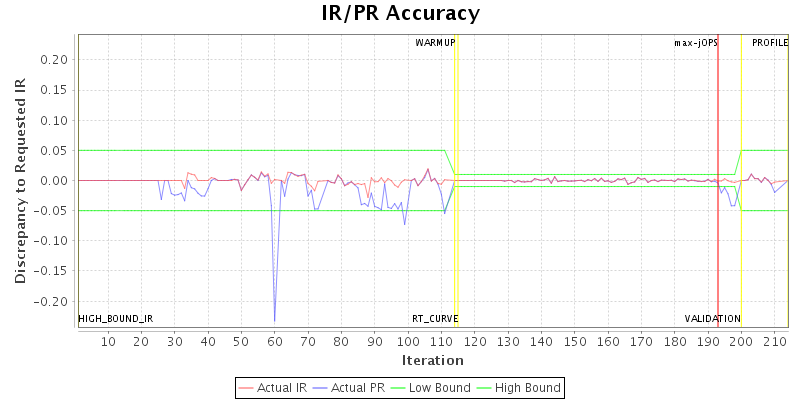

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.controller.handshake.period 5000 20000
specjbb.controller.handshake.timeout 600000 800000
specjbb.forkjoin.workers 128 {Tier1=64, Tier2=1, Tier3=12}
specjbb.group.count 1 4
specjbb.heartbeat.period 10000 2000
specjbb.heartbeat.threshold 100000 900000
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 197290 IR
High-bound (settled) is 167447 IR
