Hewlett Packard Enterprise ProLiant DL385 Gen10 331821 SPECjbb2015-MultiJVM max-jOPS
145262 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Hewlett Packard Enterprise Test date: Jul 10, 2019
SPEC license #: 3 Hardware Availability: Aug-2019 Software Availability: Jun-2019 Publication: Wed Aug 7 19:56:20 EDT 2019
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips2
Total Cores128
Total Threads256
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant DL385 Gen10
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableAug-2019
ModelProLiant DL385 Gen10
Form Factor2U Rack
CPU NameAMD EPYC 7702
CPU Characteristics64 Core, 2.0 GHz, 256 MB L3 cache (Turbo Boost Technology up to 3.35 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
VersionA40 07/04/2019
CPU Frequency (MHz)2000
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache512 KB I+D on chip per core
Tertiary Cache256 MB L3 cache per chip
Other CacheNone
Disk1 x 400 GB SSD SAS
File SystemXFS
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64 GB 4Rx4 PC4-2933Y-L
# and type of Network Interface Cards (NICs)HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)2 x 800
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP1
VendorSUSE
Vendor URLhttps://www.suse.com/
Version4.12.14-195-default
AvailableJun-2019
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOpenJDK 12.0.1
VendorOpenJDK (openjdk.java.net)
Vendor URLhttp://openjdk.java.net/
VersionOpenJDK 64-Bit Server VM version 12.0.1
AvailableApr-2019
Bitness64
NotesCommunity Support:
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Workload Profile=High Performance Compute(HPC)
  • Thermal Configuration=Maximum Cooling
  • Performance Determinism=Power Deterministic
  • Memory Patrol Scrubbing=Disabled
  • NUMA memory domains per socket=Four memory domains per socket
  • Last-Level Cache(LLC) As NUMA Node= Enabled
  • Processor Power and Utilization Monitoring = Disabled
  • Memory Pre-Failure Notification = Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description os_1
Tuning
  • tuned-adm profile=throughput-performance
  • ulimit -n 655350
  • echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 80000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 16 > /proc/sys/kernel/sched_nr_migrate
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 10000000 > /proc/sys/kernel/sched_latency_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms3g -Xmx3g -Xmn2g -XX:+UseParallelOldGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning None
Notes numactl --interleave=all
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-showversion -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=98 -XX:ParallelGCThreads=16 -XX:MaxTenuringThreshold=15 -Xnoclassgc -XX:+PrintGCDetails -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=300 -XX:ThreadStackSize=1m

Tuning None
Notes

Used numactl to affinitize each Backend JVM to two NUMA nodes.

  • numactl --cpunodebind=0,1 --localalloc
  • numactl --cpunodebind=2,3 --localalloc
  • numactl --cpunodebind=4,5 --localalloc
  • numactl --cpunodebind=6,7 --localalloc
  • numactl --cpunodebind=8,9 --localalloc
  • numactl --cpunodebind=10,11 --localalloc
  • numactl --cpunodebind=12,13 --localalloc
  • numactl --cpunodebind=14,15 --localalloc
  • numactl --cpunodebind=16,17 --localalloc
  • numactl --cpunodebind=18,19 --localalloc
  • numactl --cpunodebind=20,21 --localalloc
  • numactl --cpunodebind=22,23 --localalloc
  • numactl --cpunodebind=24,25 --localalloc
  • numactl --cpunodebind=26,27 --localalloc
  • numactl --cpunodebind=28,29 --localalloc
  • numactl --cpunodebind=30,31 --localalloc
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms4g -Xmx4g -Xmn3g -XX:+UseParallelOldGC -XX:ParallelGCThreads=3 -XX:CICompilerCount=2
Tuning None
Notes

Used numactl to affinitize each Transaction Injector JVM to a Numa Node.

  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=3 --localalloc
  • numactl --cpunodebind=5 --localalloc
  • numactl --cpunodebind=7 --localalloc
  • numactl --cpunodebind=9 --localalloc
  • numactl --cpunodebind=11 --localalloc
  • numactl --cpunodebind=13 --localalloc
  • numactl --cpunodebind=15 --localalloc
  • numactl --cpunodebind=17 --localalloc
  • numactl --cpunodebind=19 --localalloc
  • numactl --cpunodebind=21 --localalloc
  • numactl --cpunodebind=23 --localalloc
  • numactl --cpunodebind=25 --localalloc
  • numactl --cpunodebind=27 --localalloc
  • numactl --cpunodebind=29 --localalloc
  • numactl --cpunodebind=31 --localalloc
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 328007 331821 335635 339449 343263
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 108700 123956 146840 169724 192608 145262
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 3814 / 7628 - / 3814 - / 3814 - / 3814 - / 3814 - / 3814
1000us 30512 / 34326 7628 / 11442 3814 / 7628 3814 / 7628 - / 3814 - / 3814
5000us 270796 / 274610 186887 / 190701 76281 / 80095 68653 / 72467 45768 / 49582 - / 3814
10000us 278424 / 282238 255540 / 259354 205958 / 209772 175445 / 179259 106793 / 110607 19070 / 3814
25000us 286052 / 289866 270796 / 274610 240284 / 244098 221214 / 225028 129677 / 118235 19070 / 15256
50000us 289866 / 293680 274610 / 278424 247912 / 251726 232656 / 236470 144933 / 148747 19070 / 15256
75000us 289866 / 293680 278424 / 282238 259354 / 263168 240284 / 244098 167817 / 171631 19070 / 15256
100000us 293680 / 297494 282238 / 286052 263168 / 266982 247912 / 251726 190701 / 194516 19070 / 15256
200000us 301308 / 305122 289866 / 293680 274610 / 278424 266982 / 270796 244098 / 247912 61024 / 15256
500000us 328007 / 331821 312750 / 316564 297494 / 301308 293680 / 297494 289866 / 293680 244098 / 247912
1000000us 331821 / - 328007 / 331821 324193 / 328007 320379 / 324193 316564 / 320379 289866 / 282238
Probes jOPS / Total jOPS

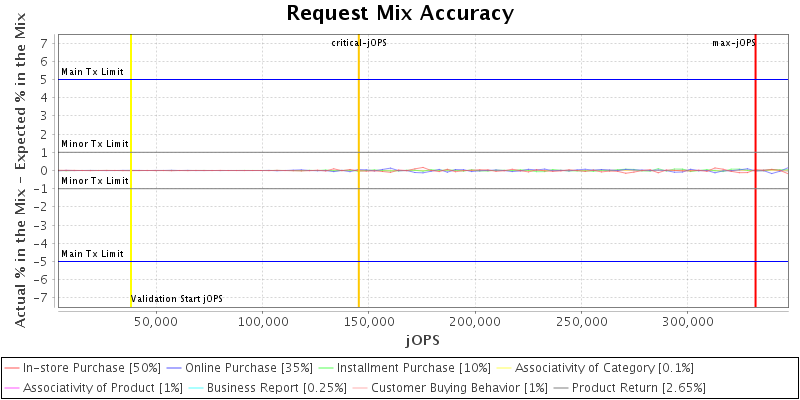

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

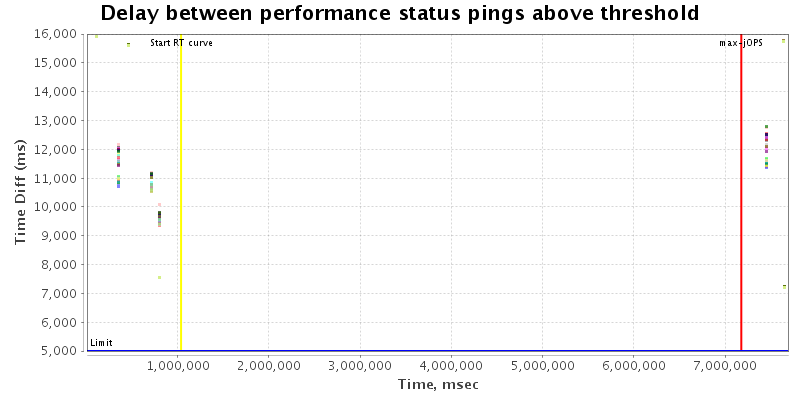

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 1
specjbb.comm.connect.timeouts.connect 60000 700000
specjbb.comm.connect.timeouts.read 60000 700000
specjbb.comm.connect.timeouts.write 60000 700000
specjbb.comm.connect.worker.pool.max 256 111
specjbb.comm.connect.worker.pool.min 1 64
specjbb.customerDriver.threads 64 {=64, probe=64, saturate=64}
specjbb.forkjoin.workers 255 {Tier1=224, Tier2=72, Tier3=32}
specjbb.group.count 1 16
specjbb.mapreducer.pool.size 255 4
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 381403 IR
High-bound (settled) is 347684 IR
