KTNF KR570S1 55364 SPECjbb2015-Composite max-jOPS
36012 SPECjbb2015-Composite critical-jOPS
Tested by: Telecommunications Technology Association Test Sponsor: Telecommunications Technology Association Test location: TTA, Seongnam-city, Korea Test date: Jul 19, 2019
SPEC license #: A83 Hardware Availability: Apr-2019 Software Availability: Apr-2019 Publication: Fri Aug 23 12:23:16 EDT 2019
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorKTNF
Vendor URLhttp://ktnf.co.kr/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores18
Total Threads36
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameKR570S1
VendorKTNF
Vendor URLhttp://www.ktnf.co.kr
AvailableApr-2019
ModelKR570S1
Form Factor1U
CPU NameIntel Xeon Gold 6154
CPU Characteristics18Core, 3.00GHz, 24.75MB L3 Cache (Turbo Boost Technology up to 3.70 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System18
Cores Per Chip18
Threads Per System36
Threads Per Core2
VersionAmerican Megatrends Inc. KM-H620-103B-SA2 12/20/2018
CPU Frequency (MHz)3000
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache1024 KB (I+D) per core
Tertiary Cache25344 KB (I+D) on chip per chip
Other CacheNone
Disk1 x 480 GB SSD SATA
File SystemXFS
Memory Amount (GB)768
# and size of DIMM(s)12 x 64 GB
Memory Details12 x 64 GB 4Rx4 PC4-2666V-L
# and type of Network Interface Cards (NICs)2 x 1 Gbit NICs
Power Supply Quantity and Rating (W)800W Dual Redundant
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux Server 7.6 (Maipo)
VendorRed Hat
Vendor URLhttp://www.redhat.com/
Version3.10.0-957.12.1.el7.x86_64-default
AvailableOct-2018
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 8u212
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM, version 1.8.0_212
AvailableApr-2019
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • SELinux=enforcing
  • tuned-adm profile=throughput-performance
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -Xms430g -Xmx430g -Xmn410g -server -XX:+UseParallelOldGC -XX:+UseNUMA -XX:-UseAdaptiveSizePolicy
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 54655 55364 56074 56784 57494
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 27149 34496 36625 40931 43140 36012
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 2839 / 3549 - / 710 - / 710 - / 710 - / 710 - / 710
1000us 48976 / 49686 4259 / 4969 2129 / 2839 1420 / 2129 - / 710 - / 710
5000us 52525 / 53235 48976 / 49686 39749 / 26263 20584 / 21294 14906 / 15616 3549 / 1420
10000us 52525 / 53235 49686 / 50396 43298 / 44008 37619 / 38329 27682 / 25553 7808 / 1420
25000us 53235 / 53945 52525 / 53235 47557 / 48266 47557 / 46847 38329 / 31941 14196 / 1420
50000us 53235 / 53945 52525 / 53235 49686 / 50396 49686 / 48976 38329 / 35490 16325 / 1420
75000us 54655 / 53945 53235 / 53945 49686 / 50396 49686 / 48976 47557 / 37619 20584 / 1420
100000us 54655 / 55364 53235 / 53945 50396 / 51106 49686 / 50396 47557 / 41878 27682 / 1420
200000us 54655 / 55364 53235 / 53945 51815 / 52525 51815 / 52525 47557 / 44717 27682 / 17035
500000us 55364 / - 54655 / 55364 54655 / 55364 53945 / 54655 52525 / 53235 47557 / 42588
1000000us 55364 / - 55364 / - 55364 / - 55364 / - 55364 / - 51815 / 52525
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

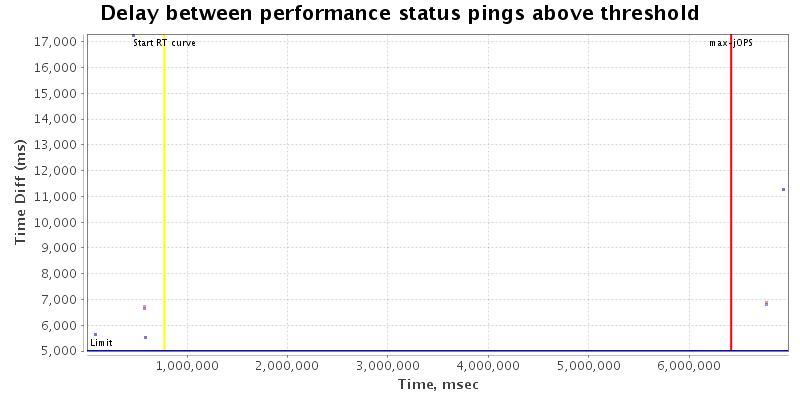

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
User did not set any property for this run

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 70980 IR
High-bound (settled) is 59167 IR
